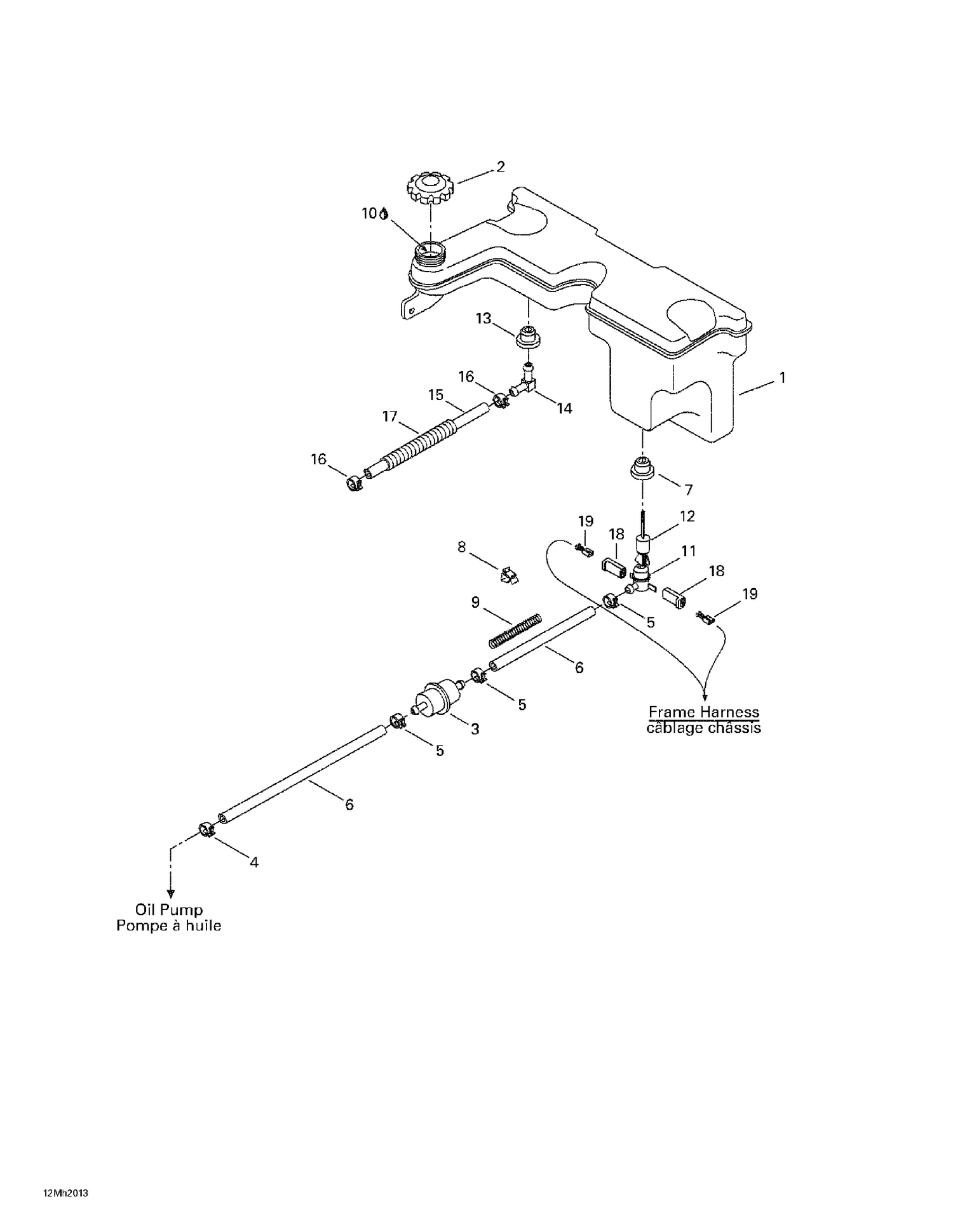

02- Oil Tank
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572088500 | Injection Oil Tank |
| 2 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 3 | 414536500 | Filter |
| 4 | 414420700 | Spring Clamp |
| 5 | 414415200 | Spring Clamp |
| 6 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 7 | 570023000 | Insulating Ring |
| 8 | 414227300 | Clip |
| 9 | 519000001 | Spring |
| 10 | 293600120 | OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 11 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 12 | 414681900 | Float |
| 13 | 709200285 | Grommet This part replaces 570135100. |
| 14 | 414580700 | Male Connector |
| 15 | 219704410 | Polyurethane Hose 10000Mm Long |
| 16 | 414554800 | Spring Clamp |
| 17 | 219704407 | Tubing 10 MM 1000MM Long |
| 18 | 409204800 | Female Terminal Housing (1 circuit) |
| 779120 | 2T | Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
