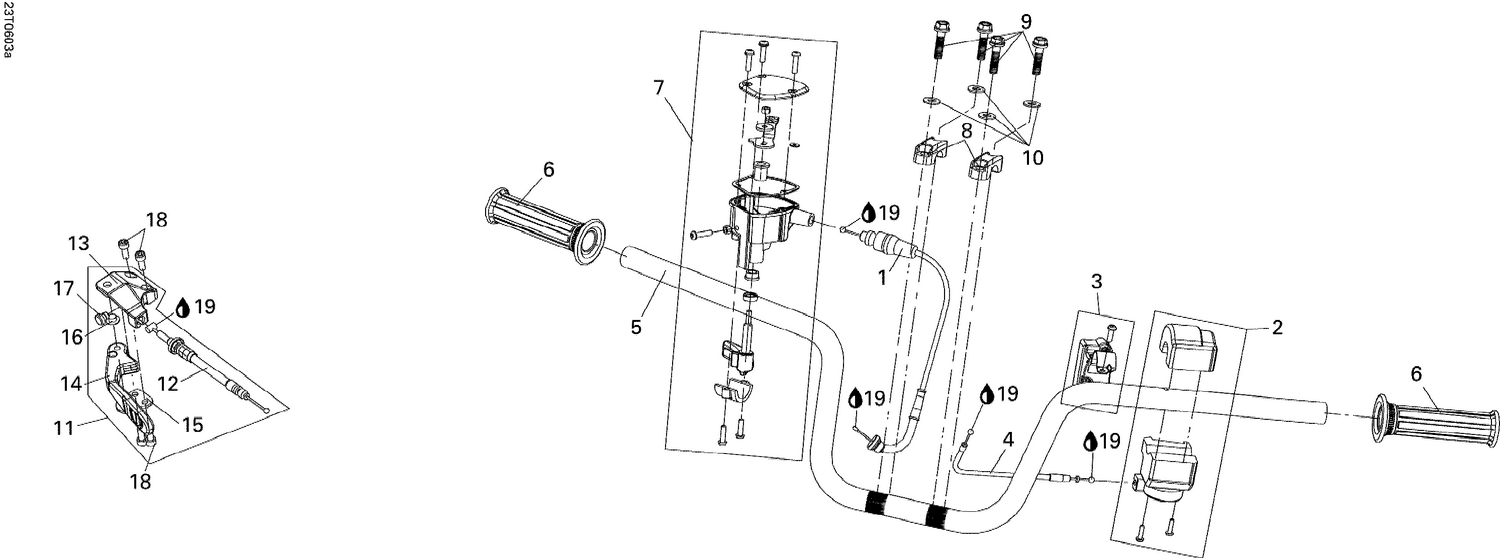

07- Handlebar
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S17910RCA000 | Throttle Cable |
| 2 | S35200RCA000 | MULTIFUNCTION SWITCH ASS'Y - Call your local BRP dealership |
| 3 | S35250RCA000 | Auxiliary Switch Ass'y |
| 4 | S44850RCA000 | Choke Cable |
| 5 | S53100RCA800 | Handle Bar This part replaces S53100RCA000. |
| 6 | S53166N01000 | Handle Grip |
| 7 | S53190RCA000 | Throttle Handle Ass'y |
| 8 | S53131RCA010 | Handle Bar Upper Clamp This part replaces S53131RCA000. |
| 9 | S958010803507 | Flanged Bolt M8 X 35 |
| 10 | S9410108700 | Washer 8 mm |
| 11 | NASP/NDPR | Not Available As Spare Parts |
| 12 | S45450RCA000 | PARKING BRAKE CABLE - Call your local BRP dealership |
| 13 | S53170RCA000 | PARKING BRAKE LEVER HOUSING - Call your local BRP dealership |
| 14 | S53171RCA000 | PARKING BRAKE LEVER - Call your local BRP dealership |
| 15 | S53172RCA000 | PARKING LEVER HINGE - Call your local BRP dealership |
| 16 | S53173RCA000 | Charnière De Levier Frein Stationnement - Appelez votre concessionnaire BRP local |
| 17 | S53174RCA000 | Rubber Stopper |
| 18 | S967000601607 | Socket Bolt M6 X 16 |
