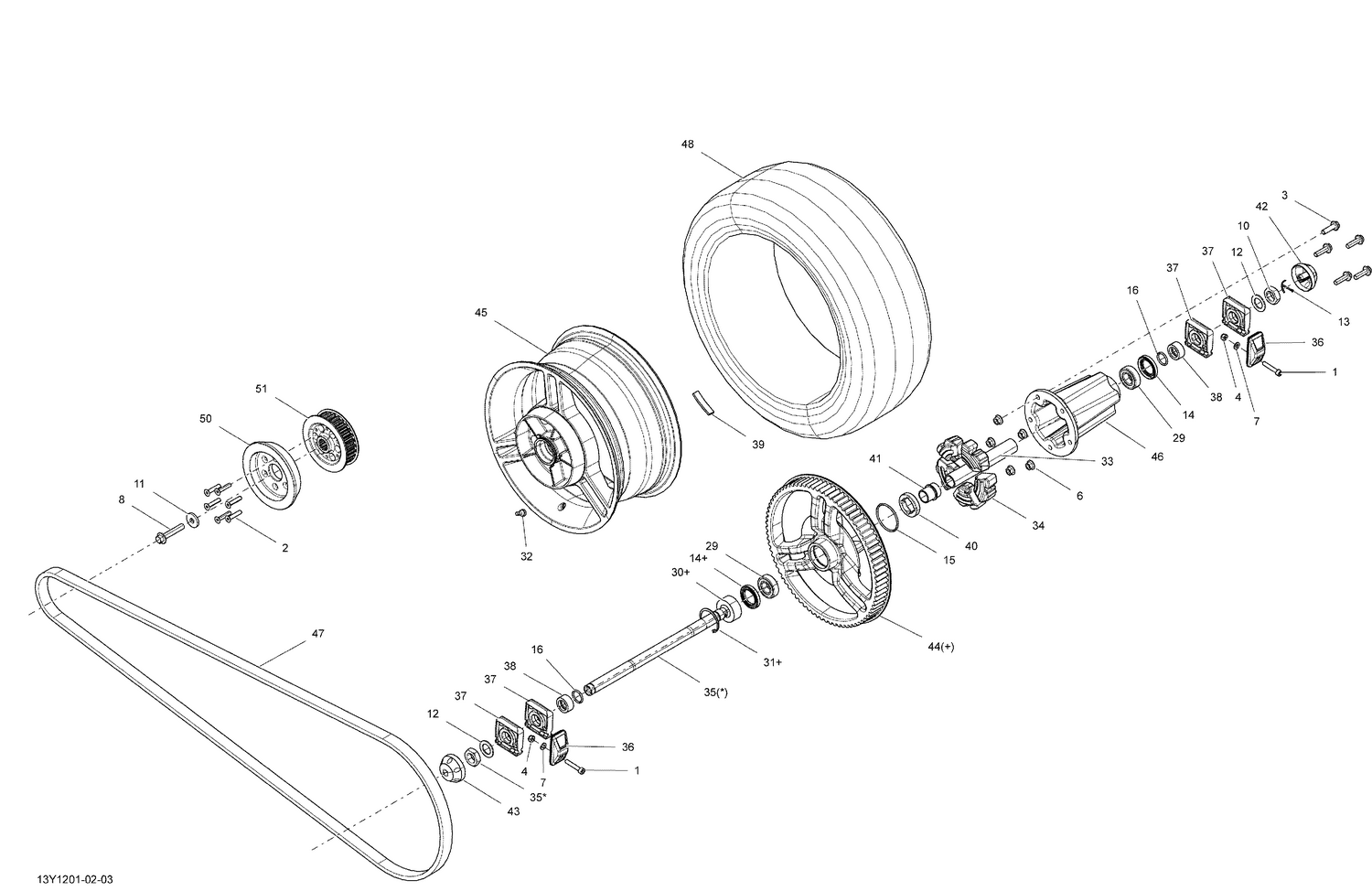

08- Drive System, Rear
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250000514 | SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
| 2 | 205884046 | Socket Screw M8 X 40, Scotch Grip |
| 3 | 207503544 | Hex. Flange Screw M10 X 35 |
| 4 | 250100141 | Hex. Elastic Nut M8 |
| 6 | 233101414 | Hex. Flange Nut M10 |
| 7 | 234081410 | Flat Washer 8 mm |
| 8 | 250001017 | Hex Flange Screw DIN.6921 S.Grip This part replaces 250000250. |
| 10 | 250100103 | Hex. Jam Nut M24 |
| 11 | 250200052 | Washer |
| 12 | 250200093 | FLAT WASHER - Call your local BRP dealership |
| 13 | 250400047 | Cotter Pin |
| 14 | 293200094 | Seal |
| 15 | 293300124 | O-Ring |
| 16 | 293300131 | O-Ring |
| 29 | 293350115 | Ball Bearing This part replaces 293350067. |
| 30 | 293350065 | Double Row Bearing |
| 31 | 293370053 | Circlip |
| 32 | 705400193 | Rim Valve With Cap |
| 33 | 705500583 | SPACER - Call your local BRP dealership |
| 34 | 705503473 | Shock Absorber Bushing This part replaces 705500736. |
| 35 | 705501691 | Rear Wheel Axle This part replaces 705500746. |
| 36 | 705502450 | Adjustment Support This part replaces 705501431. |
| 37 | 705502448 | Sliding Block This part replaces 705500770. |
| 38 | 705500773 | SPACER - Call your local BRP dealership |
| 39 | 705502106 | Self Adhesive Weight, 5G 20mm This part replaces 705501430. |
| 40 | 705500852 | NUT - Call your local BRP dealership |
| 41 | 705500853 | Spacer |
| 42 | 705501022 | RH Cap |
| 43 | 705501081 | LH Cap |
| 47 | 705501576 | Drive Belt |
| 48 | 705503310 | Rear Tire 225/50R15 This part replaces 705501464. |
| 50 | 705501250 | FLYWHEEL - Call your local BRP dealership |
