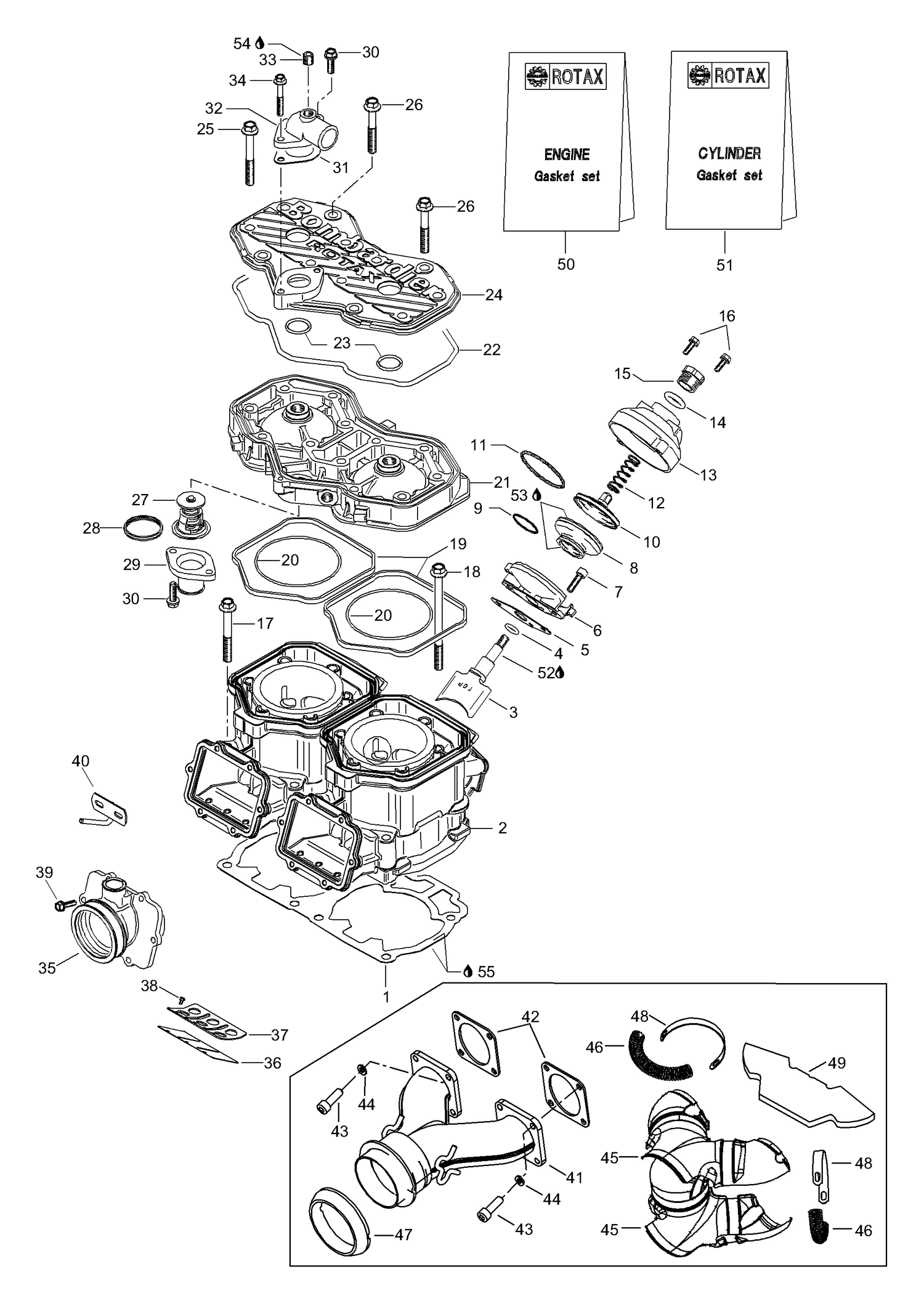

01- Cylinder

01- Cylinder

Parts (55)

RefPart NumberDescription
1 420431160 Double Gasket 0.5 mm This part replaces 420931893.
1 420431161 Double Gasket 0.6 mm This part replaces 420931892.
1 420431162 Double Gasket 0.7 mm This part replaces 420931894.
1 420431163 Double Gasket 0.8 mm This part replaces 420931895.
2 420613710 NICASIL CYLINDER - Call your local BRP dealership
3 420854650 Exhaust valve
4 420430110 O-Ring
5 420931542 Gasket
6 420854455 Valve rod housing
7 205062544 Allen Screw M6 x 25 This part replaces 420840861.
8 420260729 Bellows
9 420838255 Hose Spring This part replaces 420838253.
10 420854449 Exhaust valve piston
11 420939281 Hose Spring This part replaces 420239048.
12 420239954 Spring This part replaces 420239944.
13 420911559 Valve Cover This part replaces 420911558.
14 420430220 O-ring
15 420241221 Adjuster screw This part replaces 420241220.
16 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
17 420640524 Screw M10 x 80
18 420640534 Screw M10 x 120
19 420931590 Square ring
20 293300026 O-Ring This part replaces 420850540.
21 420613700 CYLINDER HEAD, SILVER - Call your local BRP dealership
22 420950320 O-ring
23 420430782 O-ring
24 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
25 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
26 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
27 420922519 Thermostat This part replaces 420922518.
28 420931272 Thermostat gasket
29 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
30 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
31 420850339 Gasket This part replaces 420850338.
32 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
33 420240480 PLUG SCREW - Call your local BRP dealership
34 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
36 420924680 Reed pedal
37 420924695 Reed pedal stop
38 420941215 Screw M3 x 5
39 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
40 512059504 Hook
41 420973592 Exhaust manifold
42 420850552 Gasket
43 40052 Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership
44 20014 Lock washer
45 514053593 Enveloppe, manif. exh.
46 514053643 Spring
47 514053487 Exhaust Gasket
48 514053603 RETAINING STRAP - Call your local BRP dealership
49 514053588 INSULATING WOOL - Call your local BRP dealership
50 420889931 Engine Gasket Set This part replaces 420889922.
51 420889936 Cylinder Gasket Set This part replaces 420889926.
52 420297433 Molykote G-N Slide paste
54 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
