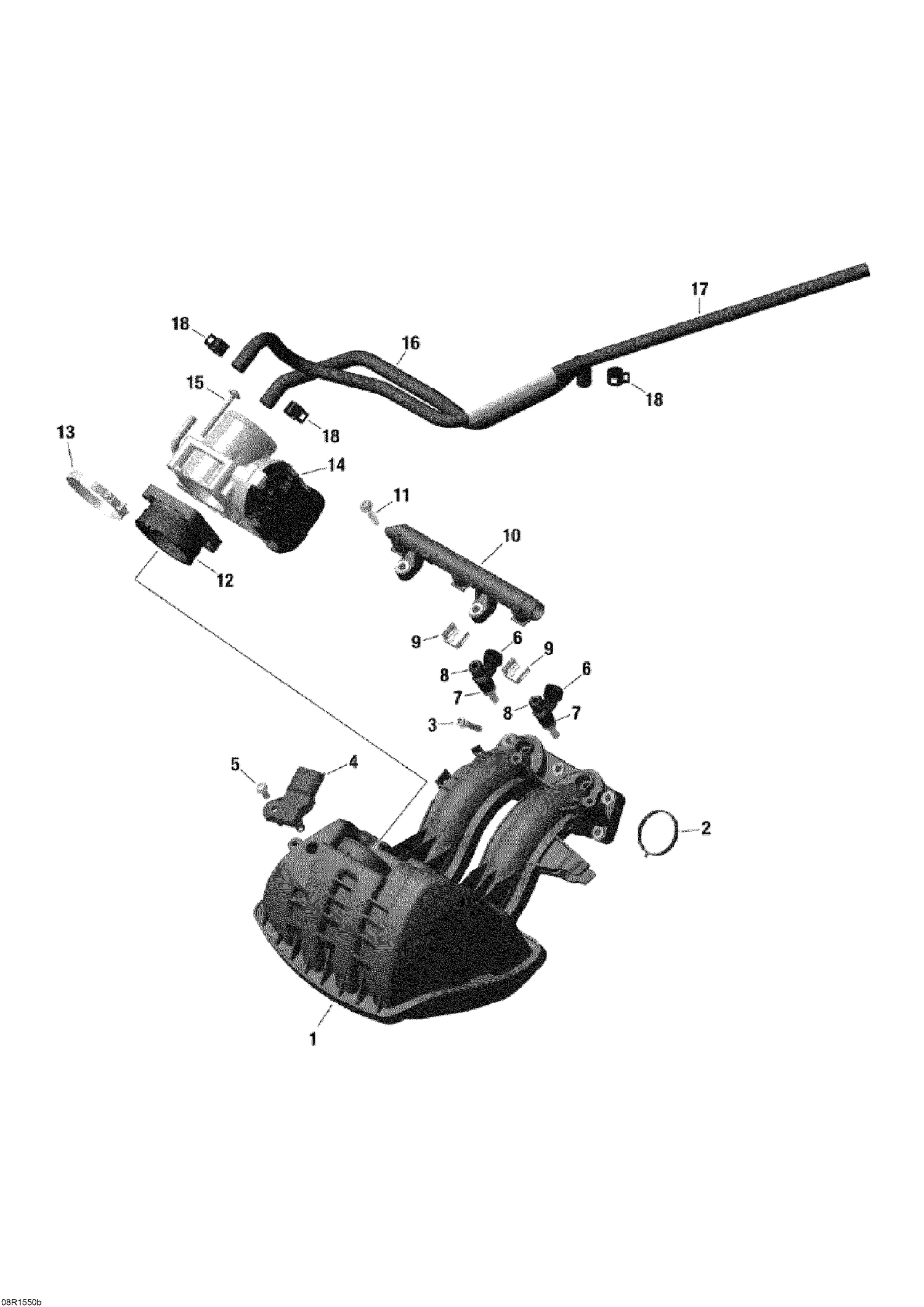

02- Air Intake Manifold (iTC) _08R1550b
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 707000995 | Pressure And Temperature Sensor |
| 5 | 420641588 | Torx Flange Screw M6 X 16 |
| 9 | 420853030 | Injector Clip |
| 10 | 420874961 | Fuel Rail This part replaces 420874960. |
| 11 | 420441575 | Torx Screw 6X30 This part replaces 420441573. |
| 12 | 420867110 | Intake Neck |
| 13 | 420251830 | Hose Clamp |
| 14 | 420893148 | Throttle Body |
| 15 | 420441588 | Torx Flange Screw M6 X 50 |
| 16 | 420201490 | Molded Hose |
| 17 | 420201495 | MOLDED HOSE - Call your local BRP dealership |
