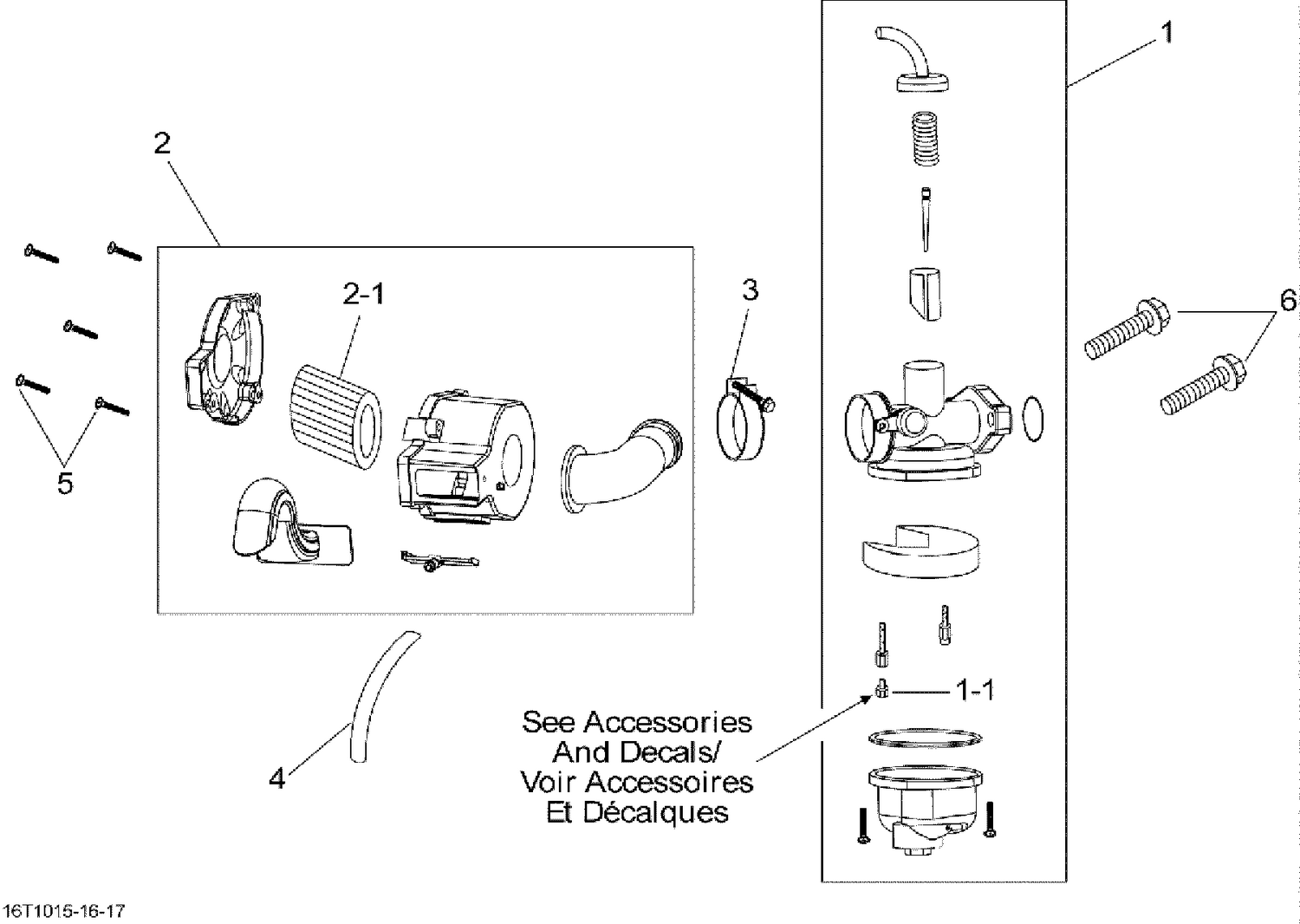

02- Carburetor And Air Cleaner
Parts (5)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V16100DGF000LL | Carburator Ass'y |
| 2 | V17200DGF050LL | Air Silencer Ass'y |
| 3 | V17208DGF010 | Clamp |
| 4 | Not | Available As Spare Part - |
| 5 | V9300005016010LL | ROUND HEAD BOLT - Call your local BRP dealership This part replaces V930000501601. |
