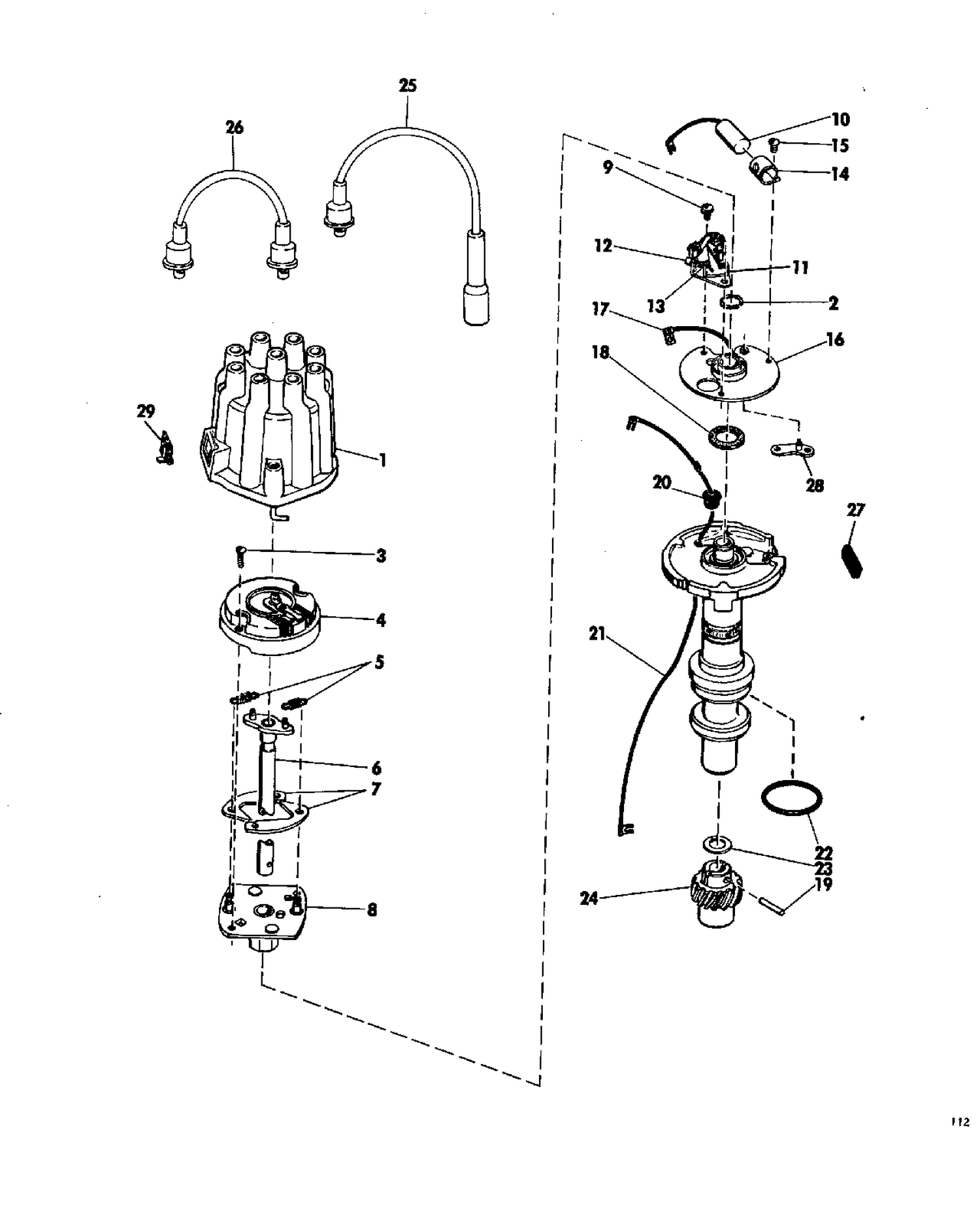

| Ref | Part Number | Description |
|---|
| 1 |
0312732 |
CAP,Distributor |
| 2 |
0311706 |
SPRING, Breaker plate |
| 3 |
0311725 |
SCREW |
| 4 |
0381711 |
ROTOR ASSEMBLY |
| 5 |
0312733 |
SPRING,Weight |
| 6 |
0312734 |
SHAFT |
| 7 |
0311722 |
WEIGHT |
| 8 |
0313118 |
CAM |
| 9 |
0311720 |
SCREW AND LOCKWAHSER |
| 10 |
0382125 |
CONDENSER ASSEMBLY |
| 11 |
0380543 |
CONTACT POINT ASSEMBLY |
| 12 |
0311719 |
SCREW, Contact adjusting |
| 13 |
0311716 |
SPRING, Contact adjusting |
| 15 |
0311718 |
SCREW & LOCKWASHER, Weight hold down |
| 16 |
0382126 |
BREAKER PLATE ASSEMBLY |
| 17 |
0311715 |
LEAD, Breaker plate |
| 18 |
0311714 |
WASHER, Felt |
| 19 |
0311707 |
PIN, Gear |
| 20 |
0311712 |
GROMMET |
| 21 |
0313114 |
LEAD, Primary |
| 22 |
0311710 |
O-RING HOUSING |
| 23 |
0311709 |
THRUST WASHER |
| 24 |
0311708 |
GEAR Drive |
| 25 |
0580545 |
LEAD ASSEMBLY, Distributor to coil |
| 26 |
0580546 |
LEAD ASEMBLY,Spark plug #1 |
| 26 |
0580662 |
LEAD ASSEMBLY,Spark plug #2,#4,#7 |
| 26 |
0580663 |
LEAD ASSEMBLY,Spark plug #3,#5 |
| 26 |
0580664 |
LEAD ASSEMBLY,Spark plug #6,#8 |
| 27 |
0313090 |
SEAL, Cap to base |
| 28 |
0382073 |
BRACKET & PIN ASSEMBLY |
| 0382075 |
0382075 |
DISTRIBUTOR VENTILATION KIT |
| 0382127 |
0382127 |
DISTRIBUTOR ASSEMBLY,Complete |
