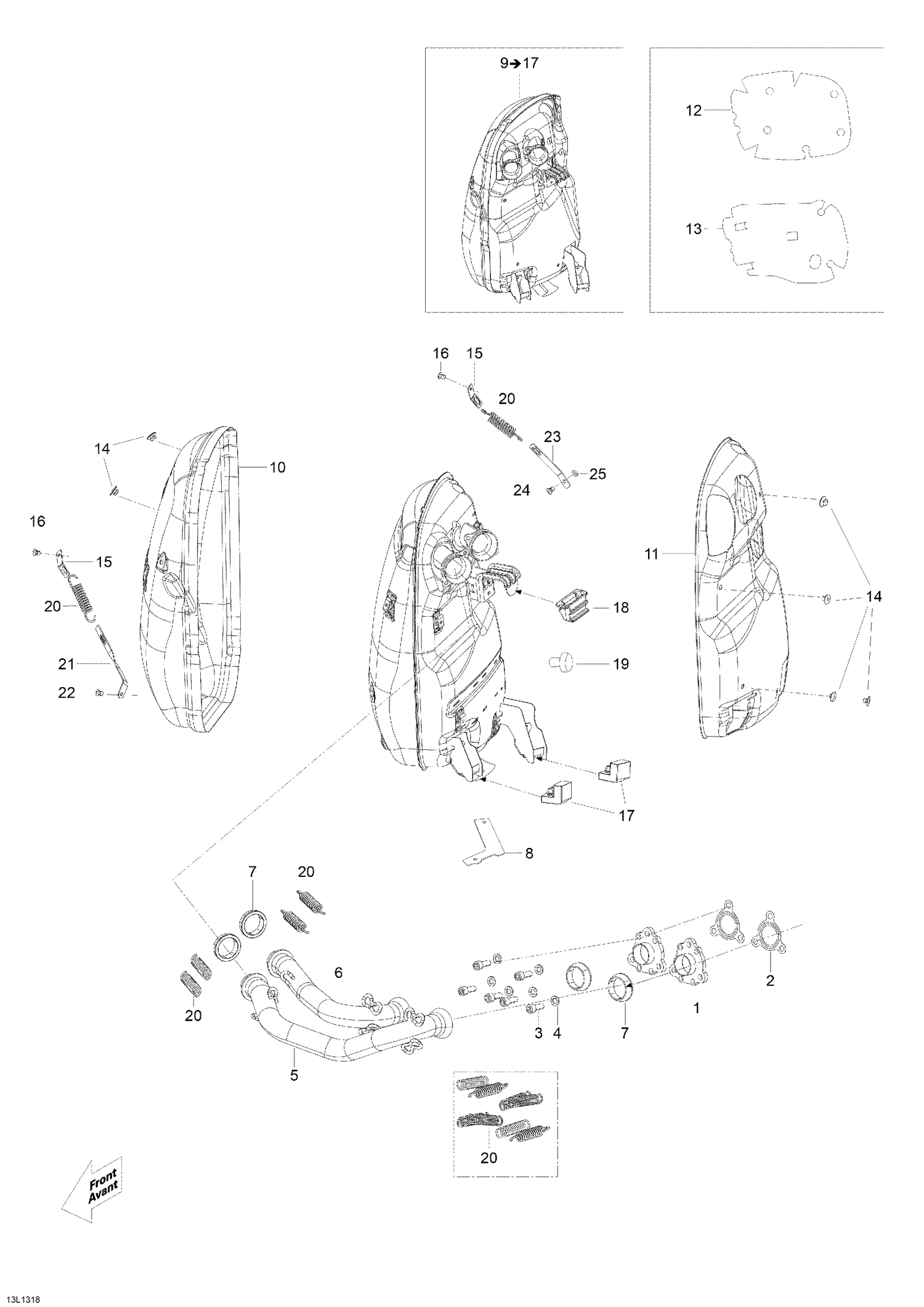

01- Exhaust System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514054673 | Exhaust Manifold |
| 2 | 514055112 | Gasket This part replaces 514054714. |
| 3 | 250000414 | Socket Head Screw M8 x 22 |
| 4 | 250200111 | Washer |
| 5 | 514054625 | Exhaust Tube, PTO Side |
| 6 | 514054731 | Exhaust Tube, MAG Side |
| 7 | 514054807 | Exhaust Gasket |
| 8 | 514054819 | Protector |
| 10 | 514055325 | RH Heat Shield This part replaces 514054644. |
| 11 | 514054645 | Heat Shield LH |
| 12 | 514054769 | Insulating Wool RH |
| 13 | 514054770 | Insulating Wool LH |
| 14 | 390910000 | Pop Rivet 3/16 |
| 15 | 514054522 | Spring Bracket |
| 16 | 390909200 | Avex Rivet |
| 17 | 514054496 | Lower Stopper |
| 18 | 514054737 | Upper Stopper |
| 19 | 514053654 | Rubber Bumper |
| 20 | 415107100 | Spring |
| 21 | 514055030 | Spring Bracket This part replaces 514054620. |
| 22 | 390909100 | Avex Rivet |
| 23 | 514054522 | Spring Bracket |
| 24 | 390909100 | Avex Rivet |
