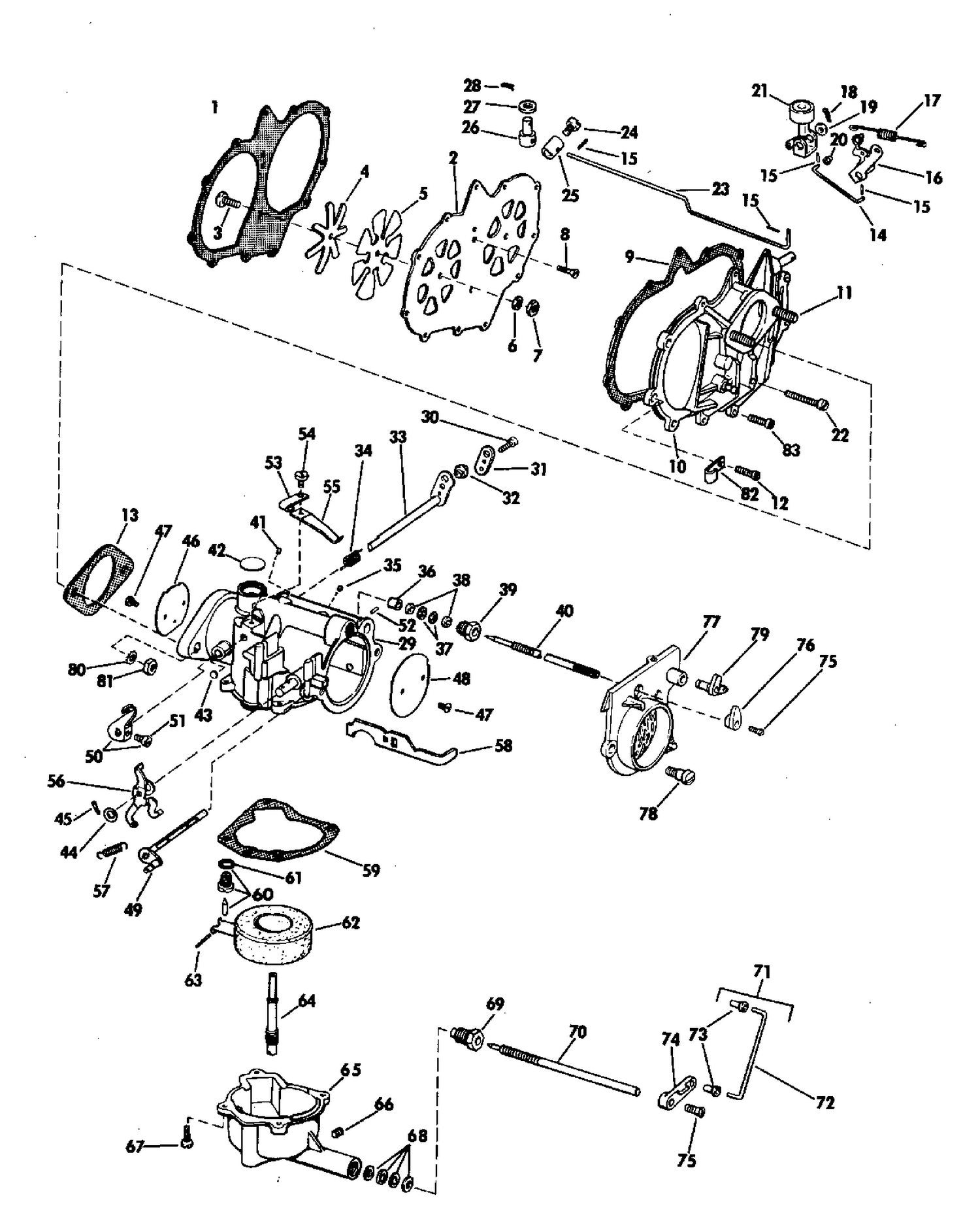

| Ref | Part Number | Description |
|---|
| 1 |
0311365 |
GASEKT, Leaf plate to c'case |
| 4 |
0304709 |
STOP , Leaf |
| 5 |
0308938 |
LEAF |
| 9 |
0311364 |
GASKET, Lead plate to manifold |
| 10 |
0380251 |
INTAKE MANIFOLD & STUD ASSY |
| 11 |
0302822 |
STUD |
| 12 |
0304888 |
SCREW |
| 13 |
0302598 |
GASKET, Carb. mtg |
| 14 |
0312262 |
LINK, Throttle lever to cam follower |
| 15 |
0307565 |
PIN |
| 16 |
0376478 |
THROTTLE LEVER & PIN |
| 17 |
0307408 |
SPRING |
| 19 |
0301827 |
WASHER |
| 20 |
0304216 |
BUSHING |
| 21 |
0376477 |
CAM FOLLOWER |
| 22 |
0307878 |
SCREW, Long |
| 23 |
0307824 |
ROD, Thottle control |
| 24 |
0304221 |
SCEW,Collar to cable |
| 25 |
0304222 |
COLLAR |
| 26 |
0304226 |
PIN, Pivot |
| 27 |
0551953 |
WASHER |
| 29 |
0382653 |
BODY ASSY |
| 50 |
0376727 |
THROTTLE LEVER & SCREW ASSY |
| 53 |
0302792 |
SPRING, Small |
| 54 |
0306479 |
SCREW |
| 55 |
0302722 |
SPRING, Choke control |
| 56 |
0376258 |
BELLCRANK & PIN ASSEMBLY |
| 57 |
0304111 |
SPRING |
| 58 |
0305504 |
ROD, Choke |
| 59 |
0303750 |
GAKSET, Float bowl |
| 62 |
0375792 |
FLOAT & FLOAT ARM |
| 64 |
0312927 |
NOZZLE, High speed |
| 65 |
0312929 |
CHAMBER, Float |
| 66 |
0303041 |
SCREW |
| 70 |
0305505 |
NEEDLE VALVE, High speed |
| 71 |
0377916 |
LINK & BUSHING ASSY |
| 74 |
0307442 |
ARM, Needle valve |
| 75 |
0551517 |
SCREW |
| 76 |
0305442 |
ADJUSTING KNOB |
| 77 |
0379221 |
CONTROL PANEL ASSY |
| 79 |
0381853 |
ADJUSTING KNOB & SHAFT |
| 80 |
0306799 |
L'WASHER,Bracket to hsg. |
| 81 |
0306320 |
NUT |
| 0380243 |
0380243 |
LEAD PLATE ASSEMBLY |
| 0382655 |
0384917 |
CARBURETOR ASSY This part replaces 0382655. |
