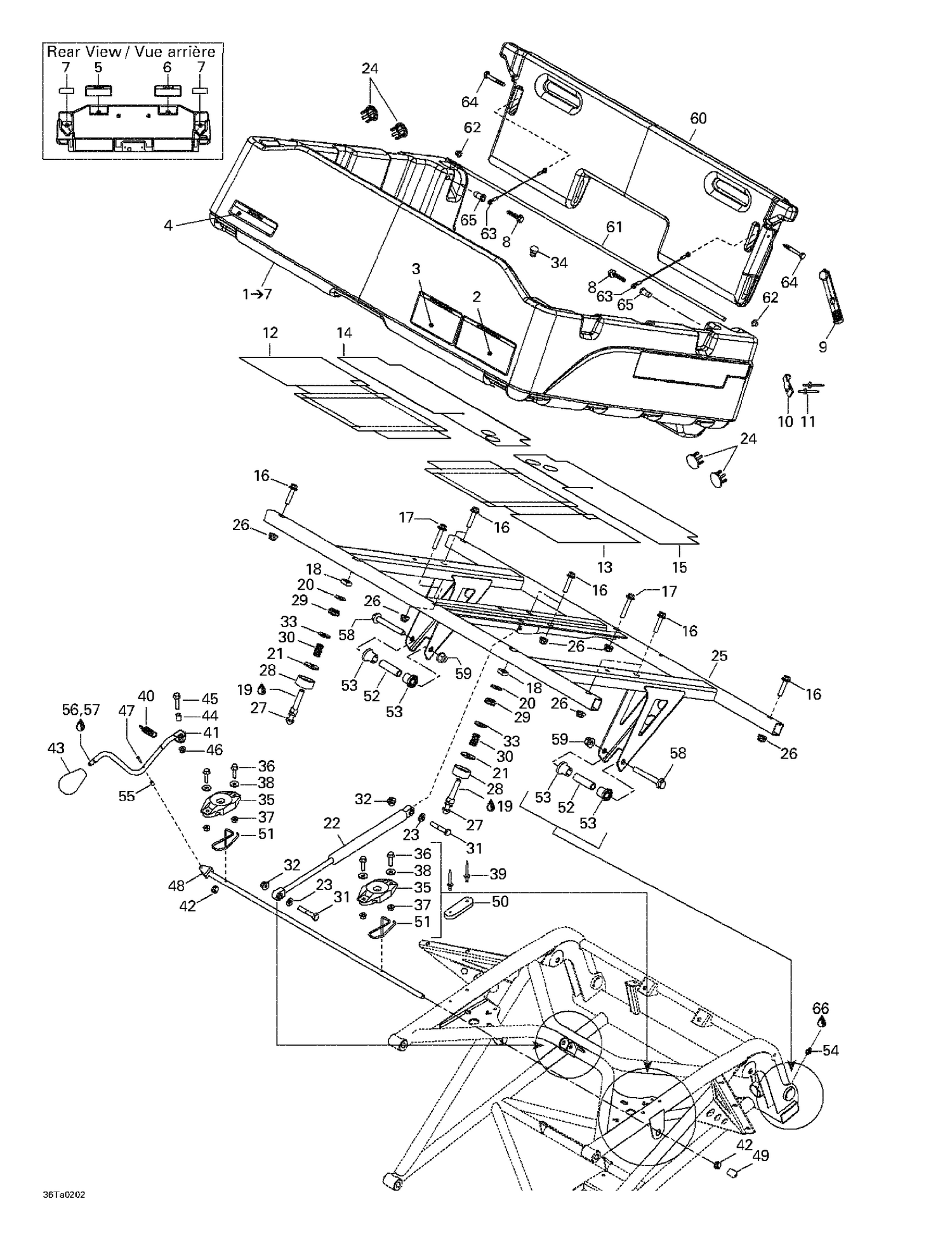

09- Rear Cargo Box
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 704900132 | Warning Label (English) |
| 3 | 704900133 | Warning Label (Tire Pressure) |
| 4 | 704900134 | Warning Label (English) |
| 5 | 704900137 | Warning Label (English) |
| 6 | 704900138 | Warning Label (English) |
| 7 | 704900128 | REAR REFLECTOR - Call your local BRP dealership |
| 8 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 9 | 705000297 | Panel Bracket |
| 10 | 291000166 | LATCH SUPPORT - Call your local BRP dealership |
| 11 | 293150023 | RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 12 | 705000313 | RH Heat Shield |
| 13 | 705000318 | LH Heat Shield |
| 14 | 705000316 | RH Heat Shield |
| 15 | 705000319 | LH Heat Shield |
| 16 | 207683044 | Hex. Flange Screw M8 X 30 |
| 17 | 207685044 | Hex. Flange Screw M8 X 50 |
| 18 | 232802412 | Square Nut M10 |
| 19 | 293800060 | Loctite 243, 10 ml |
| 20 | 503175800 | Washer |
| 21 | 506148100 | WASHER - Call your local BRP dealership |
| 22 | 705000261 | Gas Shock |
| 23 | 234081410 | Flat Washer 8 mm |
| 24 | 293000096 | PROTECTOR CAP - Call your local BRP dealership |
| 25 | 705000244 | Box Support (Black) |
| 26 | 233281414 | Hex. Flange Elastic Nut M8 |
| 27 | 291000664 | Stud Latch |
| 28 | 293830025 | Rubber Pad |
| 29 | 211100009 | RUBBER WASHER - Call your local BRP dealership |
| 30 | 705000307 | Spring |
| 31 | 207084544 | Hex. Screw M8 X 45 |
| 32 | 233281414 | Hex. Flange Elastic Nut M8 |
| 33 | 250200014 | Flat Washer M10 |
| 34 | 705000323 | Cap |
| 35 | 708000034 | Latch Base |
| 36 | 207662544 | Hex. Flange Screw M6 X 25 |
| 37 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 38 | 234062600 | Flat Washer M6, Stainless |
| 39 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 40 | 705600098 | BREAK PEDAL SPRING - Call your local BRP dealership |
| 41 | 705000253 | Lever, black |
| 42 | 705000292 | SLEEVE - Call your local BRP dealership |
| 43 | 705500022 | LEVER BUTTON - Call your local BRP dealership |
| 44 | 293900078 | Sleeve This part replaces 708000084. |
| 45 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 47 | 293150084 | ROUND HEAD RIVET - Call your local BRP dealership |
| 48 | 705000289 | CENTRAL TUBE, BLACK - Call your local BRP dealership |
| 49 | 705000300 | CAP - Call your local BRP dealership |
| 50 | 705000299 | Rubber Support |
| 51 | 705000259 | SPRING - Call your local BRP dealership |
| 52 | 706200061 | Internal Bushing |
| 53 | 706200063 | Cushion |
| 54 | 408200700 | Grease Fitting |
| 55 | 705000305 | RING HOLDER - Call your local BRP dealership |
| 56 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 57 | 293800060 | Loctite 243, 10 ml |
| 58 | 207607546 | Hex. Flange Screw M10 X 75 |
| 59 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 60 | 705000220 | Panel |
| 61 | 705000294 | Pivot Tube, black |
| 62 | 250100026 | Pushnut Cap Type 3/8 |
| 63 | 705000296 | PANEL CABLE - Call your local BRP dealership |
| 64 | 243164560 | PLASTITE SCREW HEX. M6.81 X 45 - Call your local BRP dealership |
| 65 | 732610057 | JACK NUT M6 - Call your local BRP dealership |
