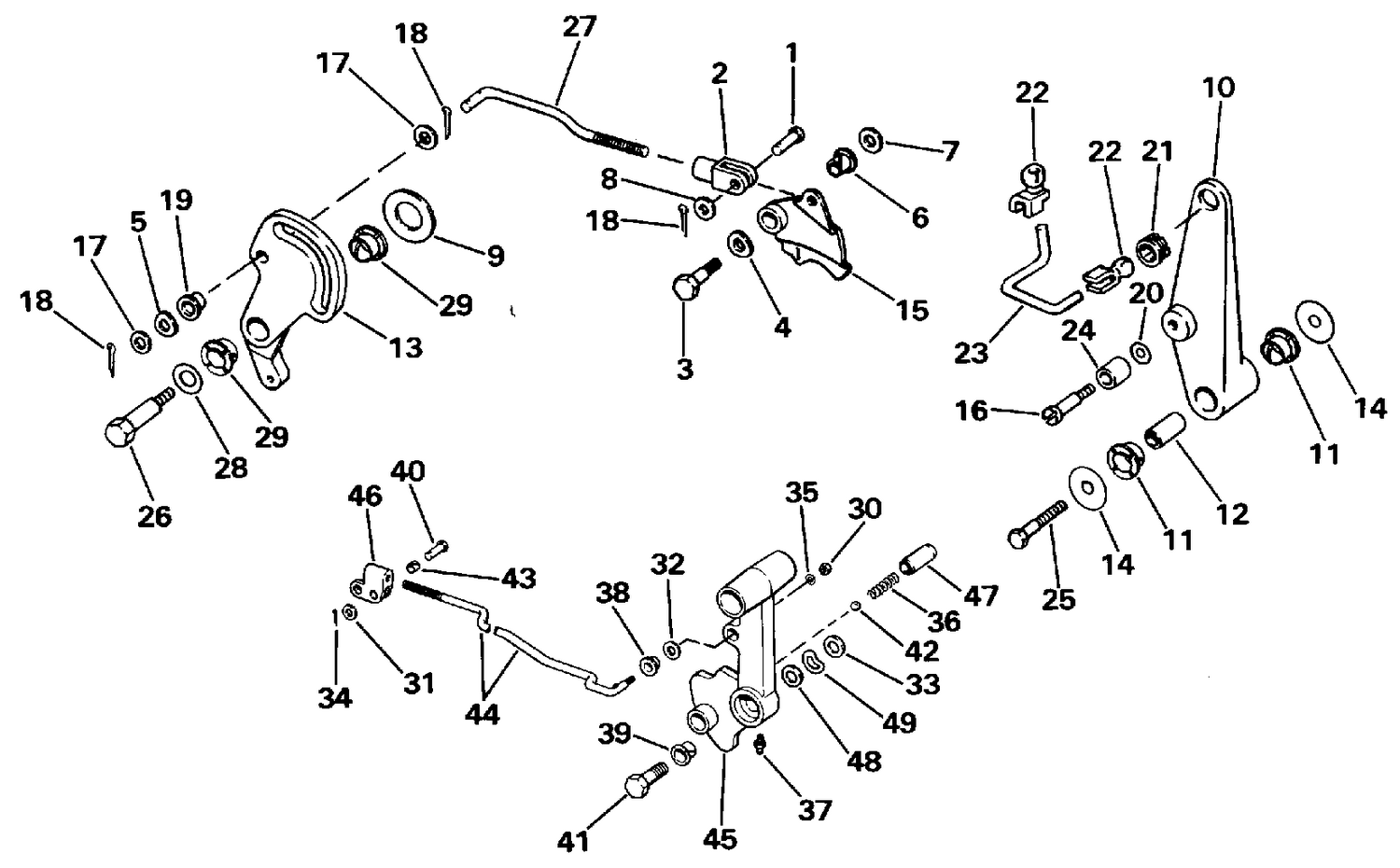

| Ref | Part Number | Description |
|---|
| 5 |
0204757 |
BOW WASHER |
| 9 |
0908398 |
WASHER |
| 10 |
0329673 |
LEVER, Spark advance |
| 12 |
0329679 |
SLEEVE, Advance lever |
| 13 |
0439834 |
LEVER, Throttle control This part replaces 0329674. |
| 15 |
0329702 |
THROTTLE CAM This part replaces 0319835. |
| 16 |
0329677 |
SCREW, Roller |
| 20 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 21 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 22 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 23 |
0329682 |
ROD, Lever to cam |
| 24 |
0432572 |
ROLLER & SLEEVE ASSY This part replaces 0329676. |
| 25 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 26 |
0206409 |
PIVOT SCREW |
| 27 |
0329680 |
ROD, Lever to cam |
| 28 |
0127386 |
RONDELLE This part replaces 0303913. |
| 32 |
0303887 |
WASHEER, Pin to swivel bracket |
| 33 |
0127386 |
RONDELLE This part replaces 0303913. |
| 36 |
0309247 |
RESSORT |
| 39 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 42 |
0318626 |
BILLE |
| 43 |
0320302 |
BUSHING, Laink to lever |
| 44 |
0325471 |
SHIFT ROD |
| 45 |
0330202 |
SHIFT LEVER |
| 46 |
0330337 |
YOKE, Shift rod |
| 47 |
0327178 |
GUIDE |
