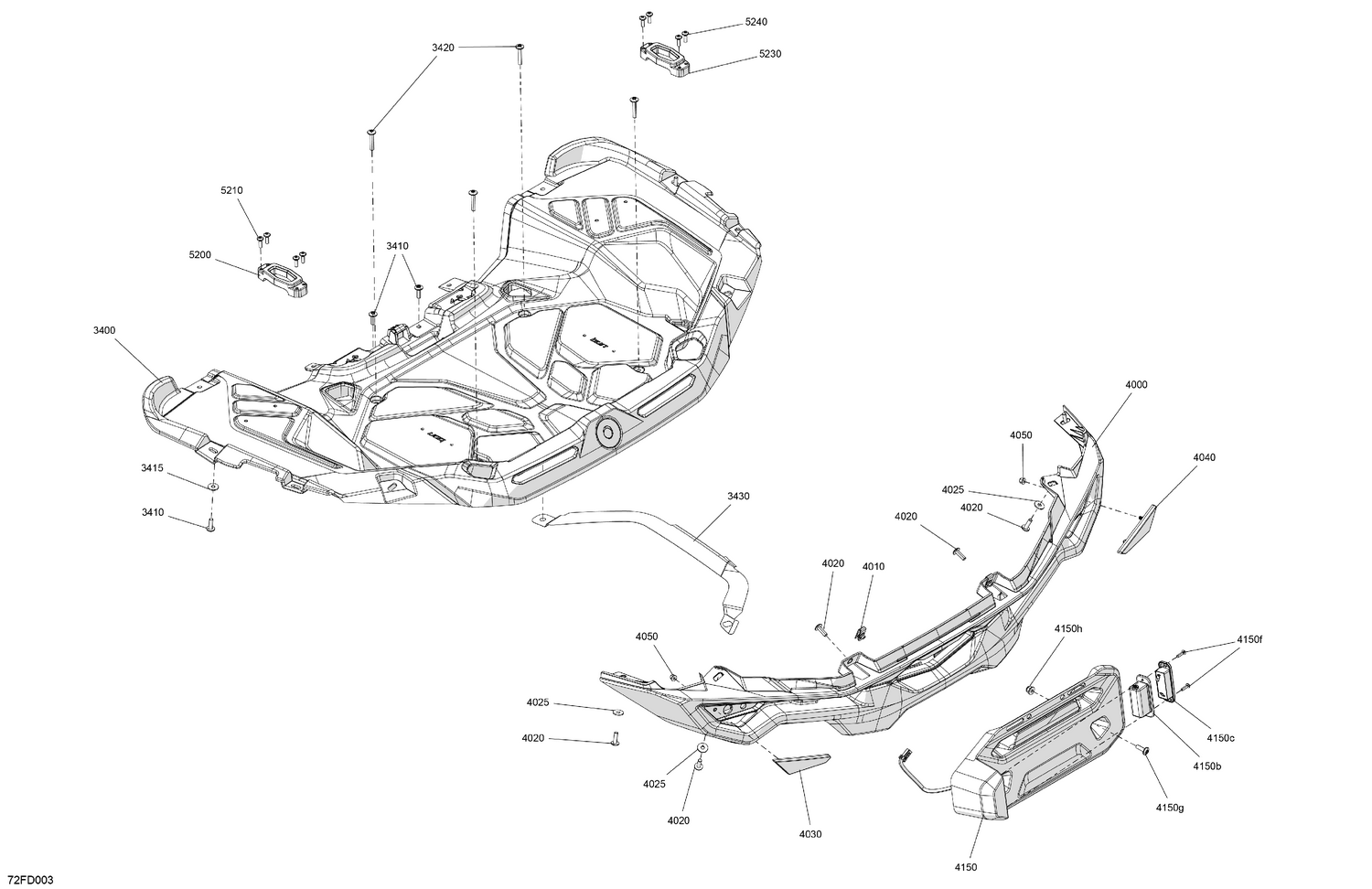

07- Body - Rear Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 3400 | 715009542 | Rear Multi Purpose Support Kit |
| 3410 | 250001257 | Screw Torx M6 X 20 |
| 3415 | 234062410 | Flat Washer 6 mm |
| 3420 | 250001258 | Screw Torx M6 X 35 |
| 3430 | 705018564 | Heat Shield |
| 4000 | 705014833 | Rear Light Support |
| 4010 | 250100198 | Panel Nut M6 X 1.0 |
| 4020 | 250001000 | Torx-Truss M/S M6 X 25 |
| 4025 | 234062410 | Flat Washer 6 mm |
| 4030 | 705014922 | Red, LH Rear Reflector |
| 4040 | 705014923 | Red, RH Rear Reflector |
| 4050 | 233251434 | Flange Elastic Nut M5 |
| 4150b | 710008469 | Rear Connector Guard |
| 4150c | 710005501 | License Light |
| 4150f | 250000287 | Flange Torx Screw K40 X 16 |
| 4150g | 250000722 | Torx Screw M6 X 20 |
| 4150h | 233261466 | Hex. Flange Elastic Nut M6 |
| 5200 | 715002350 | Linq Base Kit |
| 5210 | 250000720 | Torx Screw K50 X 16 |
| 5230 | 715002350 | Linq Base Kit |
