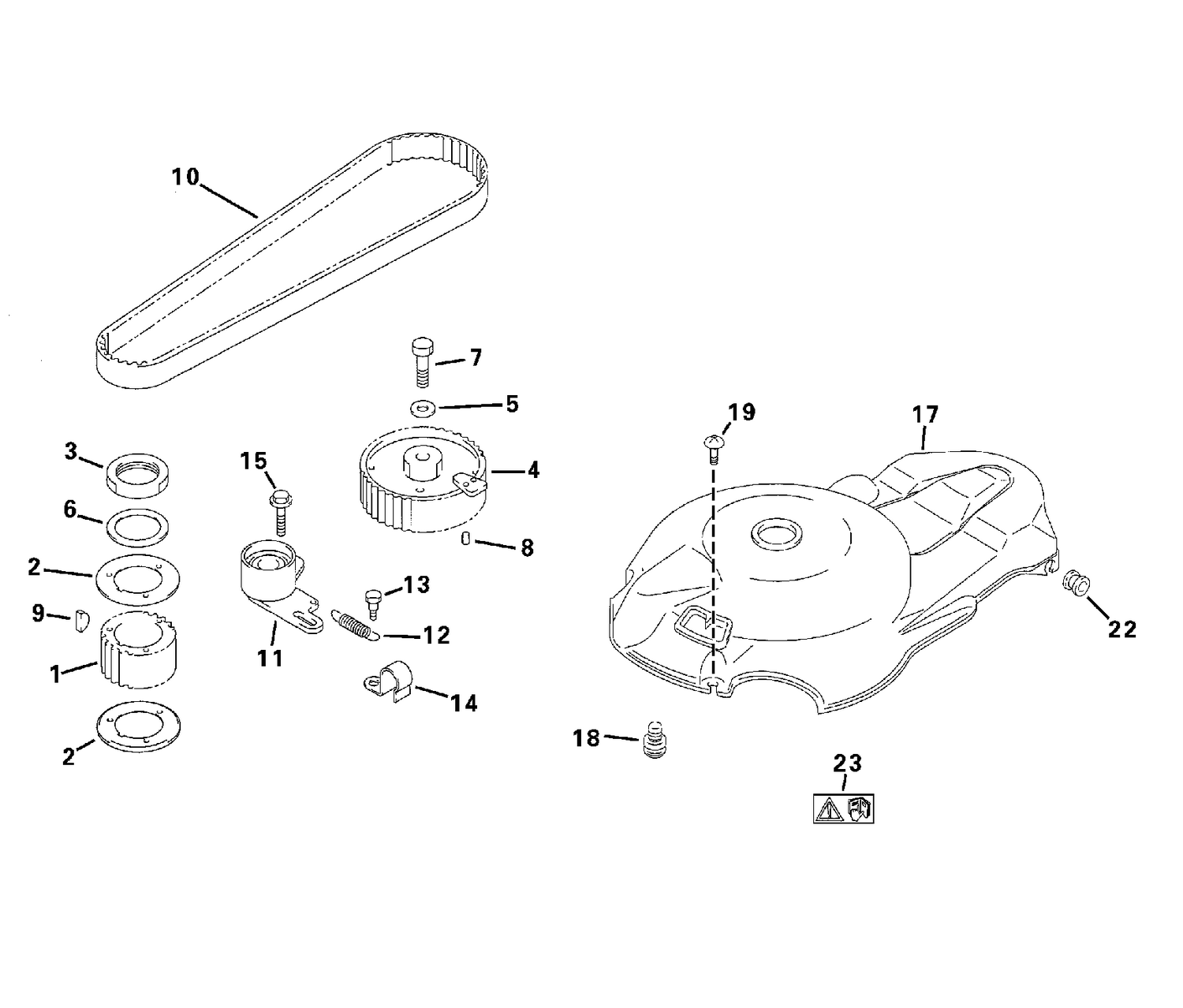

PULLEY & TIMING
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5005436 | KIT, Pulley and guide This part replaces 5030654. |
| 3 | 5030656 | NUT, Pulley |
| 4 | 5030659 | PULLEY, Camshaft timing |
| 5 | 5030439 | WASHER (12.5X24X3.2mm) |
| 6 | 5030463 | WASHER |
| 7 | 5030983 | BOLT |
| 8 | 5031015 | PIN |
| 9 | 5031024 | KEY |
| 10 | 5030660 | BELT, Timing |
| 11 | 5030661 | TENSIONER, Timimg belt |
| 12 | 5030662 | SPRING, Tensioner |
| 13 | 5030390 | BOLT, Tensioner spring |
| 14 | 5030586 | CLAMP |
| 17 | 5032851 | COVER, Ring gear This part replaces 5030638. |
| 18 | 5030639 | CUSHION |
| 19 | 5030410 | SCREW (6X18mm) |
| 22 | 5030557 | CUSHION |
