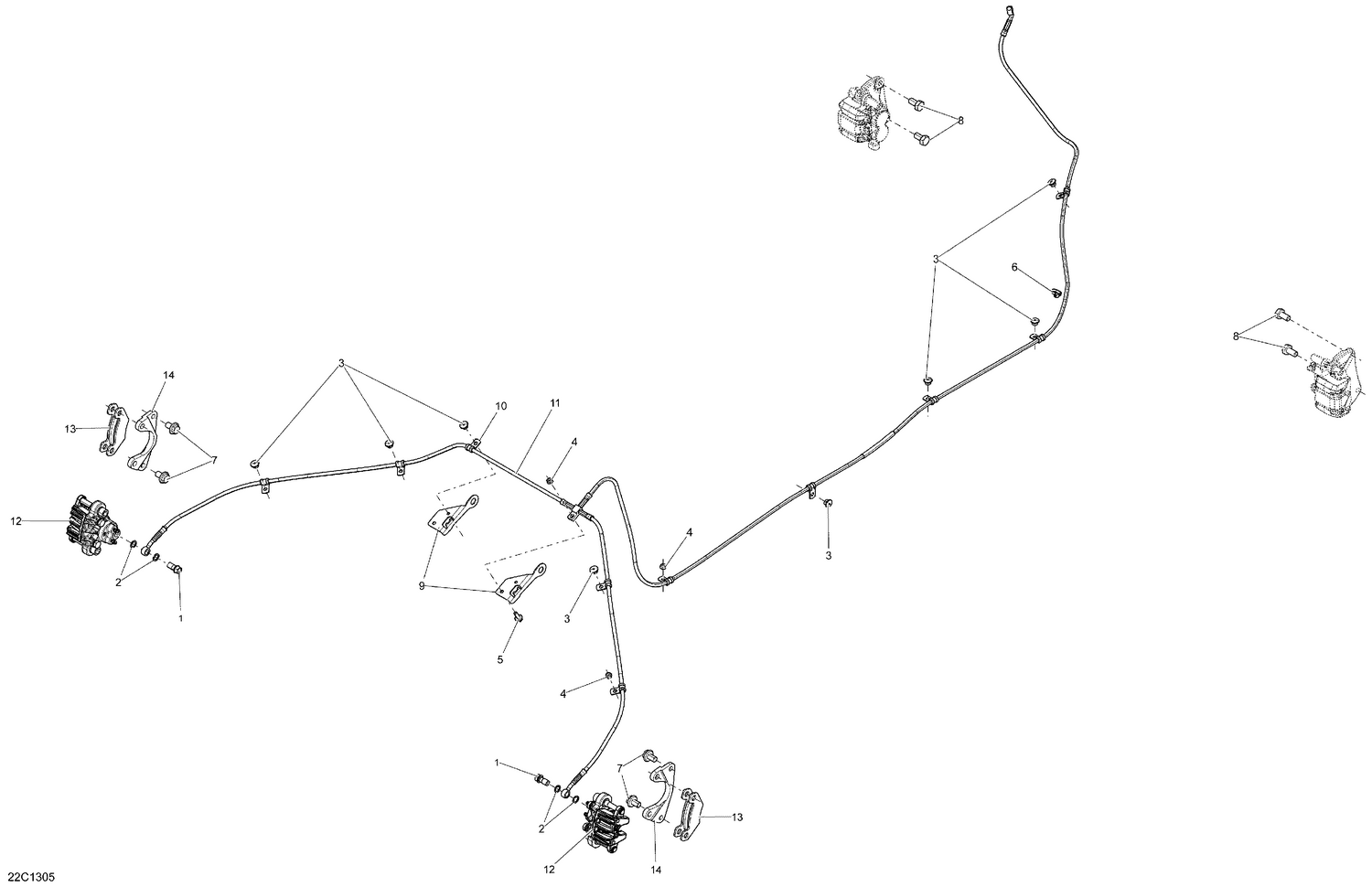

06- Brakes (Supplement-IS Market)
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705600628 | Banjo Bolt |
| 2 | 705601628 | Copper Washer This part replaces 705600310. |
| 3 | 390406500 | Pop Rivet 3/16" |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 207661644 | Hex. Flange Screw M6 X 16 |
| 6 | 414115200 | Tie-Rap 180 mm |
| 7 | 250000060 | Flange Screw M10 X 16, Scotch Grip |
| 8 | 250000057 | Hex. Screw M10 X 20, Scotch Grip |
| 9 | 705601111 | Bracket |
| 10 | 293650256 | Clamp This part replaces 705600459. |
| 11 | 705601488 | FLEXIBLE HOSE - Call your local BRP dealership This part replaces 705601055. |
| 12 | 705601056 | REAR CALIPER - Call your local BRP dealership |
| 13 | 705600711 | Brake Pad Kit |
