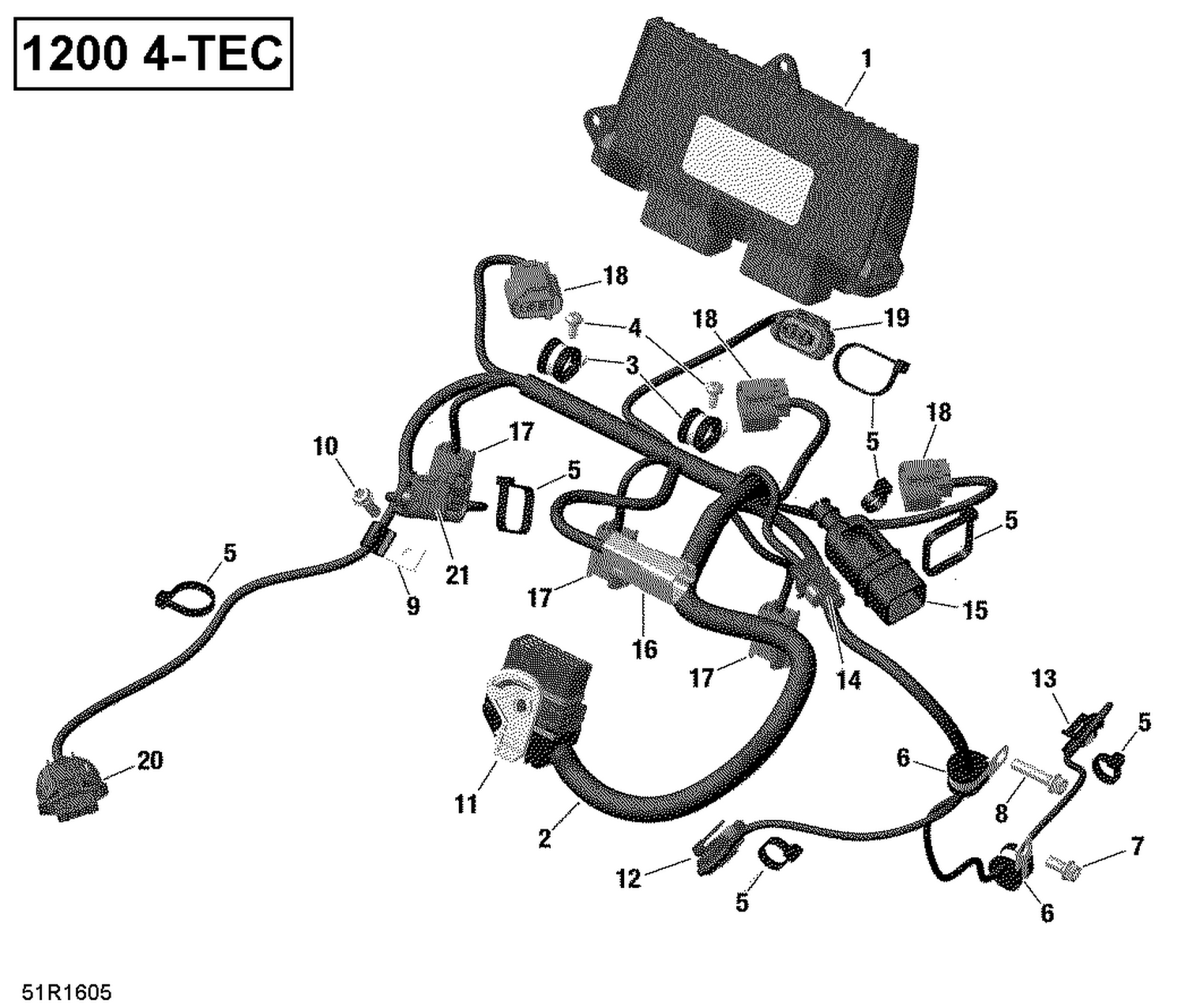

10- Engine Harness and Electronic Module - 1200iTC 4-TEC
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420666920 | Electronic Box |
| 3 | 420851108 | CABLE CLAMP - Call your local BRP dealership |
| 4 | 420640086 | Torx Screw M5 X 12 |
| 5 | 420651397 | Tie Rap |
| 6 | 420851492 | Cable Clamp |
| 7 | 420440147 | Hex. Flange Screw M6 X 12 |
| 8 | 420440234 | Torx Flange Screw M6 X 25 |
| 9 | 420253150 | CABLE CLAMP - Call your local BRP dealership |
| 10 | 420440234 | Torx Flange Screw M6 X 25 |
| 11 | Not | Available As Spare Part - Connector ECM A |
| 12 | 278001005 | Male Housing, 2 Circuits |
| 13 | 278001012 | Male Housing, 1 Circuit |
| 14 | 278001005 | Male Housing, 2 Circuits |
| 15 | 420201070 | PROTECTOR - Call your local BRP dealership |
| 16 | 278000635 | Female Housing, 4 Circuits |
| 17 | Not | Available As Spare Part - Connector - Injector 1-3 |
| 18 | Not | Available As Spare Part - Connector - Coil 1-3 |
| 18a | 710000335 | Female Terminal |
| 18b | 409012300 | Seal |
| 19 | 278003197 | Housing |
| 20 | 515176410 | Male Connector |
