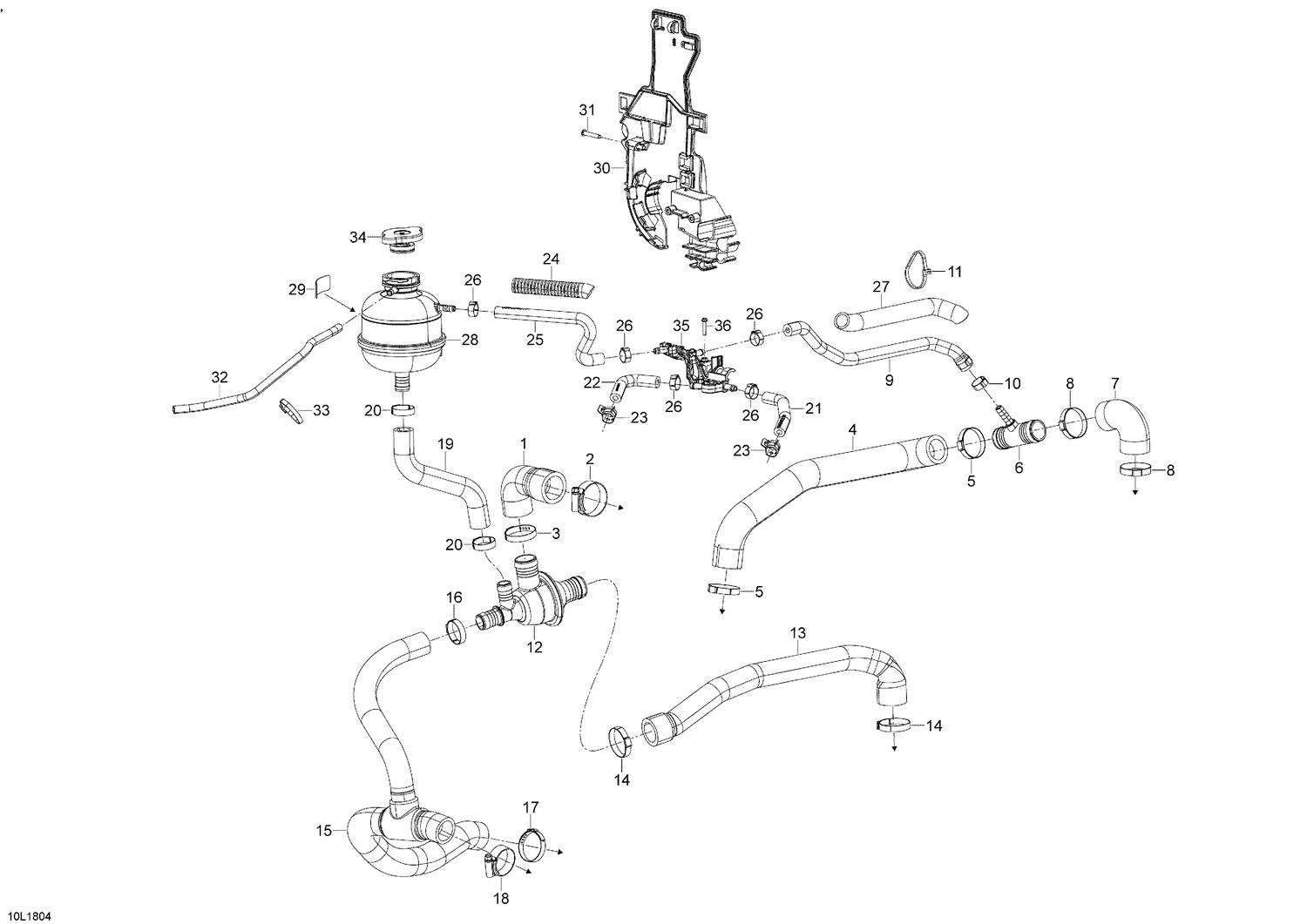

01- Cooling 600 HO E-TEC - WO AIRRAD
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000678 | Engine Outlet Hose |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000529 | Oetiker Gear Clamp |
| 4 | 509000670 | Radiator Hose |
| 5 | 509000529 | Oetiker Gear Clamp |
| 6 | 509000510 | T-Fitting |
| 7 | 509001066 | Radiator Hose |
| 8 | 509000529 | Oetiker Gear Clamp |
| 9 | 509000906 | Bleeder Hose |
| 10 | 293650047 | Crimp Clamp, 15.3-706R |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 509000499 | Thermostat Housing |
| 13 | 509000679 | Thermostat Outlet Hose |
| 14 | 509000529 | Oetiker Gear Clamp |
| 15 | 509000814 | Hose |
| 16 | 293650099 | Crimp Clamp |
| 17 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 18 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 19 | 509000812 | Filling Hose |
| 20 | 509000442 | Gear Clamp |
| 21 | 509000818 | Bleeder Hose |
| 22 | 509000819 | Bleeder Hose |
| 23 | 293650170 | Tridon Gear Clamp |
| 24 | 409901800 | Tubing 13 mm |
| 25 | 509000817 | HOSE - Call your local BRP dealership |
| 26 | 293650046 | Oetiker Clamp |
| 27 | 415080000 | Tubing 16 mm |
| 28 | 509000802 | Coolant Tank |
| 29 | 516005904 | Warning Decal |
| 30 | 509000973 | TANK-SUPPORT - Call your local BRP dealership |
| 31 | 241152540 | Hex. Flanged Screw K50 X 25 |
| 32 | 276000048 | Hose 6 mm |
| 33 | 414115200 | Tie-Rap 180 mm |
| 34 | 509000180 | Radiator Pressure Cap |
| 35 | 509000803 | Bleed Collector |
