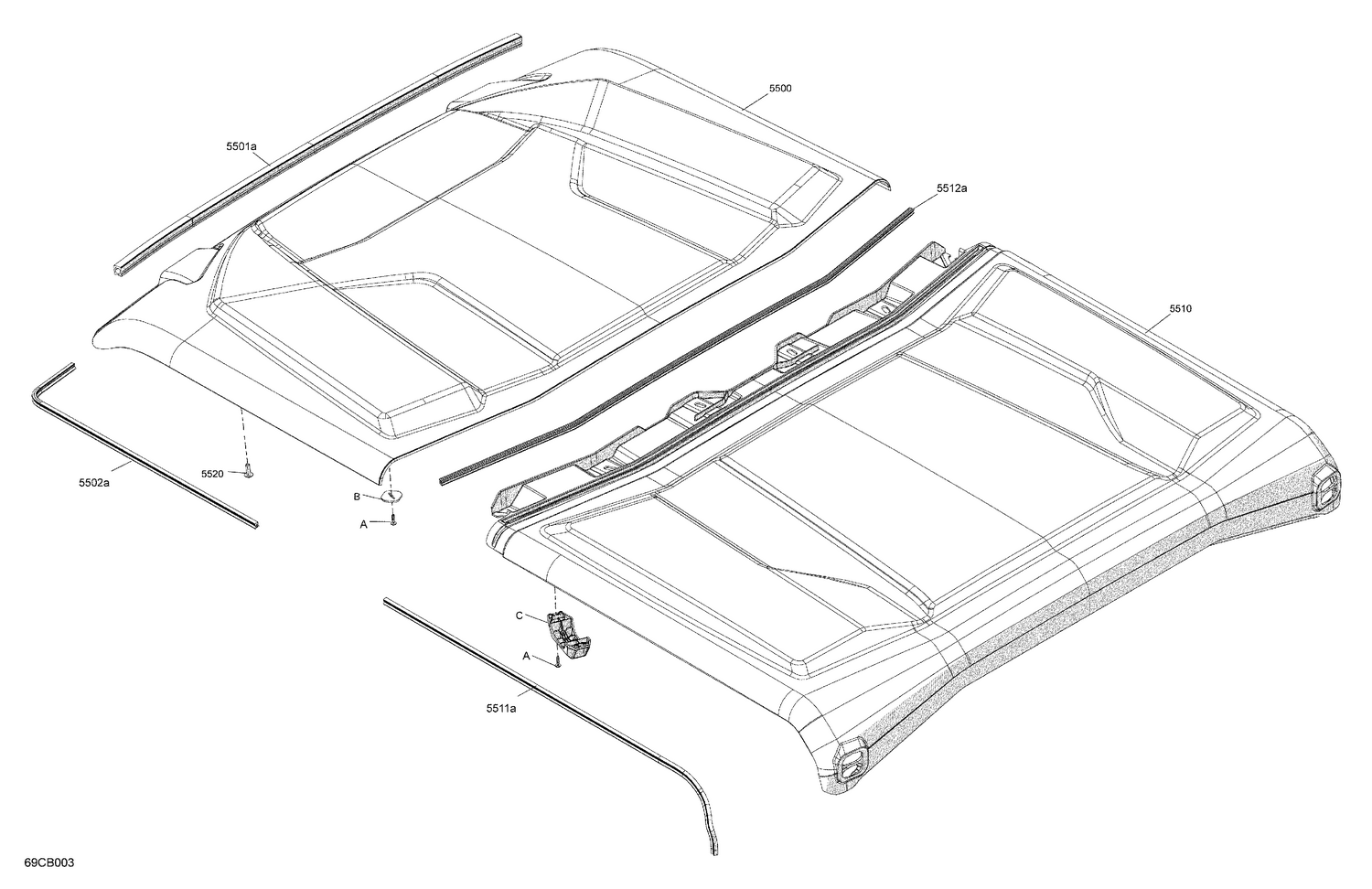

07- Body - Roof
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| A | 250000760 | Torx Screw Truss Head K50X20 T20 |
| B | 705003841 | Support Plate |
| 5500 | 705800066 | Front Roof |
| 5501a | 293250361 | JOINT *SEAL - Call your local BRP dealership |
| 5502a | 293250393 | EXTRUSION*EXTRUSION - Call your local BRP dealership |
| 5510 | 705800067 | Rear Roof |
| 5511a | 293250393 | EXTRUSION*EXTRUSION - Call your local BRP dealership |
| 5512a | 293250393 | EXTRUSION*EXTRUSION - Call your local BRP dealership |
| 5520 | 250000874 | Torx Truss M8 X 25 |
