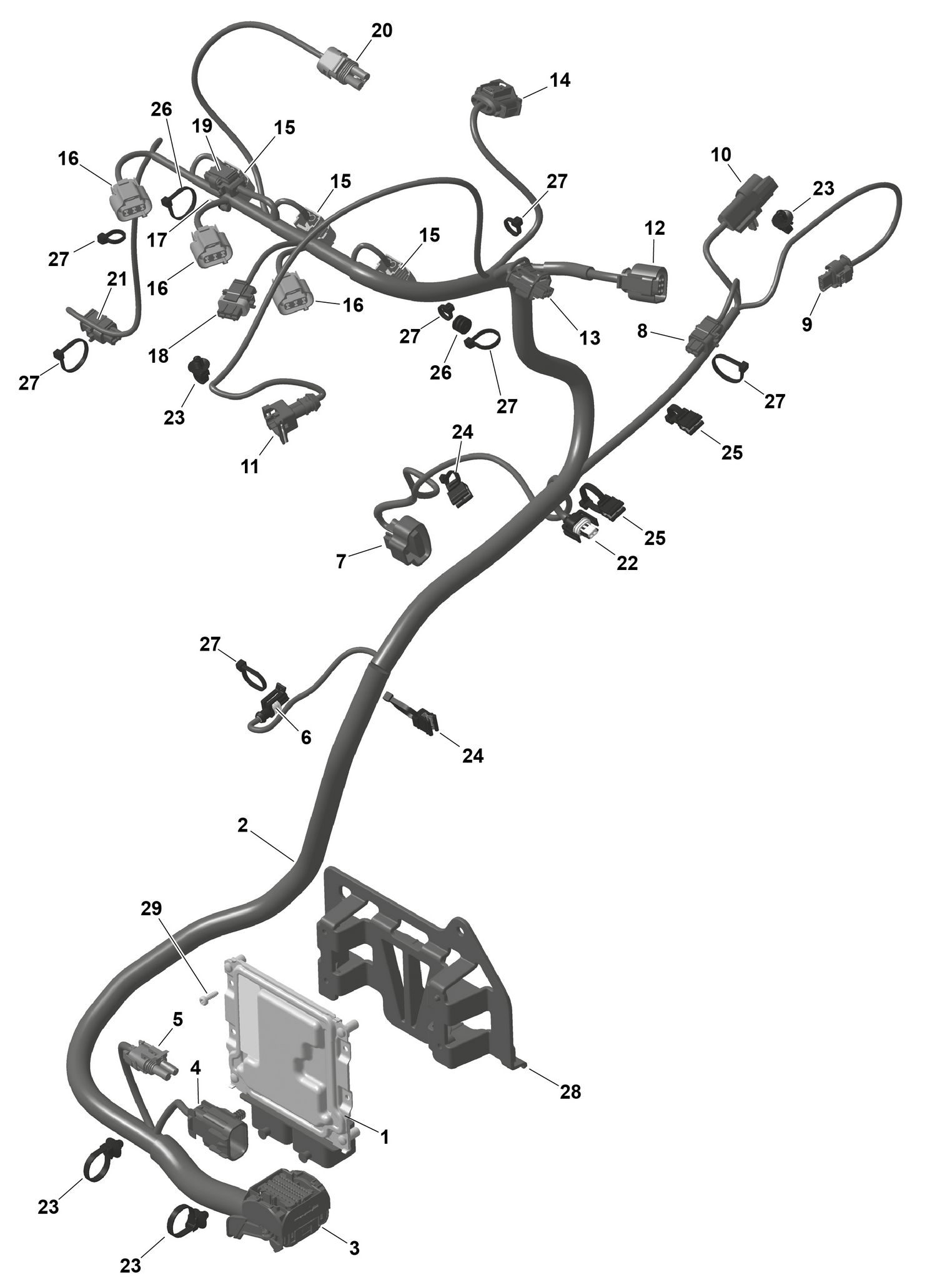

01- ROTAX - Engine Harness And Electronic Module
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420464215 | Electronic Box Xcu Full Hw Blank This part replaces 420464247. |
| 3 | 710006442 | CONNECTOR_FEMALE 56 CAVITIES - Call your local BRP dealership |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 278001012 | Male Housing, 1 Circuit |
| 7 | 710000329 | Male Housing, 4 Circuits |
| 8 | 278001005 | Male Housing, 2 Circuits |
| 9 | 710007787 | Female Connector 3 Circuits |
| 10 | 278002378 | Male Housing This part replaces 409207000. |
| 11 | 415128500 | Female Terminal Housing, 2 Circuits |
| 12 | 515177406 | Female Housing |
| 13 | 278001829 | Housing Connector, 3 Circuits |
| 14 | 515176410 | Male Connector |
| 15 | XXX | Not Available As Spare Parts |
| 17 | 278000992 | Open Barrel |
| 18 | 278003197 | Housing |
| 19 | 278001005 | Male Housing, 2 Circuits |
| 20 | XXX | Not Available As Spare Parts |
| 21 | 278001005 | Male Housing, 2 Circuits |
| 22 | XXX | Not Available As Spare Parts |
| 23 | 420951345 | Tie Rap |
| 24 | 420951785 | Tie Rap |
| 25 | 420951650 | Cable Clamp 150mm |
| 26 | XXX | Not Available As Spare Parts |
| 27 | 420866714 | Tie Rap |
| 28 | 420260175 | Bracket |
