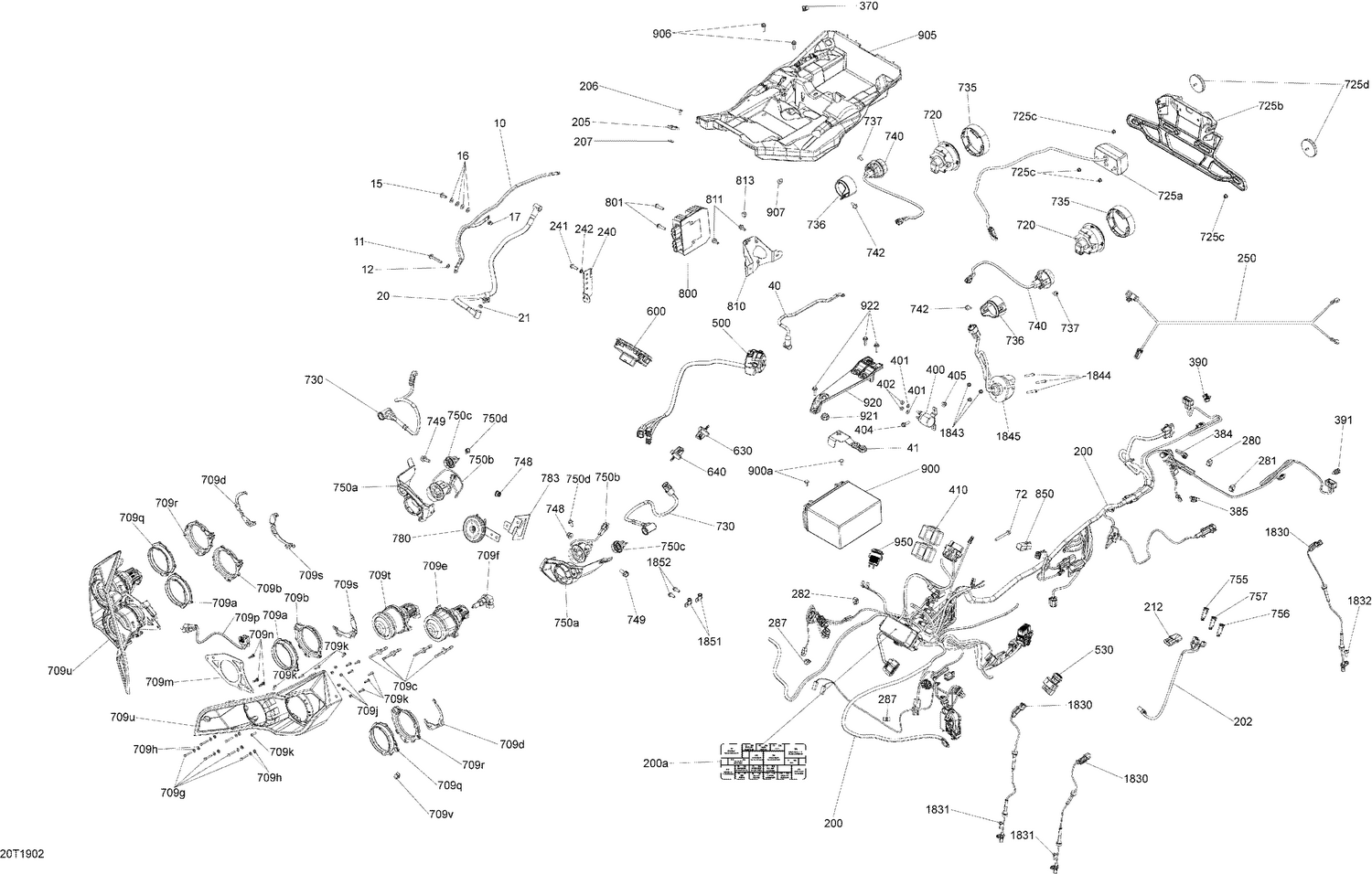

10- Electrical - 1000R EFI
Parts (111)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 40 | 710004376 | Positive Cable |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 72 | 210261640 | Hex. Flange Screw M6 X 16 |
| 200 | 710006240 | Harness |
| 202 | 710005840 | Indicator Light Cable |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 250 | 710004324 | Brake Harness |
| 280 | 414227300 | Clip |
| 281 | 414227300 | Clip |
| 282 | 414227300 | Clip |
| 287 | 414227300 | Clip |
| 370 | 710002896 | Tie-Rap Clip |
| 384 | 710002896 | Tie-Rap Clip |
| 385 | 710002896 | Tie-Rap Clip |
| 390 | 710002896 | Tie-Rap Clip |
| 391 | 710002896 | Tie-Rap Clip |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 410 | 710003239 | Flasher Unit |
| 500 | 710006211 | LH Multi Fonction Control |
| 530 | 710008400 | Ignition Switch This part replaces 710003847. |
| 600b | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 600c | 715900265 | Button |
| 630 | 710002183 | Grey, Electronic Key |
| 640 | 710000817 | Black, Electronic Key |
| 709a | 710001081 | RH Low Front Housing |
| 709a | 710001083 | LH Low Front Housing |
| 709b | 710001082 | RH Low Rear Housing |
| 709b | 710001084 | LH Low Rear Housing |
| 709c | 710001147 | Setting Screw |
| 709f | 415129249 | Halogen Bulb |
| 709g | 207142544 | Hex. Screw M4 X 25 |
| 709h | 234051410 | Flat Washer M5 |
| 709j | 232541414 | Elastic Stop Nut M4 |
| 709k | 250000723 | Phillips Screw K40 X 16 |
| 709m | 705004309 | Painted Headlamp Support |
| 709n | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 709p | 710005944 | Light Harness |
| 709q | 710001085 | RH High Front Housing |
| 709q | 710001087 | LH High Front Housing |
| 709r | 710001086 | RH High Rear Housing |
| 709r | 710001088 | LH High Rear Housing |
| 709s | 710006353 | LH Low Light Support |
| 709s | 710006354 | RH Low Light Support |
| 709t1 | 415129249 | Halogen Bulb |
| 709u | 705004508 | LH Front Facia |
| 709u | 705004509 | RH Front Facia |
| 709v | 414227300 | Clip |
| 720a | 520000758 | Bulb |
| 725a | 710005563 | License Plate Light |
| 725b | 708300553 | Plate Support |
| 725c | 705011221 | Red Reflector |
| 730 | 710005676 | Position Light Harness |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 747 | 414479100 | Clip |
| 748 | 233281414 | Hex. Flange Elastic Nut M8 |
| 749 | 207682044 | Hex. Flange Screw M8 X 20 |
| 750a | 710005899 | LH Flasher Support |
| 750a | 710005900 | RH Flasher Support |
| 750b | 710002964 | Flasher |
| 750c | 710001726 | Day Light |
| 750d | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 752 | 503175800 | Washer |
| 753 | 710001826 | CAP GUARD - Call your local BRP dealership |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 757 | 710003909 | Pilot Lamp |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207661644 | Hex. Flange Screw M6 X 16 |
| 783 | 710006112 | Horn Support |
| 800 | 710005842 | Voltage Regulator |
| 801 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 810 | 710002587 | Rectifier Support |
| 811 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 813 | 293830005 | Rubber Bumper |
| 850 | 710004904 | Connector Plug |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710005528. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
| 1830 | 710006981 | Speed Sensor |
| 1831 | 250000720 | Torx Screw K50 X 16 |
| 1832 | 250000721 | Torx Truss Screw M6 X 16 |
| 1844 | 205053588 | Socket Head Screw M5 X 35 |
| 1845 | 710005846 | Trailer Harness |
| 1851 | 293650256 | Clamp |
