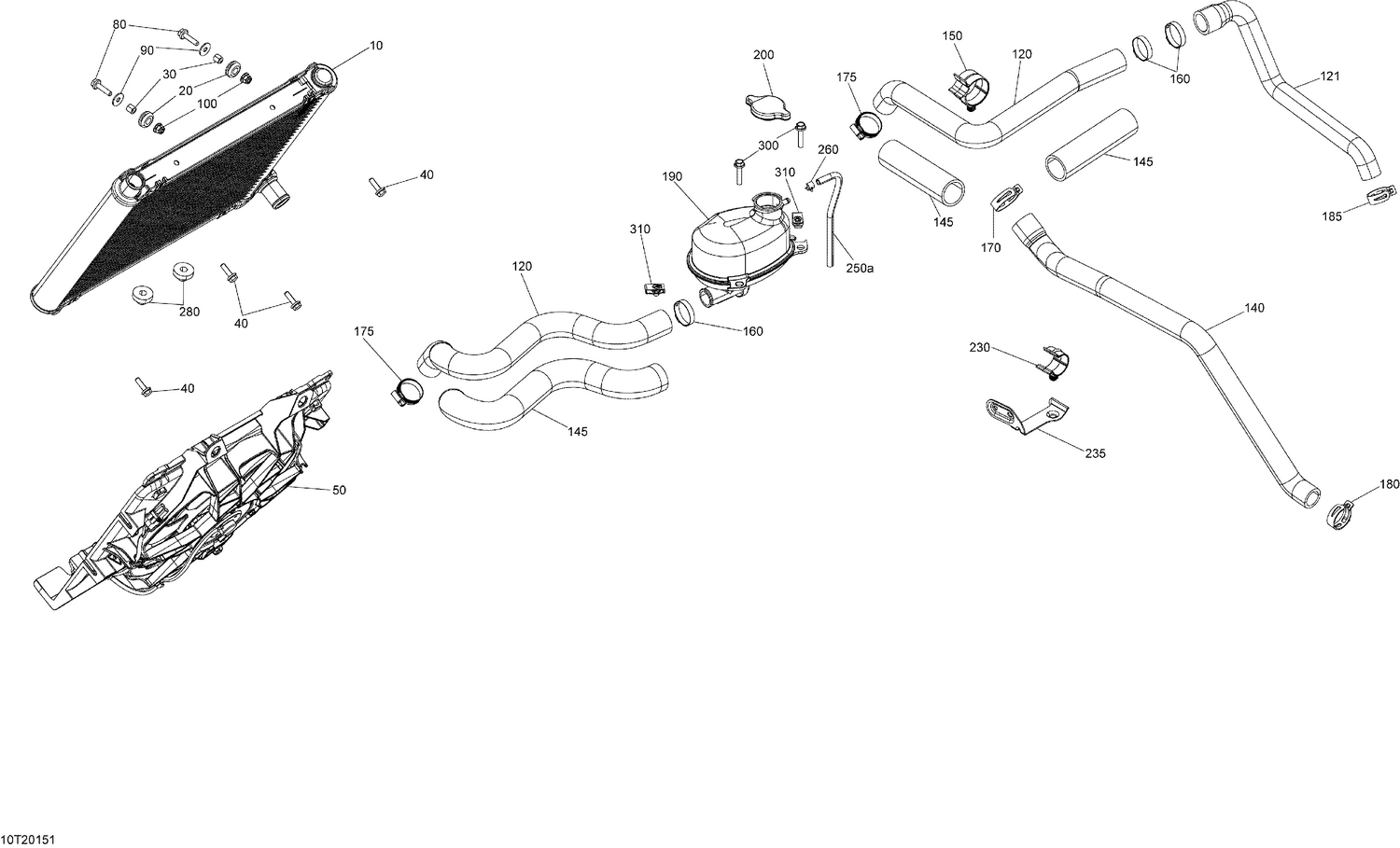

01- Cooling - System
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200286 | Radiator |
| 20 | 709000582 | Grommet This part replaces 293720053. |
| 30 | 293900105 | Bushing |
| 40 | 207662034 | Hex. Flange Screw M6 X 20 |
| 50 | 709200563 | Fan Ass'y |
| 80 | 207662534 | Hex. Flange Screw M6 X 25 |
| 90 | 250200082 | Flat Washer |
| 100 | 233261434 | Flange Elastic Nut M6 |
| 120 | 709200897 | Hose Inlet |
| 121 | 709200310 | Engine Outlet Hose |
| 140 | 709200792 | Radiator Outlet Hose This part replaces 709200637. |
| 145 | 219704428 | Tubing 35 MM 1000MM Long |
| 150 | 275500590 | Retainer |
| 160 | 509000162 | Gear Clamp |
| 170 | 293650166 | Norma Spring Clamp |
| 175 | 293650098 | Norma Gear Clamp |
| 180 | 293650166 | Norma Spring Clamp |
| 185 | 293650109 | Norma Spring Clamp |
| 190 | 709200297 | Coolant Tank |
| 200 | 709200207 | Radiator Pressure Cap |
| 230 | 275500526 | Retainer |
| 235 | 709200641 | Hose Support |
| 250a | 219704389 | Polyurethane Hose 4000MM Long |
| 260 | 414554800 | Spring Clamp |
| 280 | 709200948 | Grommet |
| 300 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
