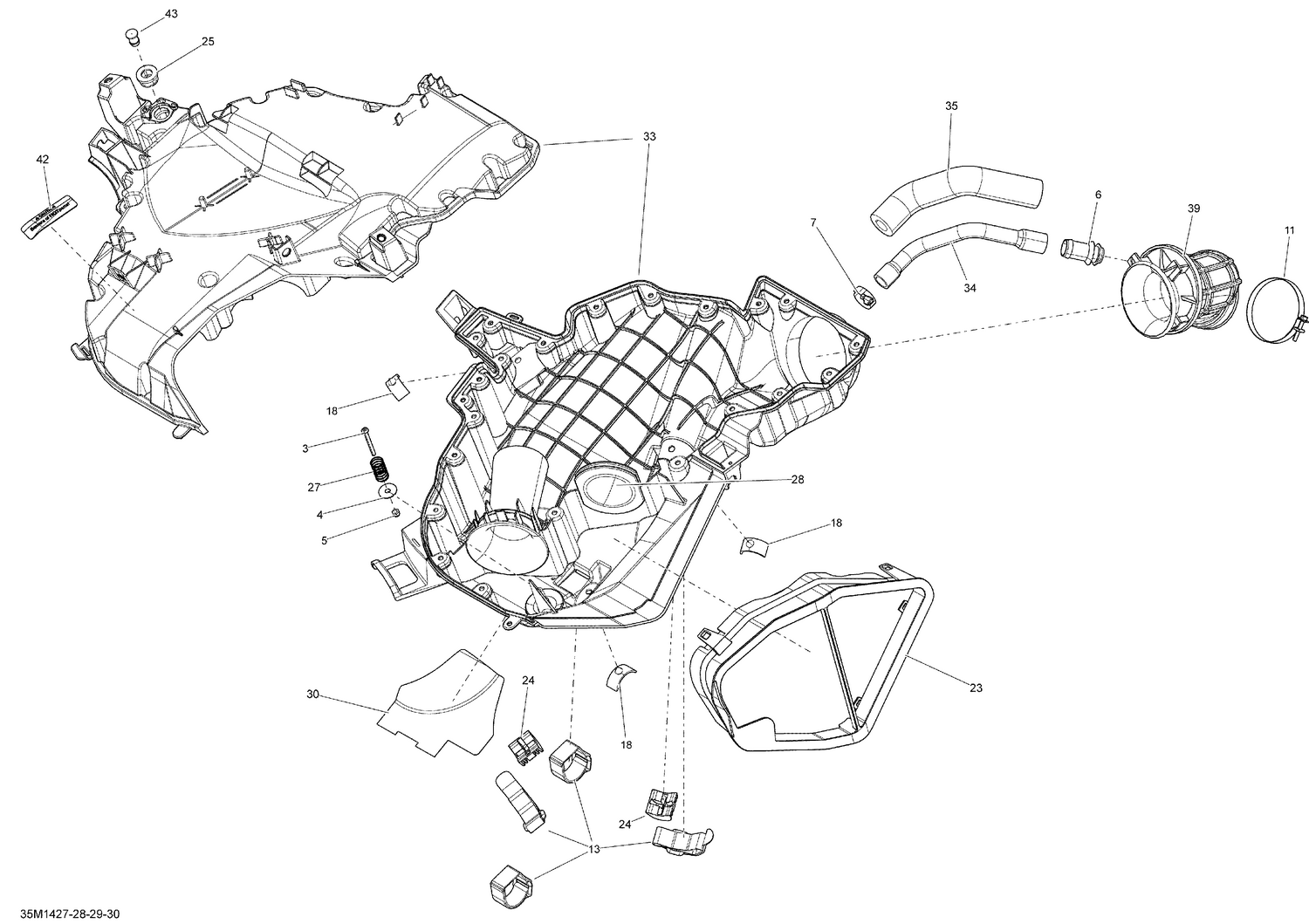

02- Air Intake System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 205444086 | Socket Head Screw M4 X 40 |
| 4 | 224060201 | Flat Washer |
| 5 | 232541414 | Elastic Stop Nut M4 |
| 6 | 273000234 | Breather Valve |
| 7 | 293650172 | Tridon Gear Clamp |
| 11 | 293650212 | GEMI Clamp |
| 13 | 508000820 | Velcro Strip This part replaces 508000532. |
| 18 | 508000537 | Stopper |
| 23 | 508000568 | Air Intake Filter |
| 24 | 508000572 | Bumper |
| 25 | 508000574 | Grommet |
| 27 | 508000576 | Spring |
| 28 | 508000590 | Cap |
| 30 | 508000622 | Reflective Sheet |
| 33 | 508000625 | Secondary Chamber Ass'y |
| 34 | 508000647 | FORMED VENT HOSE - Call your local BRP dealership |
| 35 | 508000648 | Tube Isolator |
| 39 | 508000717 | AIR INTAKE HOSE - Call your local BRP dealership |
| 42 | 516005280 | Caution Decal Hot Parts |
