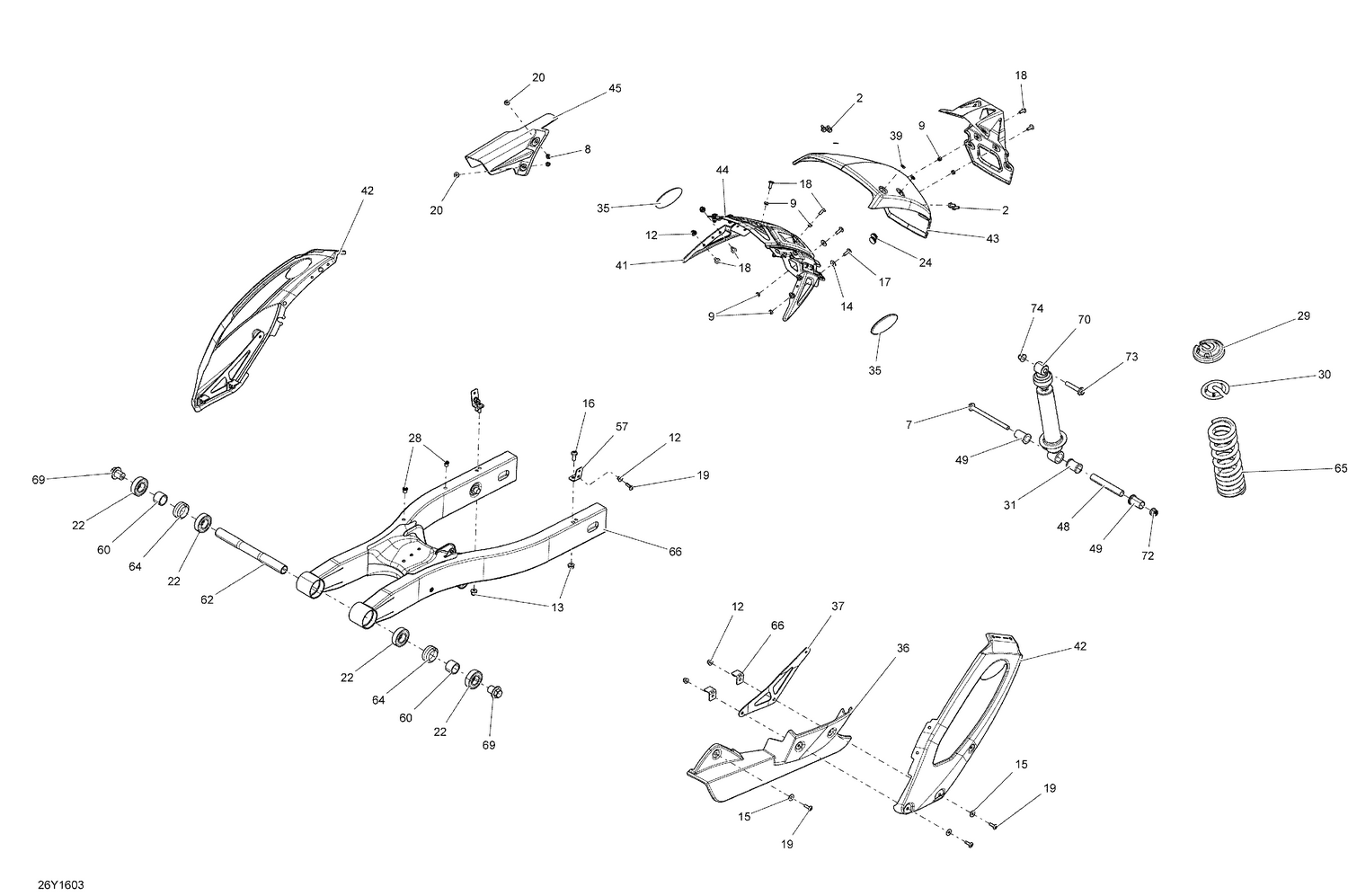

08- Suspension, Rear
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 7 | 230604034 | Hex. Flange Screw M10 X 140 |
| 8 | 232361600 | Nut M6 |
| 9 | 232561494 | Elastic Stop Nut M6 |
| 12 | 233261494 | Hex. Flange Elastic Nut M6 |
| 13 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 234062600 | Flat Washer M6, Stainless |
| 15 | 234062670 | Stainless Steel Flat Washer |
| 16 | 236282084 | Hex. Screw M8 X 20 |
| 17 | 250000303 | Torx Truss Screw M6 X 20 |
| 18 | 250000348 | Torx Truss Screw M6 X 16 |
| 19 | 250000350 | Torx Truss Screw M6 X 20 |
| 20 | 250000454 | Torx Screw M6 X 12 |
| 22 | 293350115 | Ball Bearing This part replaces 293350055. |
| 24 | 293740028 | Dual Lock Velcro Washer 3/4" |
| 28 | 293450275 | Insert |
| 29 | 503191604 | SPRING STOPPER - Call your local BRP dealership |
| 30 | 503191605 | CAP - Call your local BRP dealership |
| 31 | 503191609 | Urethane Cushion |
| 35 | 219400236 | RED LATERAL REFLECTOR - Call your local BRP dealership |
| 36 | 705002092 | Lower Belt Guard |
| 37 | 705002980 | LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 37 | 705002981 | RH Reinforcement Plate |
| 39 | 705003207 | Plastic Washer |
| 41 | 705009147 | Carbon Black LH Rear Fender Reinforc. |
| 41 | 705009148 | CARBON BLACK RH REAR FENDER REINFORC. - Call your local BRP dealership |
| 43 | 705004660 | Steel Black Rear Fender |
| 44 | 705006086 | Rear Fender Support |
| 45 | 705007213 | UPPER BELT GUARD - Call your local BRP dealership |
| 48 | 706000409 | Shock Absorber Shaft |
| 49 | 706000410 | Spacer |
| 57 | 706000895 | Bracket |
| 60 | 706001152 | Spacer |
| 62 | 706001182 | Swing Arm Axle |
| 64 | 706001366 | Sleeve |
| 65 | 706001701 | SPRING - Call your local BRP dealership |
| 66 | 706001574 | Swing Arm |
| 69 | 706001579 | Bolt M20 |
| 70 | 706001110 | Shock Absorber |
| 72 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 73 | 207605554 | Hex. Flange Screw M10 X 55 |
