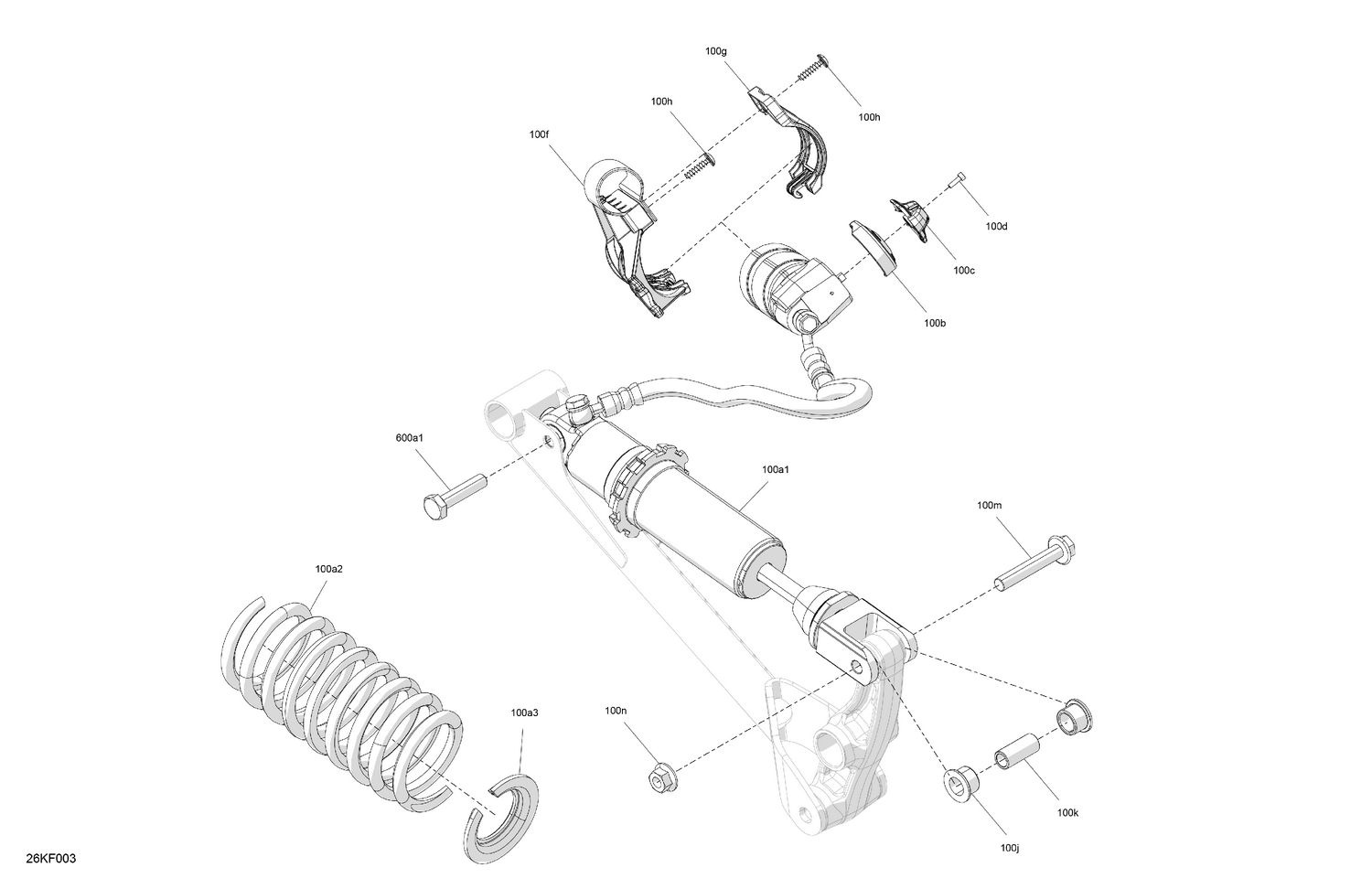

05- Suspension - Rear Shock
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 100a1 | 706004665 | Rear Adjustable Shock Absorber |
| 100a2 | 706004535 | Compression Spring |
| 100a3 | 706000567 | Spring Stopper |
| 100b | 706004533 | Gauge |
| 100c | 706004415 | Adjustment Button |
| 100d | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 100f | 706003311 | Support Shock Absorber Tank Interior |
| 100g | 706004531 | Ext Tank Support Shock Absorber |
| 100h | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 100j | 503189117 | Urethane Bushing |
| 100k | 706002678 | Spacer |
| 100m | 207506056 | Hex. Flange Screw M10 X 60, Scotch Grip |
| 100n | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
