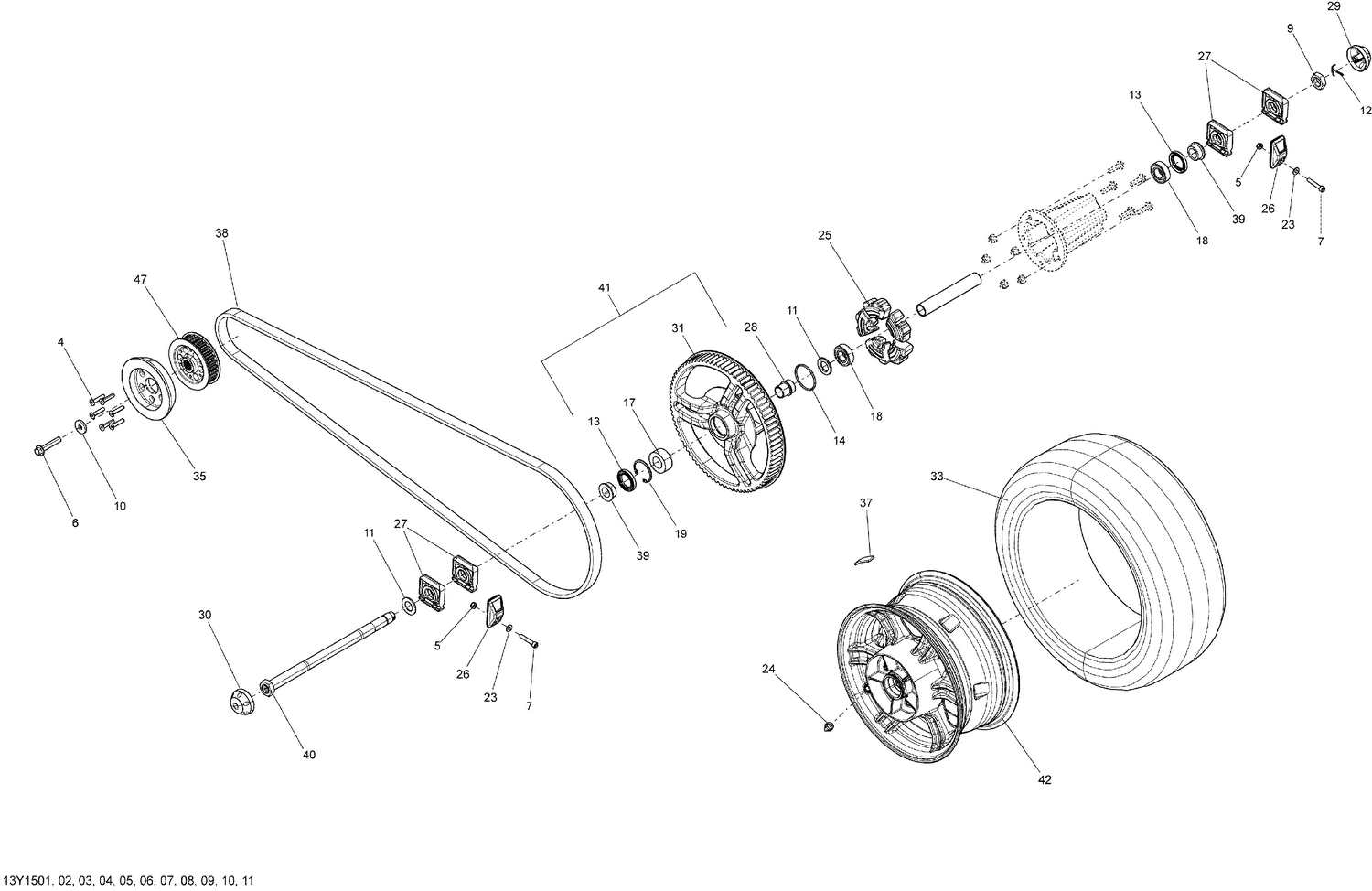

08- Drive System, Rear _13Y1503
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 250100141 | Hex. Elastic Nut M8 |
| 6 | 250001017 | Hex Flange Screw DIN.6921 S.Grip This part replaces 250000250. |
| 7 | 250000713 | Socket Screw DIN.912 |
| 9 | 250100170 | Hex. Jam Nut M24 |
| 10 | 250200052 | Washer |
| 11 | 250200163 | Flat Washer This part replaces 250200156. |
| 12 | 250400047 | Cotter Pin |
| 13 | 293200094 | Seal |
| 14 | 293300124 | O-Ring |
| 17 | 293350065 | Double Row Bearing |
| 18 | 293350115 | Ball Bearing This part replaces 293350067. |
| 19 | 293370053 | Circlip |
| 23 | 234081410 | Flat Washer 8 mm |
| 24 | 705400193 | Rim Valve With Cap |
| 25 | 705503473 | Shock Absorber Bushing This part replaces 705500736. |
| 26 | 705502450 | Adjustment Support This part replaces 705500758. |
| 27 | 705502448 | Sliding Block This part replaces 705500770. |
| 28 | 705500853 | Spacer |
| 29 | 705501022 | RH Cap |
| 30 | 705501081 | LH Cap |
| 33 | 705503310 | Rear Tire 225/50R15 This part replaces 705501464. |
| 37 | 705502106 | Self Adhesive Weight, 5G 20mm |
| 39 | 705501602 | Spacer |
| 40 | 705501691 | Rear Wheel Axle |
| 44 | 705502093 | Spacer Tube |
