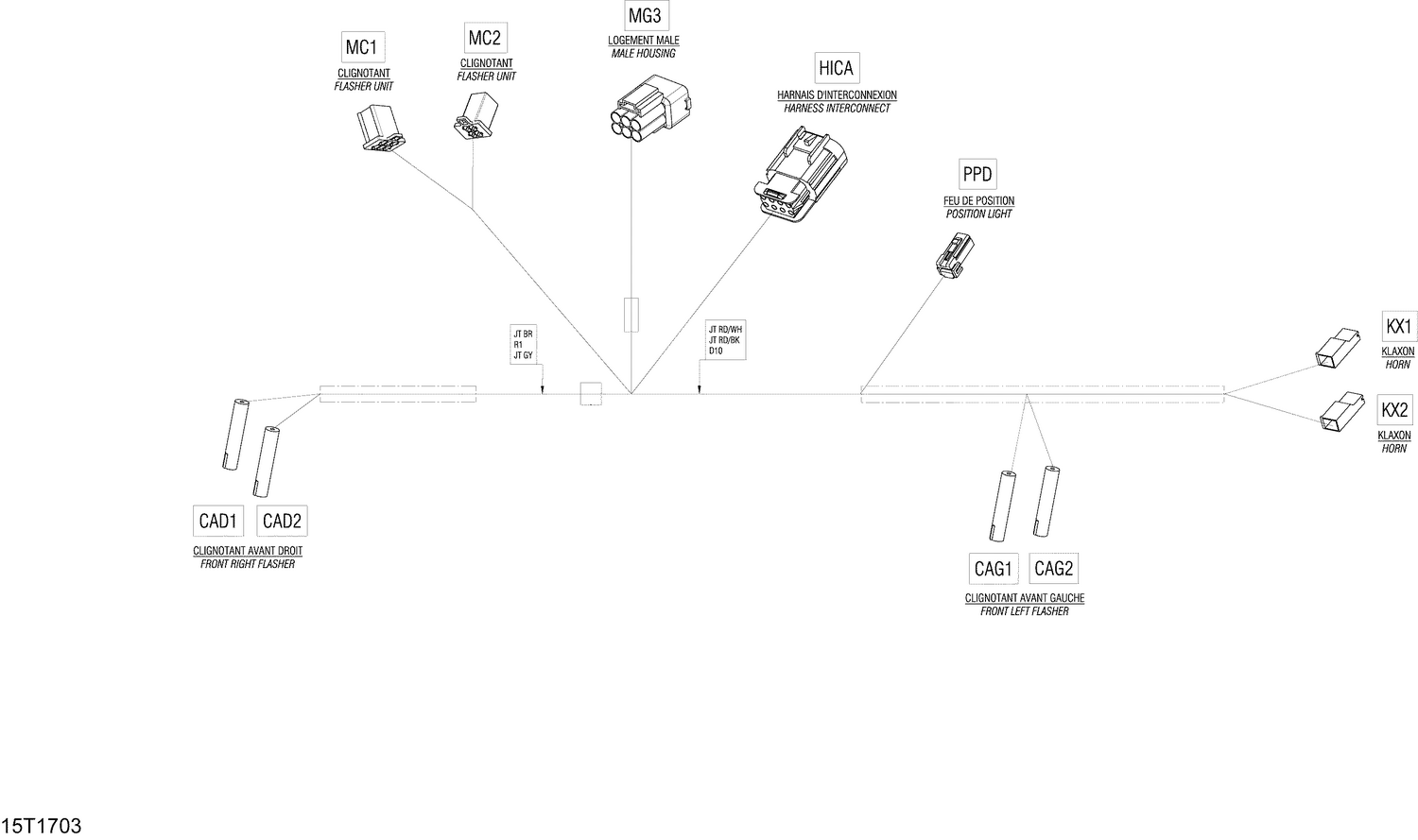

10- Electrical Harness - Europe 710004680
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| CAD1 | 278001007 | Insulated Sheath |
| CAD1 | 710000421 | Female Terminal |
| CAD2 | 278001007 | Insulated Sheath |
| CAD2 | 710000421 | Female Terminal |
| CAG1 | 278001007 | Insulated Sheath |
| CAG1 | 710000421 | Female Terminal |
| CAG2 | 278001007 | Insulated Sheath |
| CAG2 | 710000421 | Female Terminal |
| D10 | 409012700 | Diode |
| HICA | 710001224 | Terminal |
| HICA | 710001225 | Cap |
| HICA | 710001233 | Seal |
| HICA | 710001927 | Housing |
| KX1 | 409010100 | Female Terminal |
| KX1 | 409010400 | Female Terminal Housing, 1 Circuit |
| KX2 | 409010100 | Female Terminal |
| KX2 | 409010400 | Female Terminal Housing, 1 Circuit |
| MC1 | 710002314 | Housing |
| MC1 | 710002315 | Terminal |
| MC2 | 710002313 | Housing |
| MC2 | 710002315 | Terminal |
| MG3 | 409011300 | Male Terminal |
| MG3 | 710000080 | Cap |
| MG3 | 710000402 | Wire Seal |
| MG3 | 710001446 | Male Housing Terminal, 6 Circuits |
| PPD | 515175231 | Female Terminal |
| PPD | 515175658 | Female Housing, 2 Circuits |
