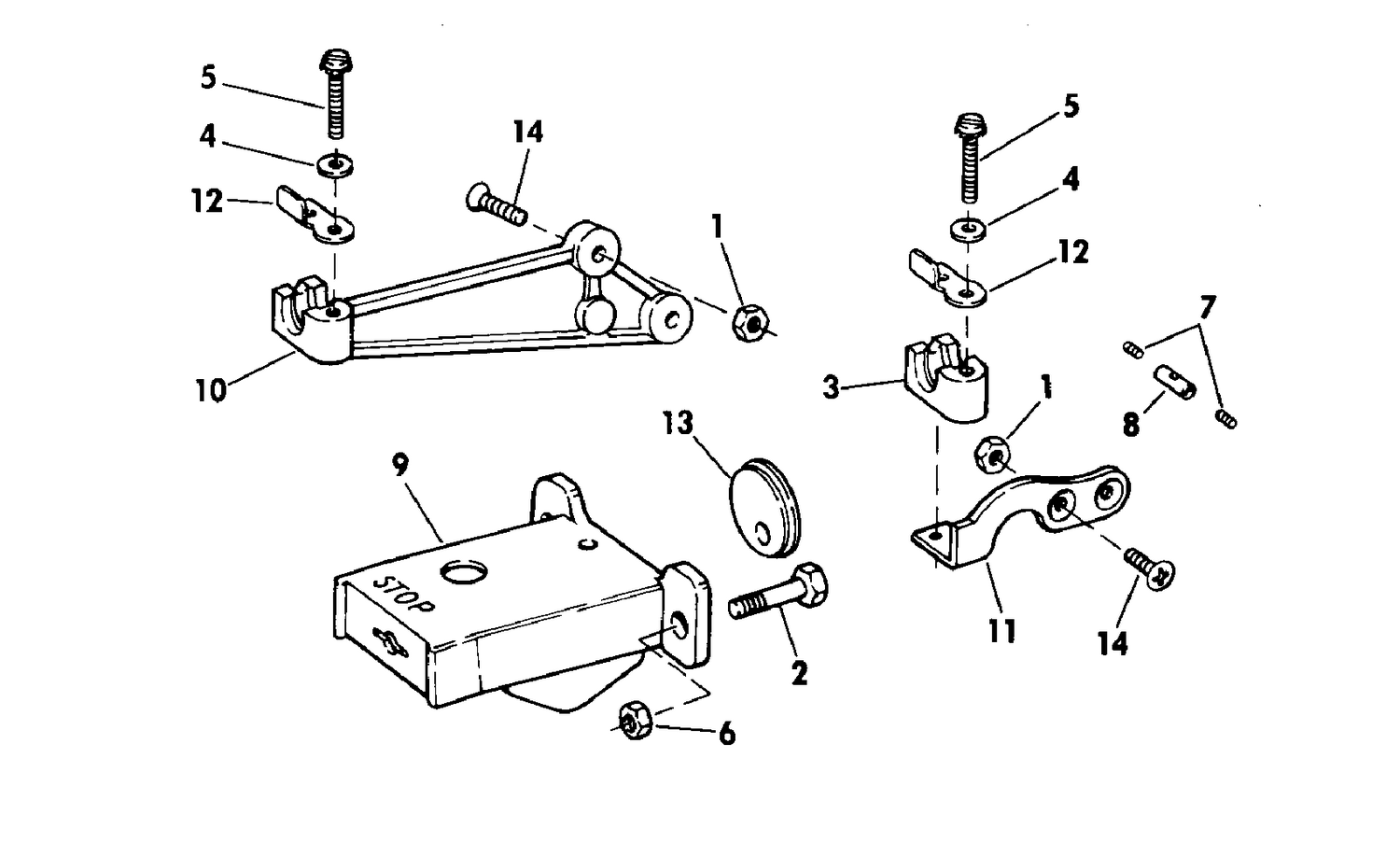

ADAPTER KIT-REMOTE CONTROL 9.9 & 15 HP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0302479 | VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 3 | 0310685 | ABCHOR BLCOK, Trunnion |
| 4 | 0310688 | SAPCER, Anchor block |
| 5 | 0320014 | SCREW, Detent clip |
| 9 | 0319948 | BRACKET, Steering |
| 10 | 0389734 | SHIFT BRACKET KIT This part replaces 0319949. |
| 11 | 0435448 | CONNECTOR, Throttle This part replaces 0319950. |
| 12 | 0319951 | CLIP, Detent |
| 13 | 0319952 | GROMMET, Throttle cable to motor cover |
| 0386660 | 0386660 | ADAPTER KIT, Remote control |
