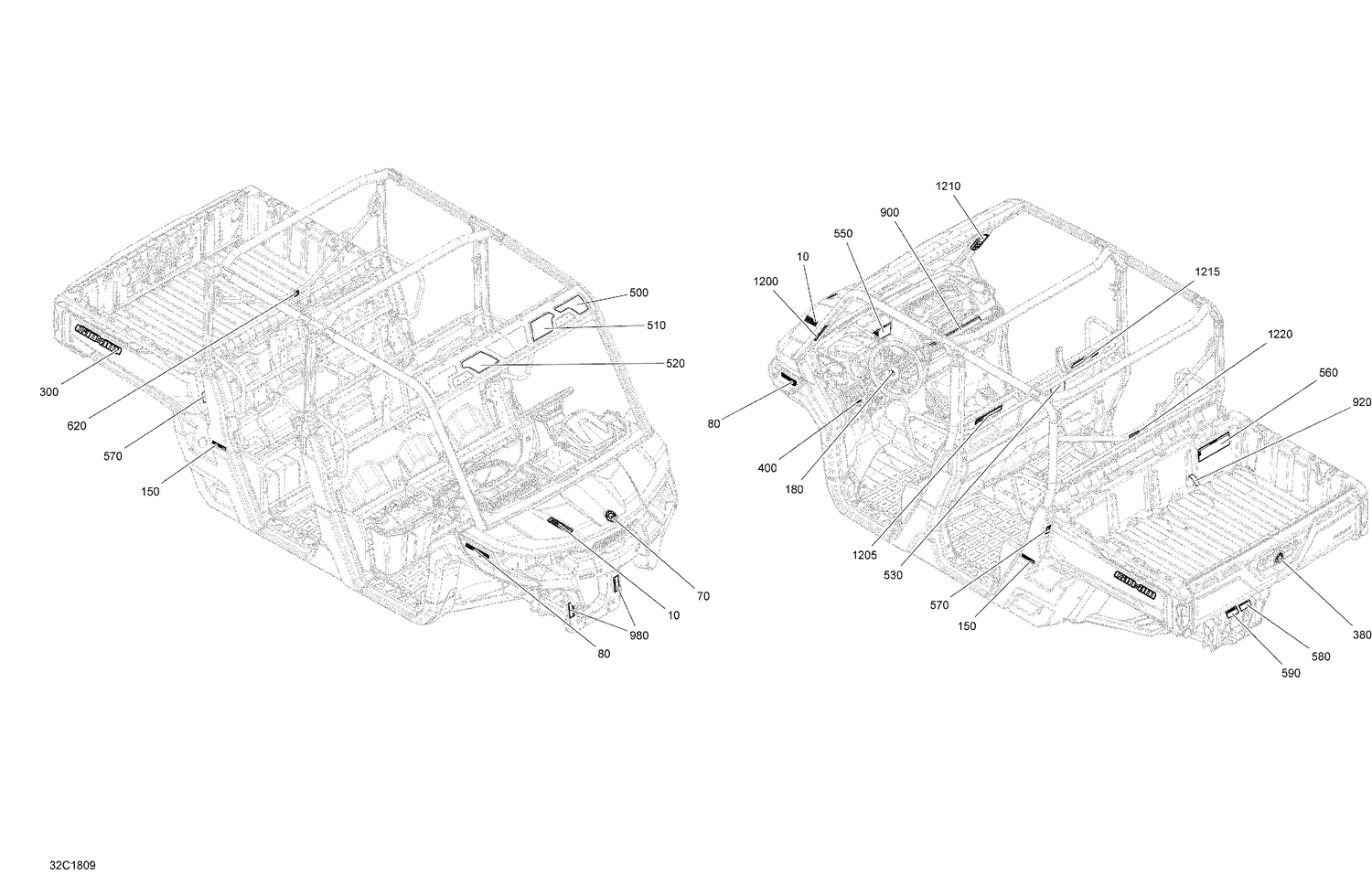

09- Decals Traxter MAX HD10 - Package XT

09- Decals Traxter MAX HD10 - Package XT

Parts (21)

RefPart NumberDescription
70 516008739 BRP Logo 68mm This part replaces 516006888.
180 704904274 Can-Am Logo
380 516008739 BRP Logo 68mm This part replaces 516006888.
390 516006224 BRP Logo 20MM x 2MM
400 704905637 Decal "Dynamic Power Steering"
500 704905476 Warning Label Operator's Guide
510 704906327 WARNING DECAL OPERATING GUIDE - Call your local BRP dealership
520 704905487 Warning Label Passenger
530 704908557 Rear Passenger Warning Decal This part replaces 704905800.
550 704906224 DECAL DASHBOARD - Call your local BRP dealership
560 704907118 Warning Label Cargo Load This part replaces 704906905.
570 704905488 Warning Label Injury
580 704905479 Warning Label Towing
590 704905481 Warning Label Trailer
620 704906029 Label Symbol
920 707800373 Air Filter Maintenance Decal
980 704908273 Ground And DPS Warning Label This part replaces 704905495.
1200 704906768 Roll Over Warning Label
1205 704908558 Roll Over Warning Label This part replaces 704905928.
1210 704906769 Roll Over Warning Label
1215 704908559 Roll Over Warning Label This part replaces 704905930.
