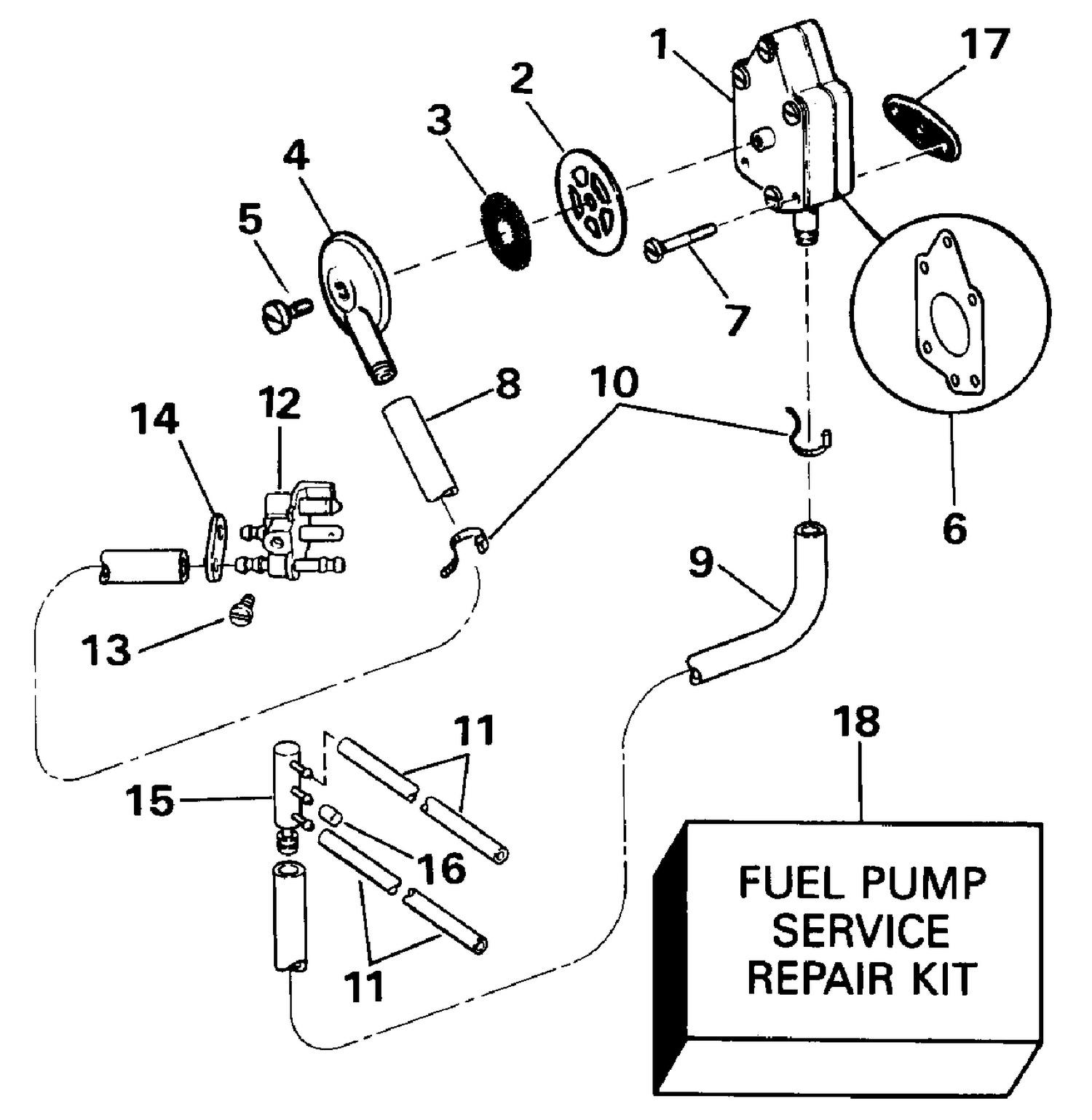

| Ref | Part Number | Description |
|---|
| 1 |
0438556 |
FUEL PUMP ASSY. This part replaces 0432451. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 |
0330092 |
CAP Filter |
| 6 |
0334640 |
DIAPHRAGM |
| 8 |
HOSE, |
Fuel connector to pump 356mm (14 in.) |
| 9 |
HOSE, |
Pump to manifold, 14 in (356mm) |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0329695 |
HOSE |
| 13 |
0310379 |
SCREW |
| 15 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 16 |
0333264 |
CAP, Fuel manifold |
| 17 |
0303615 |
GASKET |
