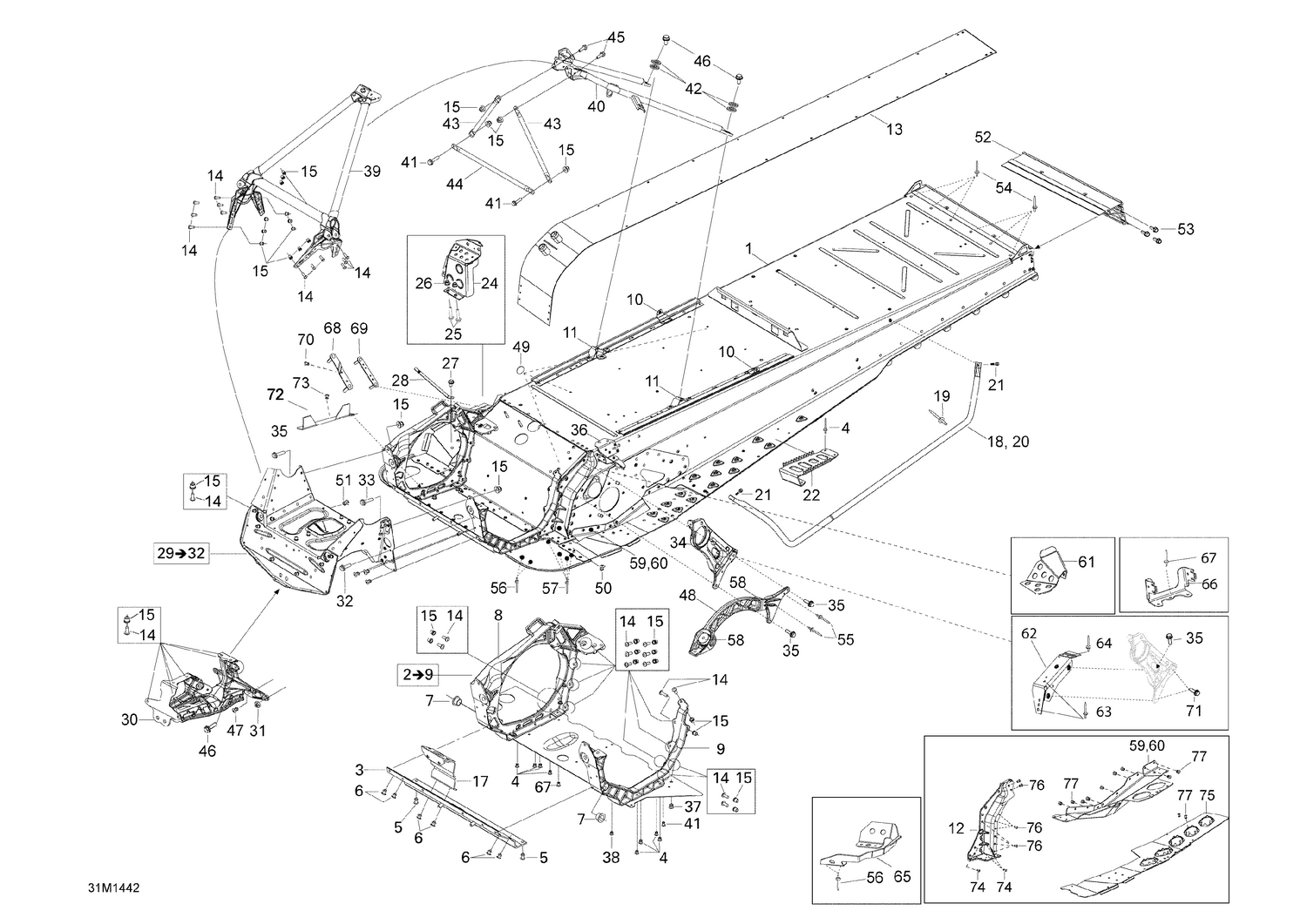

| Ref | Part Number | Description |
|---|
| 1 |
518328204 |
FRAME - Call your local BRP dealership This part replaces 518327673. |
| 2 |
518328187 |
Module E This part replaces 518326720. |
| 3 |
518326198 |
Front Member |
| 4 |
390909100 |
Avex Rivet |
| 5 |
293150120 |
Hemlock Rivet 6.5 mm |
| 6 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 7 |
505072690 |
Leg Bushing |
| 8 |
518326328 |
RH Side Member |
| 9 |
518326330 |
LH Side Member |
| 10 |
518325987 |
Seat Box Bracket |
| 11 |
518326109 |
SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 11 |
518326110 |
SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 12 |
518325524 |
LH Frame Corner |
| 12 |
518325526 |
FRAME CORNER RH - Call your local BRP dealership |
| 13 |
509000976 |
Tunnel Radiator This part replaces 509000867. |
| 14 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 17 |
518325371 |
MAG Engine Support |
| 18 |
518326963 |
LH Footboard Support Tube |
| 19 |
390909100 |
Avex Rivet |
| 20 |
518326964 |
RH Footboard Support Tube |
| 21 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 22 |
520001208 |
Black Rear Footrest |
| 24 |
518327375 |
TOE HOLD L.H. - Call your local BRP dealership |
| 24 |
518327376 |
Black RH Toe Hook |
| 25 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 27 |
390909200 |
Avex Rivet |
| 28 |
514054616 |
SPRING BRACKET - Call your local BRP dealership |
| 29 |
518327157 |
MODULE S DRILLED - Call your local BRP dealership |
| 30 |
518327487 |
Front Suspension Support This part replaces 518327475. |
| 31 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 32 |
210262050 |
Hexagonal Head Screw This part replaces 210262080. |
| 33 |
250000522 |
Hex Flange Screw M6 x 25 |
| 34 |
518327644 |
PULLEY SUPPORT - Call your local BRP dealership |
| 35 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 36 |
605355235 |
FASTENING BRACKET - Call your local BRP dealership |
| 37 |
293150163 |
Rivet Hucklok |
| 38 |
293150144 |
Stavex Rivet |
| 39 |
518326970 |
Front Member |
| 40 |
518329107 |
UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 41 |
207662086 |
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 42 |
Not |
Available As Spare Part - Lock washer D6 |
| 43 |
518325114 |
Upper Lateral Column Support |
| 44 |
518326657 |
Center Column Support |
| 45 |
250000522 |
Hex Flange Screw M6 x 25 |
| 46 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 47 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 48 |
518327392 |
Brace Ass'y |
| 49 |
518325560 |
Adhesive Patch |
| 50 |
414644300 |
Black, Dart |
| 51 |
293730042 |
Full Moon Dart 5 mm |
| 52 |
518328748 |
Rear Profile This part replaces 518327194. |
| 53 |
250000376 |
Hex Forming Screw DIN.7500D |
| 54 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 55 |
36087 |
Rivet |
| 56 |
293150104 |
Pop Rivet 3/16" |
| 57 |
390909200 |
Avex Rivet |
| 58 |
512061516 |
Vibration Damper This part replaces 512060295. |
| 59 |
Not |
Available As Spare Part - Drive Axle Cover Black LH |
| 60 |
Not |
Available As Spare Part - Drive Axle Cover Black RH |
| 61 |
518325626 |
Brake Hose Cover |
| 62 |
518326430 |
Clinch Nut plate |
| 63 |
390909100 |
Avex Rivet |
| 64 |
Not |
Available As Spare Part - Rivet |
| 65 |
518326566 |
PULLEY COVER PLATE - Call your local BRP dealership |
| 66 |
515177073 |
FUSEBOX SUPPORT - Call your local BRP dealership |
| 67 |
390909200 |
Avex Rivet |
| 68 |
518326123 |
GEARBOX FRONT PLATE - Call your local BRP dealership |
| 69 |
518326124 |
Gearbox Rear Plate |
| 70 |
390402200 |
Pop Rivet 3/16" |
| 72 |
518327448 |
Muffler Support |
| 73 |
293150163 |
Rivet Hucklok |
| 74 |
293150183 |
Rivet |
| 75 |
518326895 |
FOOTREST LH - Call your local BRP dealership |
| 75 |
518326896 |
FOOTREST RH - Call your local BRP dealership |
| 76 |
390909100 |
Avex Rivet |
