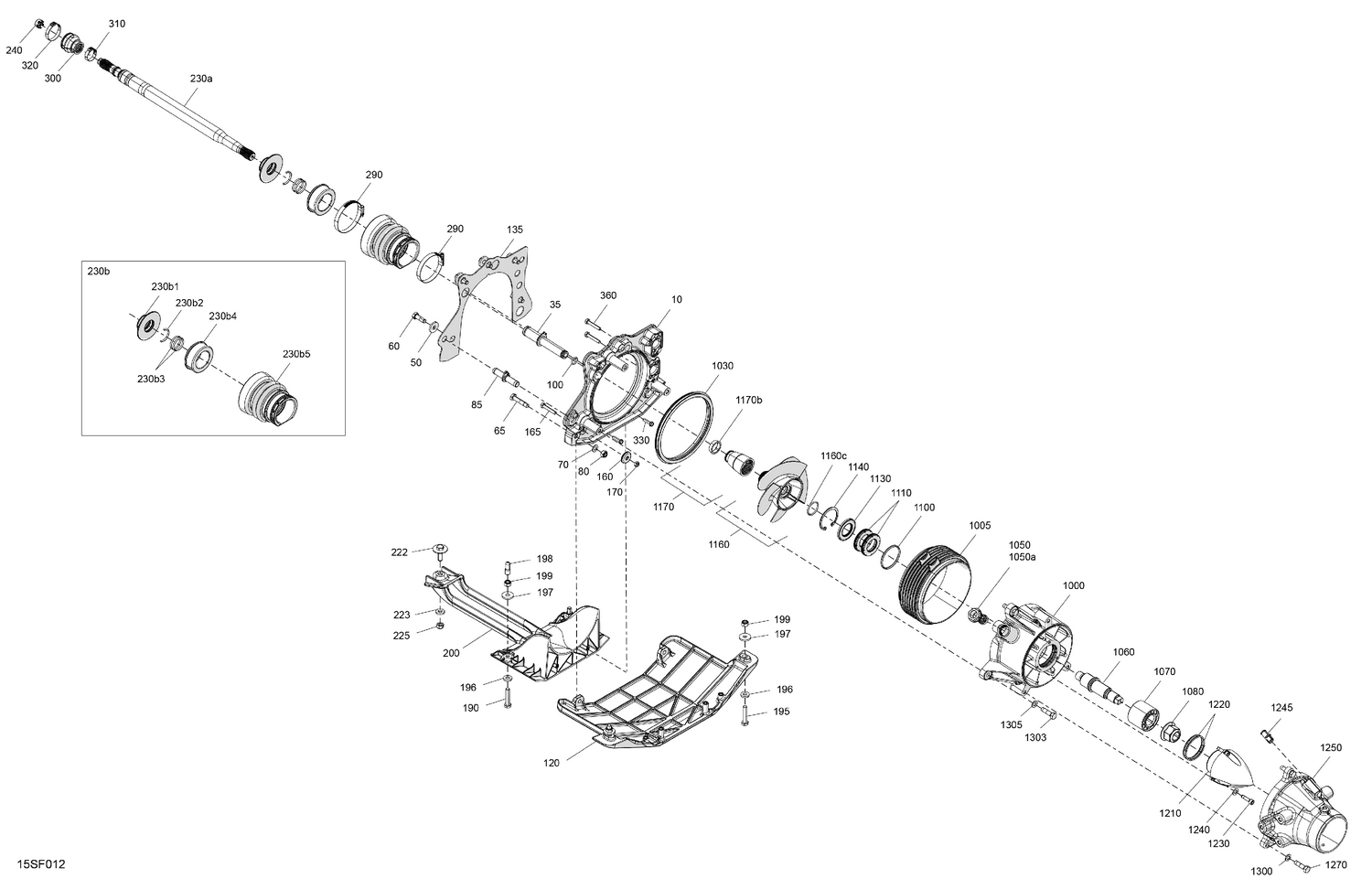

04- Drive - Propulsion
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 271001956 | Anodized Pump Support |
| 35 | 271002377 | Through Hull Fitting |
| 50 | 279000336 | Flat Washer |
| 60 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 65 | 250000230 | Hex. Screw M8 X 40, Scotch Grip |
| 70 | 234081600 | Stainless, Flat Washer 8 mm |
| 80 | 232581200 | Hex. Elastic Nut M8 Brass |
| 85 | 271002378 | Through Hull Fitting |
| 100 | 293300006 | O-Ring |
| 120 | 271001840 | Riding Plate |
| 135 | 271001958 | Gasket |
| 160 | 271001920 | Anode Zinc |
| 165 | 207363560 | Screw Hex. M6 X 35, Scotch Grip |
| 170 | 232561200 | Brass Elastic Stop Nut M6 |
| 190 | 207184060 | Hex. Screw M8 X 40 |
| 195 | 207184060 | Hex. Screw M8 X 40 |
| 196 | 293050001 | Flat Washer M8.5 x 18 |
| 197 | 279000336 | Flat Washer |
| 198 | 293000105 | Cap Plug |
| 199 | 232581200 | Hex. Elastic Nut M8 Brass |
| 200 | 271002011 | Pump Grate |
| 222 | 250000967 | Hex Sems Screw M8 X 30 |
| 223 | 293050001 | Flat Washer M8.5 x 18 |
| 225 | 232581200 | Hex. Elastic Nut M8 Brass |
| 230a | 271002205 | Propeller Shaft |
| 230b1 | 271002206 | Rotary Ring |
| 230b2 | 271001575 | C-Clip |
| 230b3 | 293300219 | O-Ring |
| 230b4 | 271002109 | Carbon Ring |
| 230b5 | 271002168 | Bellow Ass'y |
| 240 | 271002113 | Drive Shaft Plug |
| 290 | 293650179 | Tridon Clamp This part replaces 293650279. |
| 300 | 271002126 | Protector Sleeve |
| 310 | 293650354 | Crimp Clamp |
| 320 | 293650358 | Crimp Clamp |
| 330 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 360 | 207363560 | Screw Hex. M6 X 35, Scotch Grip |
| 1000 | 267000856 | Impeller Housing |
| 1005 | 267001187 | Wear Ring |
| 1030 | 293200134 | Neoprene Seal |
| 1050a | XXX | Not Available As Spare Parts |
| 1060 | 267000581 | Impeller Shaft |
| 1070 | 271002183 | Angle Bearing |
| 1080 | 250100104 | Elastic Flange Nut M20 |
| 1100 | 293300090 | O-Ring |
| 1110 | 271002071 | Seal |
| 1130 | 293200191 | Oil Seal |
| 1140 | 293370038 | Circlip |
| 1160c | 293300044 | O-Ring |
| 1170b | XXX | Not Available As Spare Parts |
| 1210 | 267000769 | Impeller Cover |
| 1220 | 293300096 | O-Ring |
| 1230 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 1240 | 234061600 | Stainless Flat Washer M6 |
| 1245 | 267000782 | Siphon Tube |
| 1250 | 267000909 | Venturi |
| 1270 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 1300 | 234080600 | Flat Washer M8, Stainless |
| 1303 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
