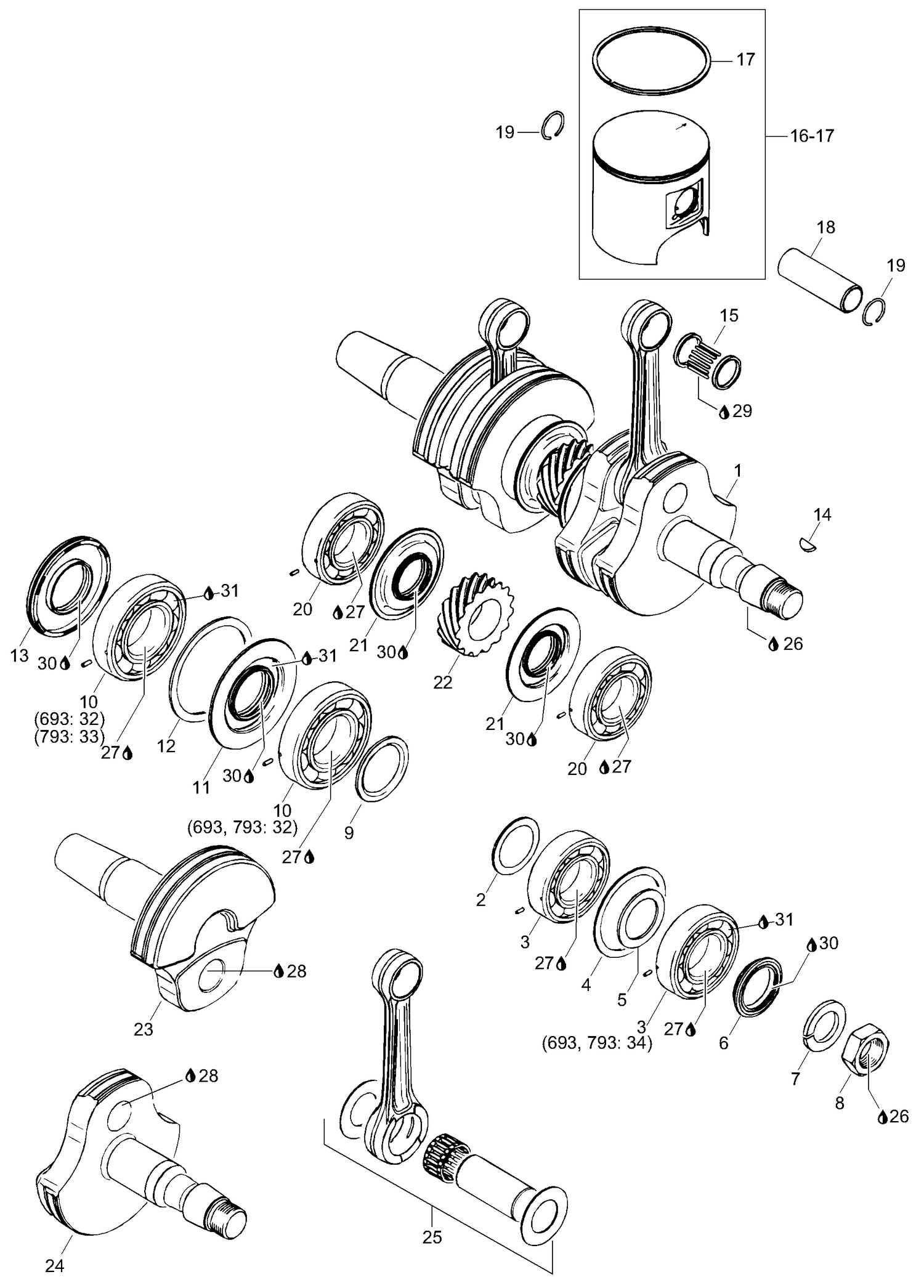

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Spacer - DOES NOT APPLY TO THIS MODEL |
| 3 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832635. |
| 4 |
Not |
Available As Spare Part - Retaining disk - DOES NOT APPLY TO THIS MODEL |
| 5 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 6 |
420931795 |
Oil Seal This part replaces 420931792. |
| 7 |
420945759 |
Lock washer |
| 8 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 9 |
Not |
Available As Spare Part - Shim, 2 mm - DOES NOT APPLY TO THIS MODEL |
| 10 |
Not |
Available As Spare Part - Bearing 6207 assy - DOES NOT APPLY TO THIS MODEL |
| 11 |
420931910 |
Oil seal |
| 12 |
420926190 |
Retaining disk |
| 13 |
420931280 |
Oil seal |
| 14 |
420246015 |
Woodruff Key |
| 15 |
420832445 |
Needle Bearing This part replaces 420832425. |
| 17 |
420815226 |
SEMI-TRAPEZ RING - Call your local BRP dealership |
| 18 |
420916371 |
GUDGEON PIN - Call your local BRP dealership This part replaces 420916370. |
| 19 |
420845106 |
Piston Circlip |
| 20 |
420832575 |
Ball Bearing 6207 |
| 21 |
420931455 |
Oil seal |
| 22 |
420834355 |
CENTRAL GEAR - Call your local BRP dealership |
| 23 |
420818708 |
CRANKSHAFT, PTO SIDE - Call your local BRP dealership |
| 24 |
420818739 |
CRANKSHAFT, MAG SIDE - Call your local BRP dealership |
| 25 |
420888288 |
ROD REPAIR KIT (MAG) - Call your local BRP dealership |
| 25 |
420888289 |
ROD REPAIR KIT (PTO) - Call your local BRP dealership |
| 26 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 27 |
420297434 |
Loctite anti seize |
| 28 |
420897340 |
Loctite 14486, 250ml |
| 30 |
420899271 |
Klueber petamo |
| 31 |
293550021 |
Isoflex grease, 50g |
| 32 |
420832600 |
Ball Bearing 6208 |
| 33 |
Not |
Available As Spare Part - Ball bearing assy - DOES NOT APPLY TO THIS MODEL |
