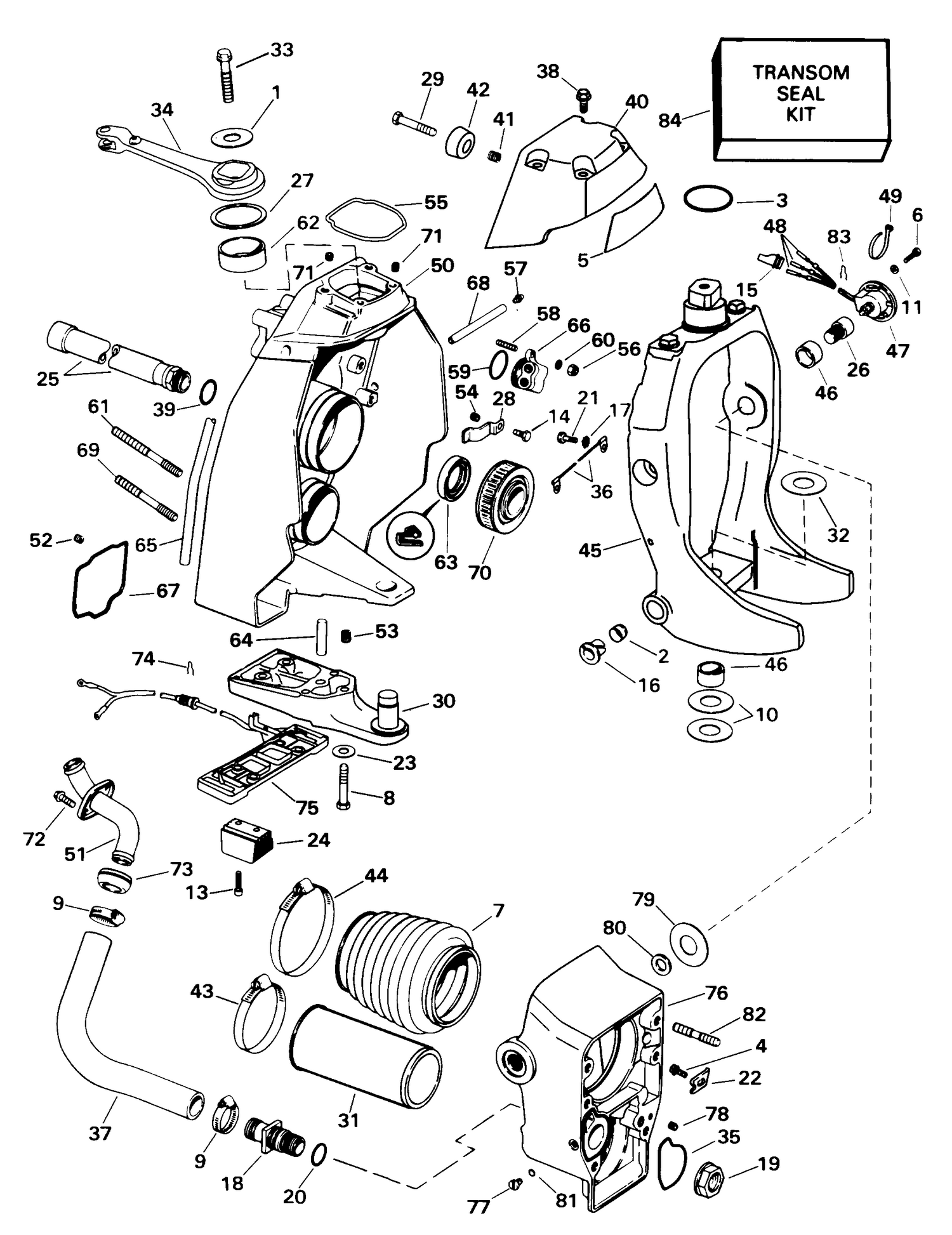

| Ref | Part Number | Description |
|---|
| 1 |
3852540 |
WASHER |
| 2 |
3853424 |
GROMMET, Pivot pin |
| 4 |
0122147 |
VIS, connecteur This part replaces 3852006. |
| 5 |
3857652 |
DECAL, Volvo Penta |
| 7 |
3854127 |
BELLOWS, U-joint |
| 9 |
0912627 |
CLAMP This part replaces 3852602. |
| 10 |
3852557 |
THRUST WASHER |
| 11 |
3853458 |
WASHER, Trim sender |
| 13 |
0959422 |
SCREW, Anode |
| 16 |
3853423 |
BUSHING, Pivot pin |
| 17 |
0329241 |
RONDELLE This part replaces 3852193. |
| 18 |
3852533 |
NIPPLE, Water inlet |
| 19 |
3852534 |
NUT, Nipple |
| 20 |
0911718 |
O-RING, Nipple This part replaces 3852535. |
| 22 |
3852313 |
RETAINER, Shift cable |
| 24 |
0873395 |
ANODE & INSERT ASSY. |
| 25 |
3856800 |
SLEEVE & CONNECTOR ASSY. |
| 26 |
3852316 |
SCREW, Gimbal to pivot |
| 27 |
3852554 |
THRUST WASHER, Steering arm |
| 28 |
3852354 |
CLAMP, Oil line |
| 29 |
3856726 |
SCREW, Cover |
| 30 |
3858194 |
BRACKET, Steering support |
| 31 |
3857511 |
HOSE, Exhaust |
| 32 |
3852557 |
THRUST WASHER |
| 33 |
3853626 |
SCREW, Front mount |
| 34 |
3856093 |
STEERING ARM |
| 35 |
3852560 |
SEAL, Water passage |
| 36 |
3857347 |
GROUND STRAP, Bracket to arm |
| 37 |
3852352 |
HOSE, Water inlet |
| 38 |
3857146 |
SCREW, Cover |
| 40 |
3856985 |
COVER & INSERT |
| 41 |
3852541 |
INSERT, 7/16 -14 |
| 42 |
3852852 |
SEAL, Transom stud |
| 43 |
0912628 |
CLAMP, Exhaust This part replaces 3852603. |
| 44 |
3852604 |
CLAMP, Exhaust |
| 45 |
3857292 |
GIMBAL ASSY. |
| 46 |
3852544 |
BEARING, Steering & tilt |
| 47 |
3855535 |
TRIM SENDER ASSY. |
| 50 |
3857642 |
GIMBAL HOUSING ASSY. |
| 51 |
3853880 |
WATER TUBE & RETAINER |
| 52 |
3852953 |
INSERT, Exhaust pipe |
| 53 |
0910935 |
INSERT, 3/8-16 This part replaces 3852515. |
| 54 |
0910901 |
INSERT This part replaces 3852513. |
| 55 |
3857087 |
SEAL, Cover |
| 59 |
0322501 |
O-RING, Manifold block This part replaces 3852169. |
| 60 |
0329241 |
RONDELLE This part replaces 3852193. |
| 61 |
3852546 |
STUD, Transom, long |
| 62 |
3852547 |
BEARING, Steering |
| 63 |
3852548 |
SEAL, Driveshaft |
| 64 |
3852549 |
PIN, Steering support |
| 65 |
3852550 |
SEAL, Transom |
| 66 |
3852559 |
MANIFOLD BLOCK |
| 67 |
3852846 |
SEAL, Exhaust pipe |
| 68 |
3852564 |
TUBE, Grease |
| 69 |
3852576 |
STUD, Transom, short |
| 70 |
3853807 |
BEARING ASSY., U-joint |
| 71 |
3852567 |
INSERT |
| 72 |
0341013 |
SCREW, Cover This part replaces 3852454. |
| 73 |
3852556 |
BUSHING, Water tube |
| 74 |
3852555 |
RETAINER, Plug |
| 75 |
3857676 |
ANODE/SENSOR ASSY. |
| 76 |
3857979 |
Hsg& Washer Ay This part replaces 3857724. |
| 77 |
3852536 |
PLUG, Water drain |
| 78 |
3852514 |
INSERT, Shift cable retainer |
| 79 |
3852558 |
WASHER, Gimbal to pivot hsg. |
| 80 |
3852697 |
THRUST WASHER, Pivot screw |
| 81 |
0911311 |
O-RING, Plug This part replaces 3852523. |
| 82 |
3852551 |
STUD, Pivot to gear housing |
| 83 |
3852555 |
RETAINER, Plug |
