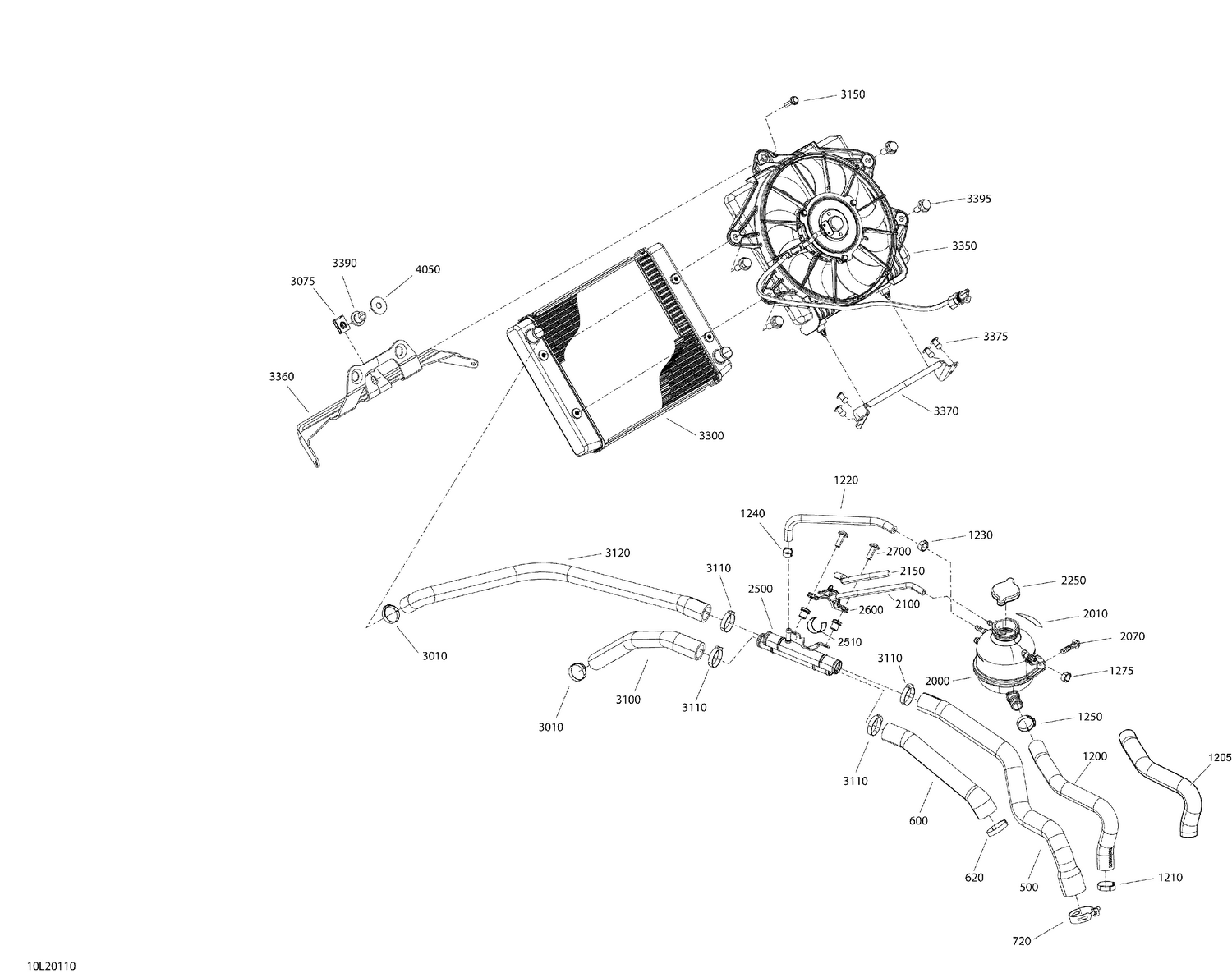

03- Cooling - System - LX
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1200 | 509001083 | Hose Coolant Tank |
| 1205 | 509000513 | Protector Tube 32 mm |
| 1210 | 293650099 | Crimp Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2010 | 516009935 | Warning Decal, Hot liquid |
| 2070 | 241152060 | Hex. Flange Screw K50 X 20 |
| 2100 | 415110000 | Polyurethane Hose 5.2 mm |
| 2150 | 504153074 | Tube Protector This part replaces 504152900. |
| 2250 | 509000180 | Radiator Pressure Cap |
