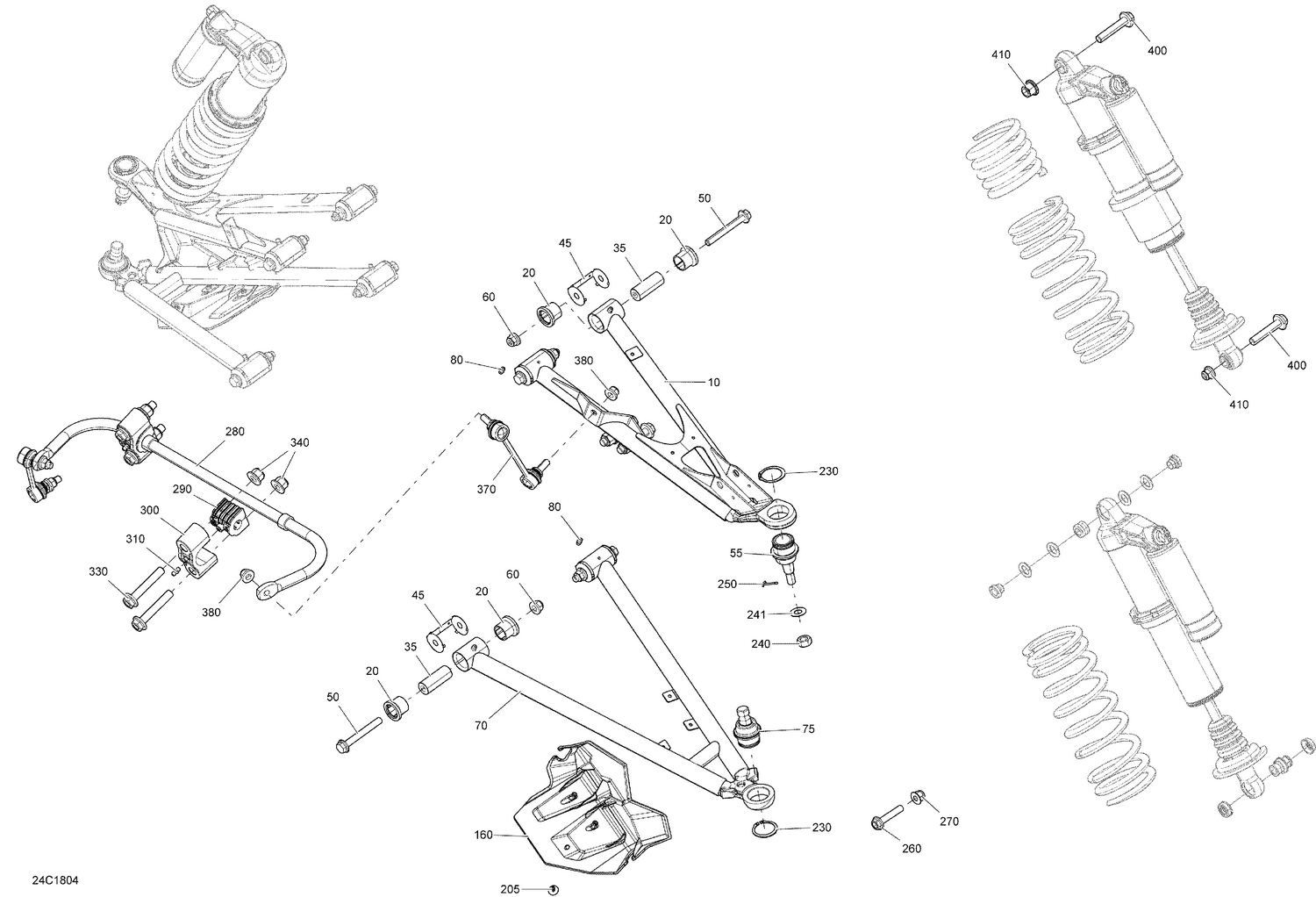

07- Front Suspension Maverick
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 706204409 | Suspension Arm Bushing This part replaces 706201659. |
| 35 | 706201590 | Sleeve |
| 45 | 706201660 | Wear Plate |
| 50 | 207608046 | Hex Flange Screw M10 X 80 |
| 55 | 706202044 | Ball Joint |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 75 | 706202045 | Ball Joint |
| 80 | 408200700 | Grease Fitting |
| 160 | 706202808 | LH Joint Protector |
| 160 | 706202809 | RH Joint Protector |
| 205 | 293150104 | Pop Rivet 3/16" |
| 230 | 293370035 | Circlip |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer This part replaces 250200086. |
| 250 | 211400017 | Cotter Pin |
| 260 | 207605044 | Hex. Flange Screw M10 X 50 |
| 270 | 233201414 | Hex. Flange Elastic Nut M10 |
| 280 | 706202687 | Stabilizer Bar Ass'y |
| 290 | 706204802 | Stabilizer Bar Bushing This part replaces 706002535. |
| 300 | 706002303 | Clamp |
| 310 | 408200700 | Grease Fitting |
| 330 | 250000858 | Hex. Flange Screw M12 X 70 |
| 340 | 233221416 | Elastic Flange Nut M12 |
| 370 | 706202538 | RH Stabilizer Bar Link |
| 370 | 706202539 | LH Stabilizer Bar Link |
| 380 | 233201436 | Hex. Flange Elastic Nut M10 |
| 400 | 207626046 | Hex. Flange Screw M12 X 60 |
