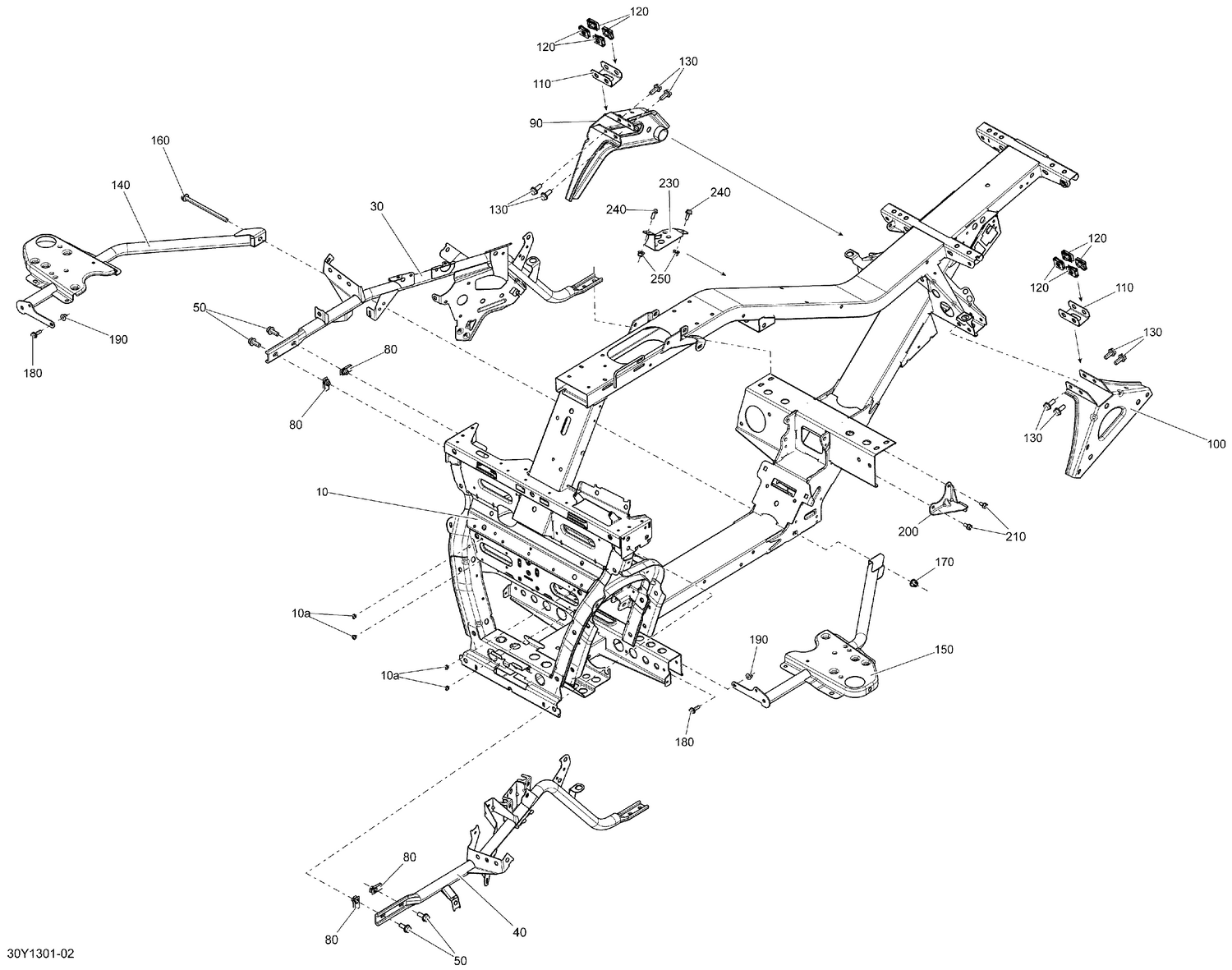

| Ref | Part Number | Description |
|---|
| 10a |
390402200 |
Pop Rivet 3/16" |
| 30 |
705202334 |
RH UPPER SIDE SUPPORT - Call your local BRP dealership |
| 40 |
705202335 |
LH UPPER SIDE SUPPORT - Call your local BRP dealership |
| 50 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 80 |
250100118 |
Panel Nut M8 X 1.25 |
| 90 |
705201873 |
RH REAR SUPPORT - Call your local BRP dealership |
| 100 |
705203969 |
Rear Support LH This part replaces 705201874. |
| 110 |
705202484 |
U-Bracket |
| 120 |
250100069 |
Panel Nut M8 X 1.25 |
| 130 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 140 |
705202680 |
RH LOWER SIDE SUPPORT - Call your local BRP dealership |
| 150 |
705202626 |
LH Painted Lower Lateral Support |
| 160 |
230683034 |
Hex. Flange Screw M8 X 130 |
| 170 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 180 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 190 |
250100130 |
ELASTIC FLANGE NUT M6 - Call your local BRP dealership |
| 200 |
705202587 |
Stopper Swing Arm |
| 210 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 230 |
705205078 |
Latch Support This part replaces 705202891. |
| 240 |
207661646 |
Hex. Flange Screw M6 X 16 |
