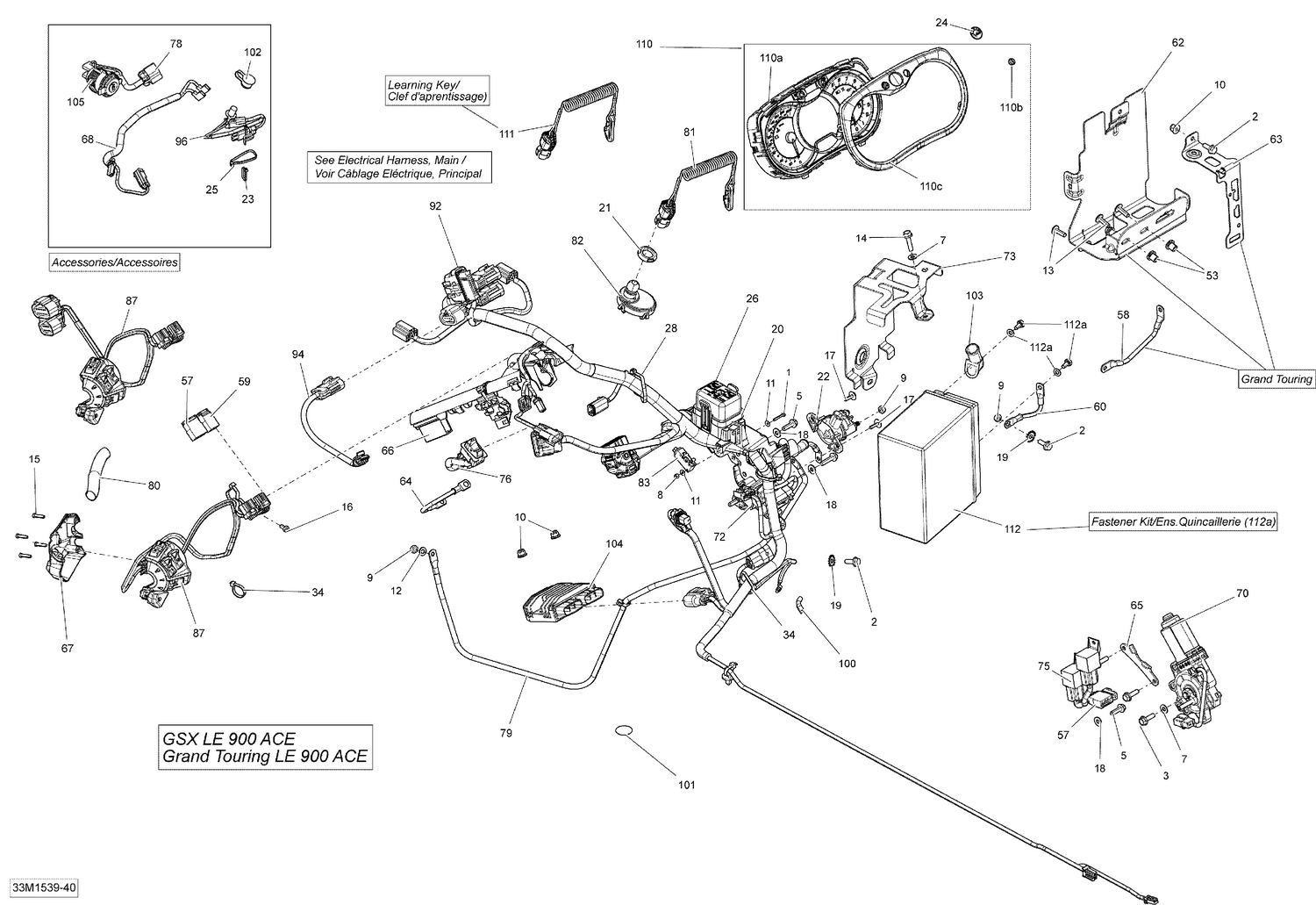

10- Electrical System _33M1540
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207132044 | Hex Screw M3 X 20 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 5 | 210262040 | Hex. Flange Screw M6 X 20 |
| 7 | 224061121 | Flat Washer |
| 8 | 232531423 | Elastic Stop Nut M3 |
| 9 | 232561434 | Elastic Stop Nut M6 |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 234032600 | Flat Washer M3, Stainless |
| 12 | 234061410 | Flat Washer 6 mm |
| 13 | 250000770 | Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 14 | XXX | Not Available As Spare Parts |
| 15 | 250000671 | Torx Screw |
| 16 | 250000690 | Pan Screw Forming, 7500C |
| 17 | 250000725 | Screw M4 X 16 |
| 18 | 250200039 | Flat Washer |
| 19 | 250200041 | Lock Washer Serrated M6 |
| 20 | 278002824 | Case Ass'y with seal, 24 positions |
| 21 | 278002963 | Safety Nut (DESS Switch) |
| 22 | 278003012 | Starter Relay |
| 23 | 293750001 | Tie Wrap 94 mm |
| 24 | 516006224 | BRP Logo 20MM x 2MM This part replaces 704904616. |
| 25 | 293750002 | Tie Wrap 142 mm |
| 26 | 515177671 | Fuse Box Cover |
| 28 | 293750008 | Tie Wrap 368 mm |
| 34 | 414115200 | Tie-Rap 180 mm |
| 53 | 293450275 | Insert |
| 57 | 515175662 | Male Terminal Housing, 6 Circuits |
| 58 | 515175749 | Ground Wire |
| 59 | 515175846 | Male Terminal Housing, 4 Circuits |
| 60 | XXX | Not Available As Spare Parts |
| 62 | 515176970 | BATTERY SUPPORT - Call your local BRP dealership |
| 63 | 515177008 | BATTERY STRIP - Call your local BRP dealership |
| 64 | 515177014 | Ground Wire |
| 65 | 515177039 | PLATE - Call your local BRP dealership |
| 66 | XXX | Not Available As Spare Parts |
| 67 | 515177147 | Housing Plate |
| 68 | 515177188 | Harness Accessories |
| 70 | 515178574 | Electrical Motor Ass'y This part replaces 515177273. |
| 72 | 515177347 | Plate |
| 73 | XXX | Not Available As Spare Parts |
| 75 | 515177350 | Reverse Harness |
| 76 | 515177394 | Switch |
| 78 | XXX | Not Available As Spare Parts |
| 79 | 515177427 | Battery Wire |
| 80 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 81 | 515178286 | Grey, RF Key Ass'y This part replaces 515177457. |
| 82 | 515178840 | Terminal Dess One-Wire This part replaces 515177458. |
| 83 | 515177460 | Switch Ass'y |
| 87 | 515178197 | LH Switch Housing This part replaces 515177677. |
| 92 | 515177753 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 94 | 515177803 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 96 | 515177837 | Visor Harness |
| 100 | 219704405 | TRIM 30000MM LONG - Call your local BRP dealership |
| 101 | 518325560 | Adhesive Patch |
| 102 | 572103300 | Cap |
| 103 | 710000495 | Protector Cap |
| 104 | 710001103 | Voltage Regulator |
| 105 | 710001248 | DC Outlet |
| 110a | 415129355 | Speedometer Button |
| 110b | 415129348 | Gauge Ring |
| 110c | 415129349 | Lens |
| 111 | 860201162 | Key |
