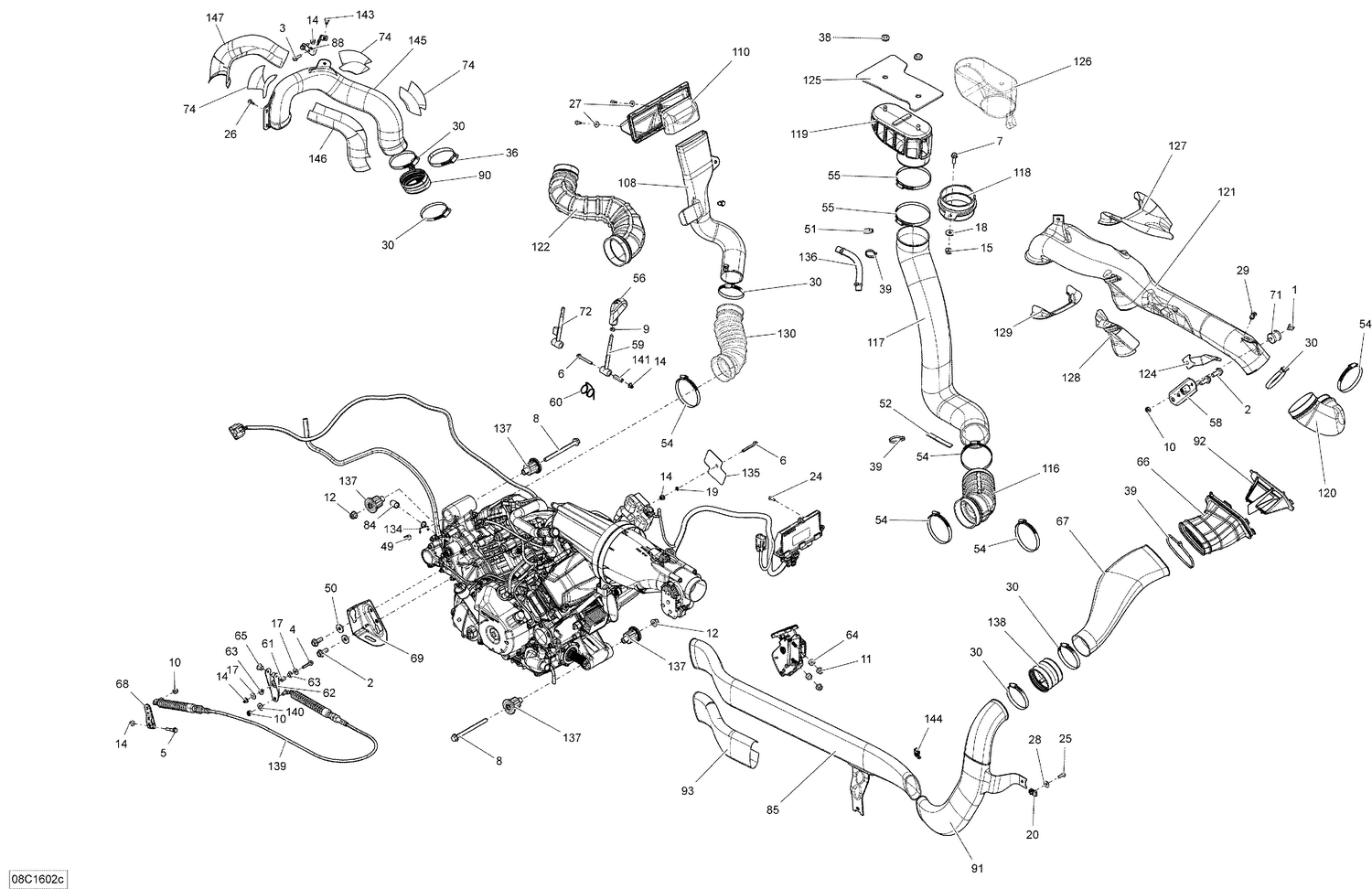

01- Engine and Engine Support - MAX
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207581046 | Flange Screw M8 x 10, Scotch Grip |
| 2 | 207602544 | Hex. Flange Screw M10 X 25 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 5 | 207663544 | Hex. Flange Screw M6 X 35 |
| 6 | 207665044 | Hex. Flange Screw M6 X 50 |
| 8 | 230602546 | Hex. Flange Screw M10 X 125 |
| 9 | 232180491 | Hex. Jam Nut M8 |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 233081416 | Hex. Flange Nut M8 |
| 12 | 233201436 | Hex. Flange Elastic Nut M10 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 17 | 234062410 | Flat Washer 6 mm |
| 19 | 234461608 | External Serrated Lock Washer 6 mm |
| 20 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 24 | 250000720 | Torx Screw K50 X 16 |
| 25 | 250000722 | Torx Screw M6 X 20 |
| 27 | 250200025 | Washer M5 |
| 28 | 250200082 | Flat Washer |
| 29 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 30 | 293650091 | Norma Clamp |
| 36 | 293650118 | Norma Gear Clamp |
| 39 | 293750008 | Tie Wrap 368 mm |
| 49 | 414415200 | Spring Clamp |
| 56 | 707000284 | Lever Handle |
| 58 | 707000707 | Upper Engine Bracket |
| 60 | 707000750 | Lever Arm Spring |
| 61 | 707000801 | Bushing |
| 62 | 707000828 | Lower Lever Arm |
| 63 | 707000847 | Flanged Bushing |
| 64 | 707000848 | Bushing |
| 65 | 707000869 | Flanged Bushing |
| 66 | 707000908 | Adaptor |
| 67 | 707000909 | Primary Air Intake |
| 68 | 707000911 | Lever |
| 69 | 707000919 | Cable Support |
| 71 | 707000949 | Rubber Isolator |
| 74 | 707000991 | Reflective Sheet |
| 83 | 707001166 | Accelerator Pedal |
| 84 | 707001185 | Plug |
| 85 | 707001228 | Air Inlet |
| 88 | 707001232 | Rear Support |
| 90 | 707001274 | Adaptor |
| 91 | 707001339 | Air Inlet |
| 92 | 707001344 | CVT Filter |
| 93 | 707001346 | Reflector |
| 108 | 707001401 | Air Inlet |
| 110 | 707001422 | Filter |
| 134 | 707800506 | Retainer Clip |
| 135 | 710000073 | Insulator Pad |
| 136 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 137 | 707001170 | Anti Vibration Buffer |
| 138 | 707002585 | Flexibale Adaptor This part replaces 707001467. |
| 139 | 707001283 | Shifting Cable |
| 140 | 234001410 | Flat Washer 10 mm |
| 141 | 707001376 | Bushing |
| 142 | 219704549 | Hose This part replaces 219704439. |
| 143 | 210261650 | Hex. Flange Screw M6 X 16 |
| 144 | 710002899 | Clip Tie-Rap |
