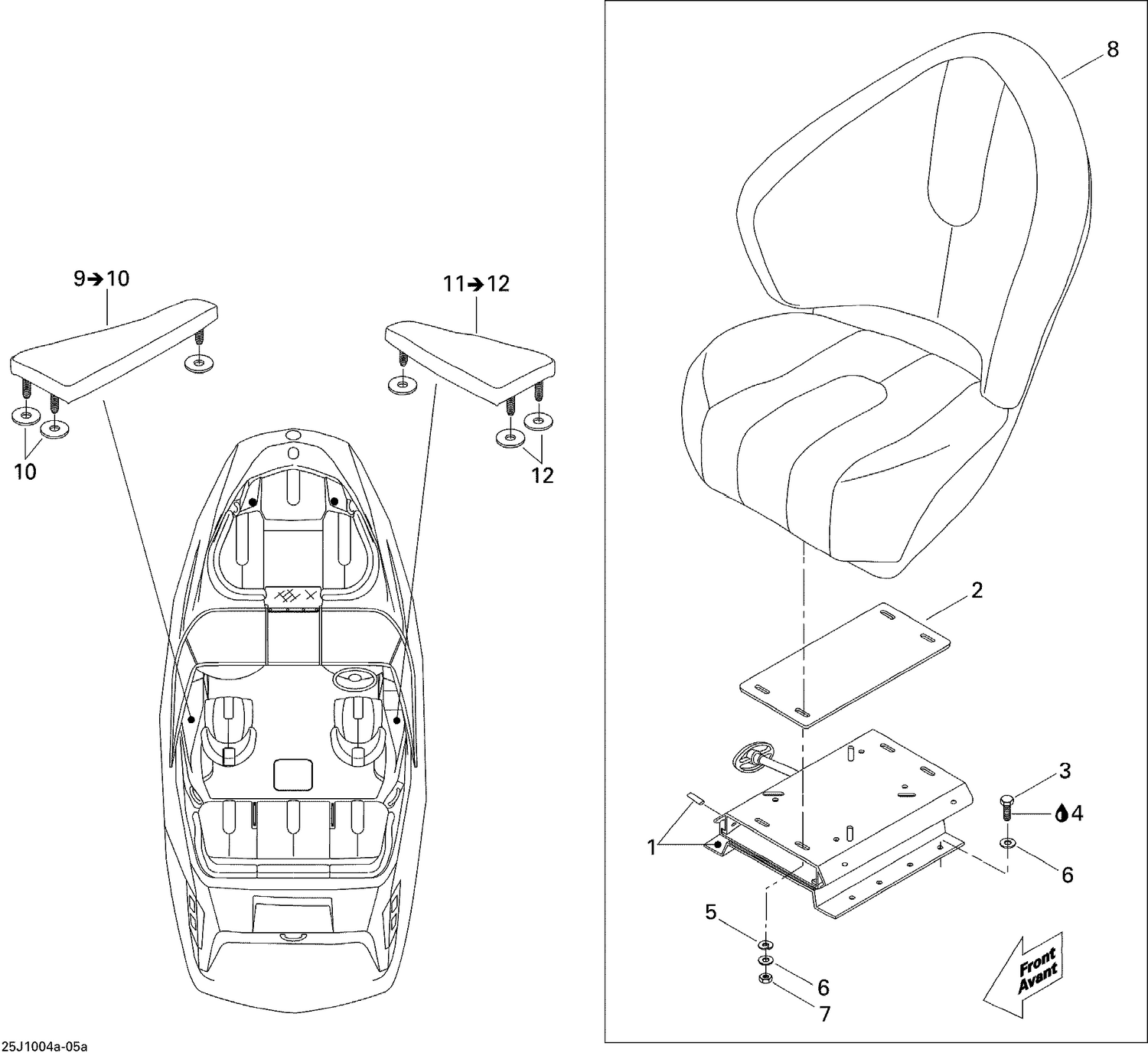

09- Seat 1
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 204614821 | SEAT BASE SHIM - Call your local BRP dealership |
| 3 | 207163560 | Hex. Screw M6 X 35 |
| 4 | 293800060 | Loctite 243, 10 ml |
| 5 | 211200025 | Lock Washer 1/4” |
| 6 | 234062600 | Flat Washer M6, Stainless |
| 7 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 8 | 204614892 | Bucket Seat Ass'y |
| 10 | 234062600 | Flat Washer M6, Stainless |
