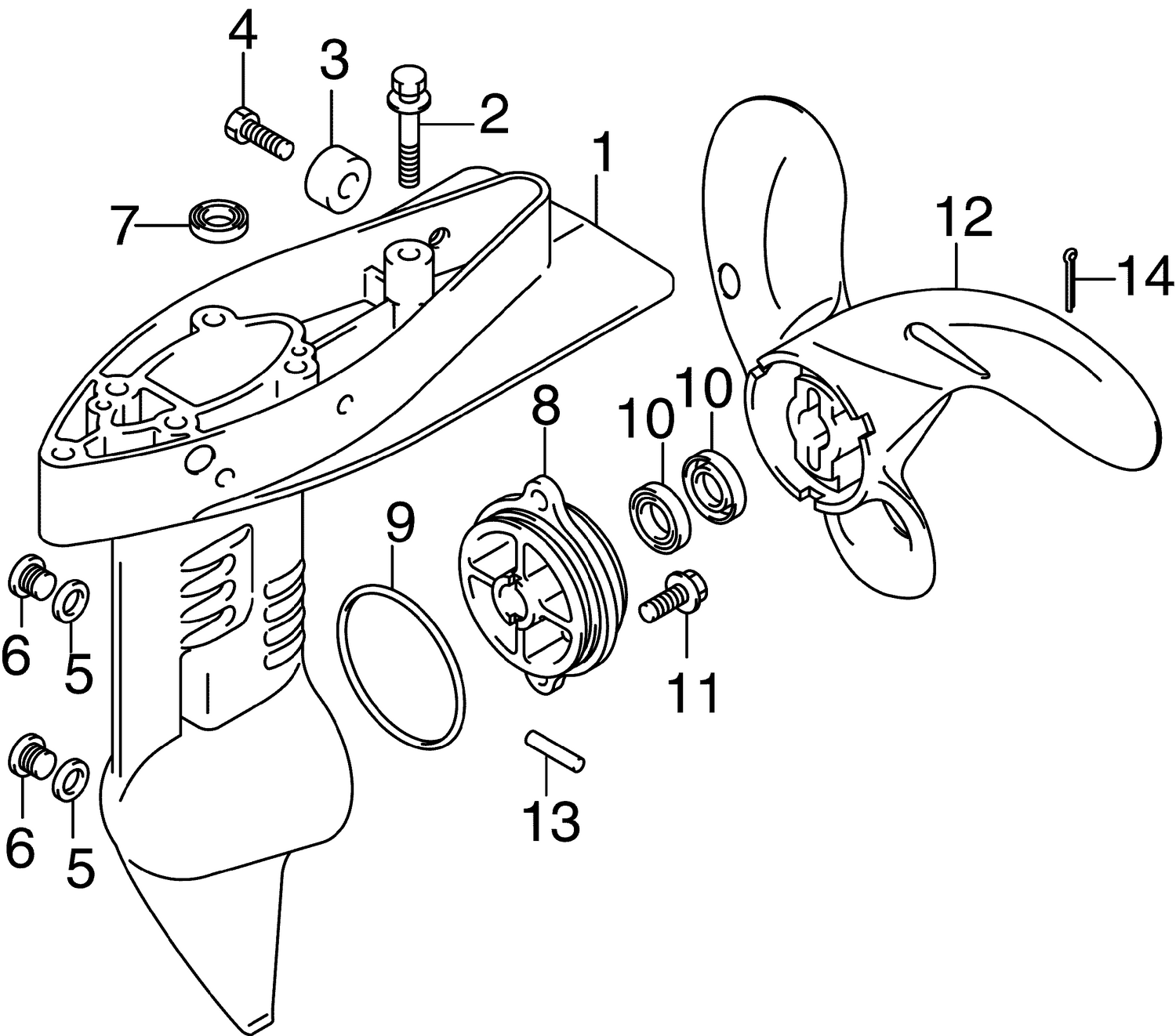

GEARCASE

GEARCASE

Parts (9)

Ref	Part Number	Description
1	5037447	CASE ASSY, GEAR
2	5032876	BOLT
5	5037356	GASKET, Drain plug
6	5037357	PLUG, Drain
7	5037358	SEAL, Driveshaft
8	5037359	HOUSING, Prop shaft bearing
9	5037360	O RING, Bearing housing
12	5037361	PROPELLER, (3X188X135)
13	5030084	DRIVE PIN
