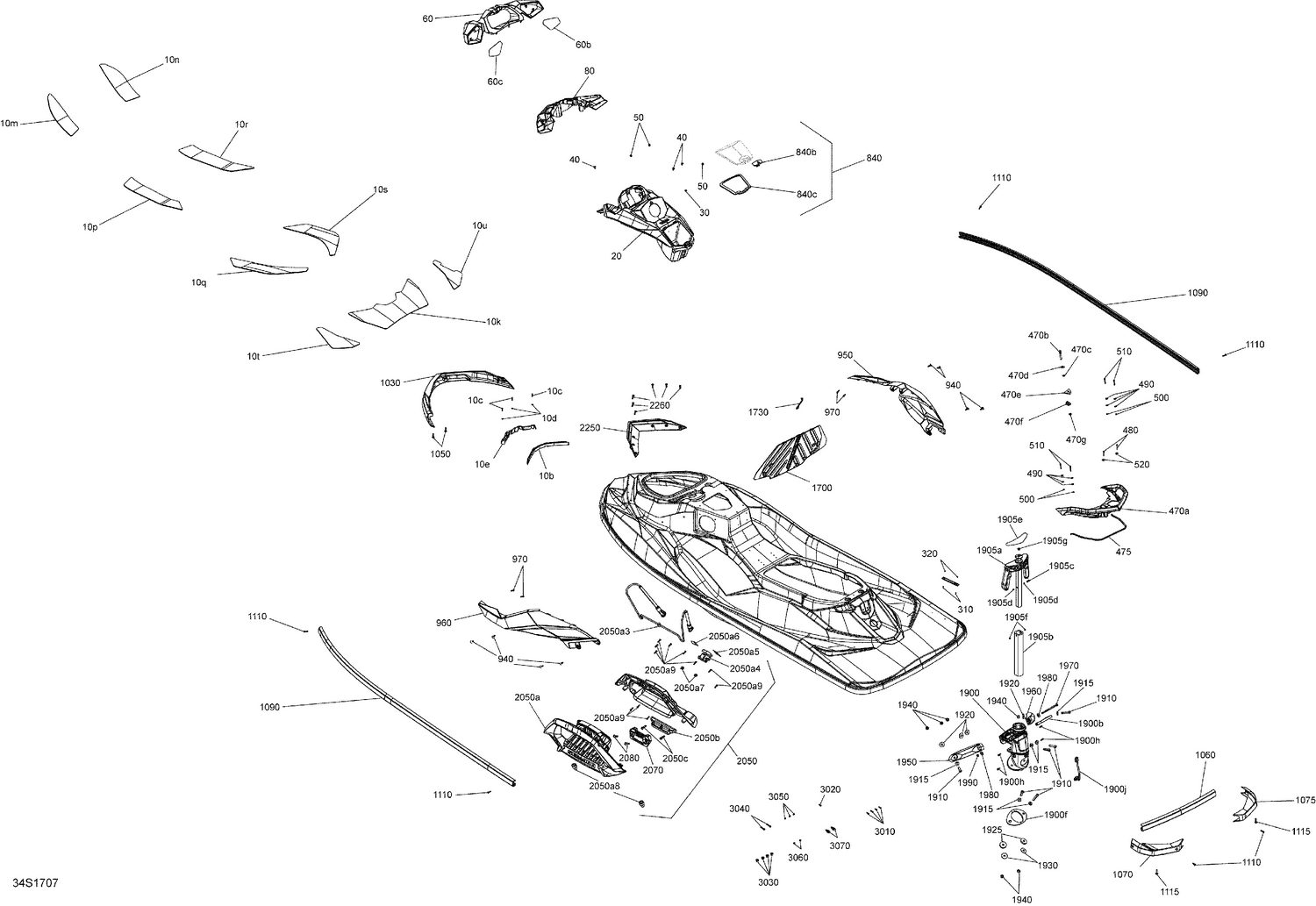

| Ref | Part Number | Description |
|---|
| 10b |
291003897 |
Deck Nose |
| 10c |
241142560 |
Hex. Flange Screw K40 X 25 |
| 10d |
234042600 |
Flat Washer 4 mm, Stainless |
| 10e |
291003704 |
Bumper Support |
| 10k |
291003096 |
Swim Platform Carpet |
| 10m |
291003058 |
Front Carpet LH |
| 10n |
291003059 |
Front Carpet RH |
| 10p |
291003060 |
Front Center Carpet LH |
| 10q |
291003329 |
Rear Center Carpet LH |
| 10r |
291003061 |
Front Center Carpet RH |
| 10s |
291003330 |
Rear Center Carpet RH |
| 10t |
291003062 |
Rear Carpet LH |
| 10u |
291003063 |
Rear Carpet RH |
| 20 |
291004276 |
Console |
| 30 |
293830005 |
Rubber Bumper |
| 40 |
293150123 |
Pop Rivet 3/16" |
| 50 |
293150186 |
Pop Rivet 3/16 |
| 60b |
291003090 |
Mirror RH, With Double-Face Tape |
| 60c |
291003091 |
Mirror LH, With Double-Face Tape |
| 80 |
291004271 |
Deep Black, Mirror Support |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 470a |
291004627 |
Manta Green, Rear Handle Ass'y |
| 470b |
291003877 |
Stud Seat |
| 470c |
232100600 |
Hex. Jam Nut M10 |
| 470d |
234002600 |
Flat Washer 10 mm, Stainless |
| 470e |
269002125 |
Seat Stud Spacer |
| 470f |
269002126 |
SEAT STUD SUPPORT - Call your local BRP dealership |
| 470g |
232501200 |
Elastic Stop Nut M10, Brass |
| 475 |
219704378 |
Gasket 3000Mm Long |
| 480 |
207065060 |
Hex. Screw M6 X 50 |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
232561200 |
Brass Elastic Stop Nut M6 |
| 510 |
207164060 |
Hex. Screw M6 X 40 |
| 520 |
250200022 |
Flat Washer M6.6 X 22 |
| 840b |
264000164 |
Black, Latch This part replaces 264000091. |
| 840c |
293250236 |
Gasket |
| 940 |
293730006 |
Black, Dart |
| 950 |
269502169 |
TRIM_HOOD RH B-400 - Call your local BRP dealership |
| 960 |
269502170 |
TRIM_HOOD LH B-400 - Call your local BRP dealership |
| 970 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 1030 |
291004277 |
Front Bumper |
| 1050 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 1060 |
291004451 |
Black, Side Bumper |
| 1070 |
291004278 |
Black, Corner Bumper |
| 1075 |
291004279 |
Black, Corner Bumper |
| 1090 |
291004451 |
Black, Side Bumper |
| 1110 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 1115 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 1700 |
291004572 |
Divider Ass'y |
| 1730 |
269502111 |
Holding Strap |
| 1900b |
295100740 |
Replacing Kit for Pylon Strap This part replaces 293250183. |
| 1900f |
293250151 |
Seal |
| 1900h |
241141360 |
Hex. Flange Screw K40 X 13 |
| 1900j |
269501299 |
Strap |
| 1905a |
291004766 |
Molded Handle This part replaces 291002812. |
| 1905b |
291002642 |
ALUMINUM POST - Call your local BRP dealership |
| 1905c |
269501651 |
Ball Spring |
| 1905d |
293350062 |
Ball 1/4" |
| 1905e |
219903137 |
Warning Label |
| 1905f |
293150167 |
Type "U" Metallic Drive Screw |
| 1905g |
291001519 |
Bumper Plug, Black |
| 1910 |
250000452 |
Torx Screw M8 X 40, Stainless |
| 1915 |
293050001 |
Flat Washer M8.5 x 18 |
| 1920 |
234082600 |
Flat Washer 8 mm, Stainless |
| 1925 |
293830037 |
Rubber Washer |
| 1930 |
250200175 |
Flat Washer 8 mm, Stainless This part replaces 250200011. |
| 1940 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 1950 |
291002711 |
Lateral Arm LH |
| 1960 |
291002712 |
Lateral Arm RH |
| 1970 |
230060060 |
Hex. Screw M6 X 100 |
| 1980 |
234062600 |
Flat Washer M6, Stainless |
| 1990 |
232561200 |
Brass Elastic Stop Nut M6 |
| 2050a |
295100453 |
Wakeboard Rack This part replaces 291003101. |
| 2050a3 |
291002979 |
Elastic Rope Ass'y |
| 2050a4 |
291002980 |
Latch |
| 2050a5 |
219903228 |
Warning WAKE |
| 2050a6 |
219903240 |
WAKE-PRO Decal |
| 2050a7 |
293830005 |
Rubber Bumper |
| 2050a8 |
293830119 |
Rubber Buffer |
| 2050a9 |
250000287 |
Flange Torx Screw K40 X 16 |
| 2050b |
291002864 |
Lower Anchorage |
| 2050c |
250000466 |
Torx Screw Plastite M6 |
| 2070 |
291003104 |
Upper Anchorage |
| 2080 |
250000466 |
Torx Screw Plastite M6 |
| 2250 |
291004273 |
Deep Black, Body Deflector |
| 2260 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 3010 |
250000287 |
Flange Torx Screw K40 X 16 |
| 3020 |
250000735 |
Torx Screw K40 X 16 |
| 3030 |
293150123 |
Pop Rivet 3/16" |
| 3040 |
207153060 |
Hex. Flange Screw M5 X 30 |
| 3050 |
211200035 |
Flat Washer |
| 3060 |
232551200 |
Elastic Stop Nut 5 mm |
