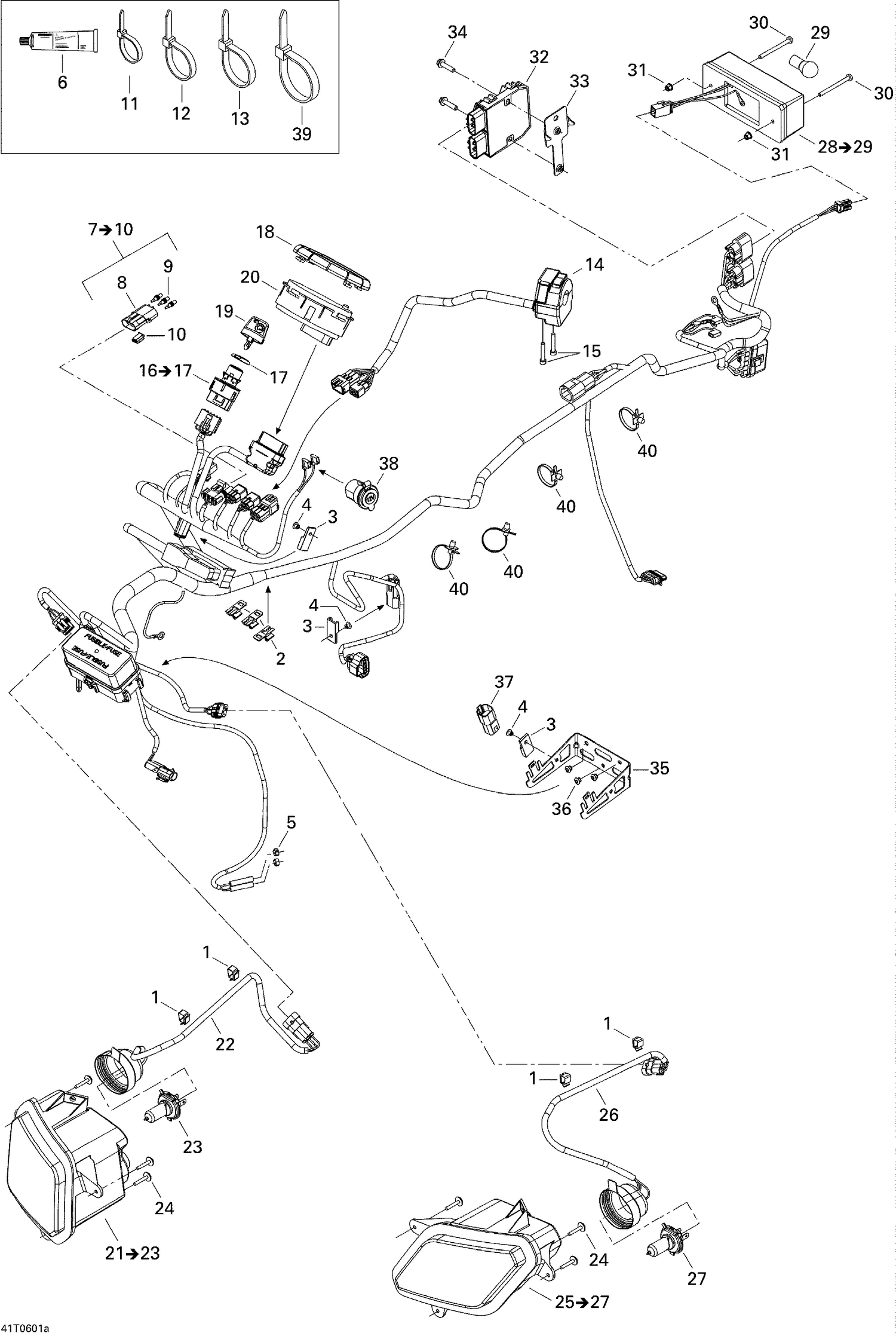

| Ref | Part Number | Description |
|---|
| 1 |
414227300 |
Clip |
| 2 |
515175283 |
Housing Support |
| 3 |
270000141 |
Clip |
| 4 |
390402400 |
Pop Rivet 3/16" |
| 5 |
293650100 |
Oetiker Clamp |
| 6 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 9 |
278000216 |
Wire Seal |
| 10 |
409014200 |
CLIP - Call your local BRP dealership |
| 11 |
293750001 |
Tie Wrap 94 mm |
| 12 |
414115200 |
Tie-Rap 180 mm |
| 14 |
710000791 |
Multi-Fonction Handle |
| 15 |
205053588 |
Socket Head Screw M5 X 35 |
| 17 |
Not |
Available As Spare Part - Safety Switch Nut |
| 18 |
710000353 |
TRIM RING - Call your local BRP dealership |
| 19 |
710000817 |
Black, Electronic Key |
| 20 |
710000919 |
SPEEDOMETER - Call your local BRP dealership |
| 22 |
710000828 |
LIGHT HARNESS - Call your local BRP dealership |
| 23 |
710000871 |
Bulb, 12V 35/35W |
| 24 |
250000101 |
Plastite Screw Type K-40, M4 X 25 |
| 26 |
710000828 |
LIGHT HARNESS - Call your local BRP dealership |
| 27 |
710000871 |
Bulb, 12V 35/35W |
| 29 |
520000758 |
Bulb This part replaces 410504100. |
| 30 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 31 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 32 |
710001103 |
Voltage Regulator This part replaces 710000870. |
| 33 |
710001262 |
RECTIFIER SUPPORT - Call your local BRP dealership This part replaces 710000719. |
| 34 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 35 |
710002176 |
FUSE SUPPORT - Call your local BRP dealership This part replaces 710000795. |
| 36 |
390402400 |
Pop Rivet 3/16" |
| 37 |
278002704 |
Diagnostic Connector This part replaces 278001725. |
| 38 |
861507200 |
Outlet Power Kit, 12 Volts This part replaces 710000024. |
| 39 |
293750041 |
Tie-rap 627 mm |
