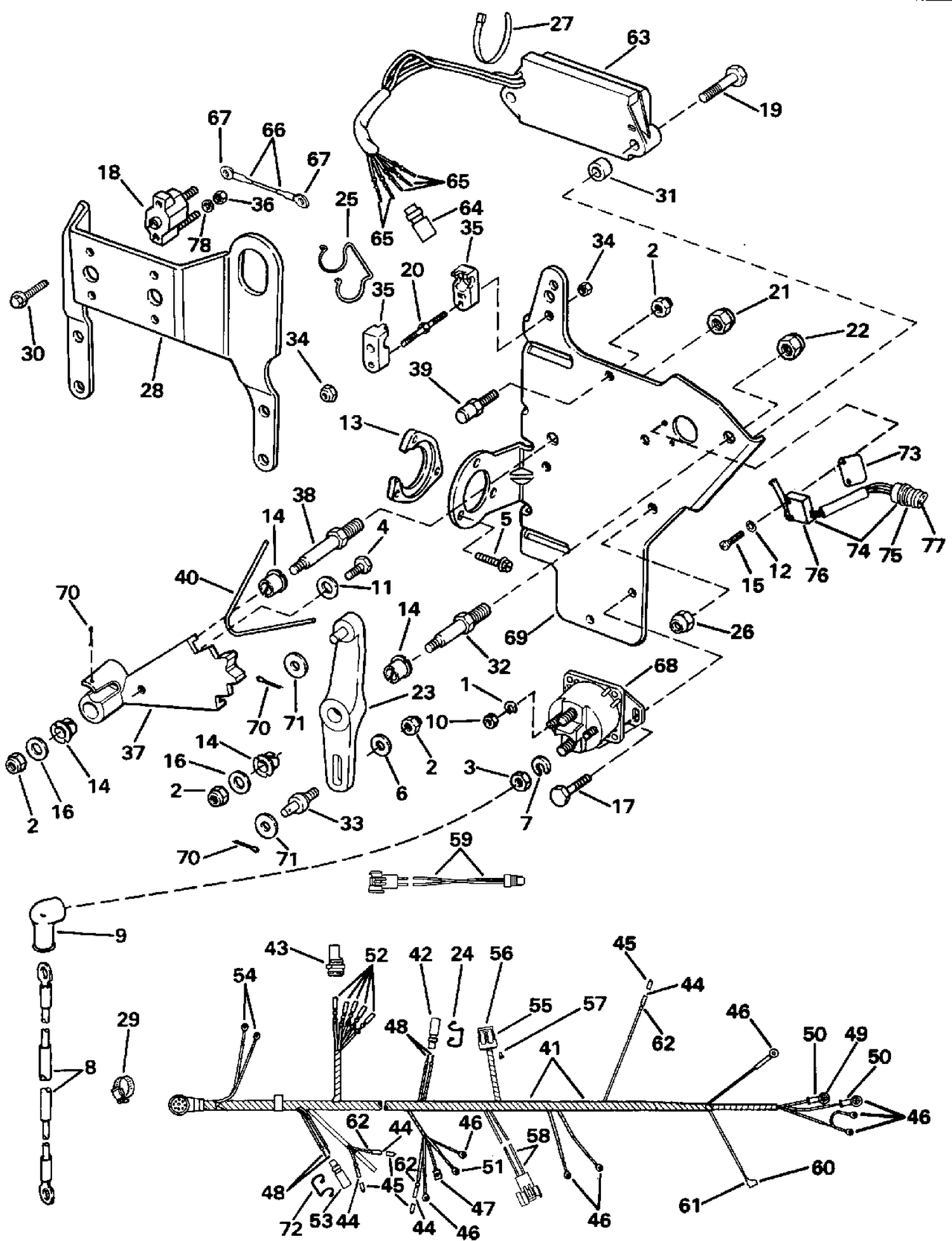

| Ref | Part Number | Description |
|---|
| 4 |
0915042 |
SCREW, Shift interrupter spring |
| 8 |
3854027 |
Cable Ay This part replaces 0986874. |
| 9 |
3852487 |
BOOT, Battery cable This part replaces 0910111. |
| 11 |
0328738 |
LOCKWASHER |
| 13 |
3852825 |
RETAINER, Engine cable This part replaces 0913770. |
| 16 |
0328738 |
LOCKWASHER |
| 17 |
0317753 |
SCREW |
| 18 |
0987704 |
CIRCUIT BREAKER, 50 Amp |
| 19 |
0325115 |
SCREW, Oil tank/EMM mount This part replaces 0321483. |
| 20 |
3850682 |
STUD, Anchor block This part replaces 0914682. |
| 23 |
0987553 |
LEVER ARM & PIN |
| 24 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 25 |
0512743 |
DISPOSITIF DE RETENUE |
| 26 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 28 |
3853374 |
BRACKET, Circuit breaker This part replaces 0914941. |
| 29 |
3853786 |
CLAMP INSTRUMENT CABLE This part replaces 0980577. |
| 30 |
3853620 |
SCREW, Circuit breaker This part replaces 0915982. |
| 31 |
0911769 |
SPACER, Shift assist |
| 32 |
0914616 |
SHAFT, Shift lever |
| 33 |
0913263 |
PIN, Shift lever |
| 35 |
3852836 |
ANCHOR BLOCK This part replaces 0913795. |
| 37 |
0912593 |
SHIFT ACTUATOR |
| 38 |
0912094 |
SHAFT Pivot |
| 39 |
0985588 |
PIN, Stop |
| 40 |
0912686 |
SPRING, Shift interrupter |
| 41 |
0987516 |
CABLE ASSY., Engine |
| 42 |
3853565 |
CONNECTOR This part replaces 0915842. |
| 45 |
0328074 |
CACHE, cosse prise |
| 51 |
0513352 |
TERMINAL, Oil pressure |
| 53 |
3853565 |
CONNECTOR This part replaces 0915842. |
| 54 |
3852527 |
RING TERMINAL This part replaces 0911523. |
| 58 |
0986660 |
LEAD, Coil |
| 59 |
3854084 |
CABLE, Distributor This part replaces 0987229. |
| 61 |
0914745 |
COVER |
| 63 |
0987566 |
SHIFT ASSIST MODULE |
| 66 |
3853974 |
LEAD, Circuit breaker to breaker This part replaces 0986452. |
| 68 |
0586842 |
SOLENOID This part replaces 0985064. |
| 69 |
0915809 |
BRACKET & DOWEL PIN |
| 72 |
0512742 |
DISPOSITIF DE RETENUE, connecteur |
| 73 |
0985920 |
PLATE, Spacer |
| 74 |
0987602 |
SWITCH & CONNECTOR |
| 75 |
3853564 |
CONNECTOR This part replaces 0915841. |
| 76 |
0984148 |
SWITCH & TERMINAL |
