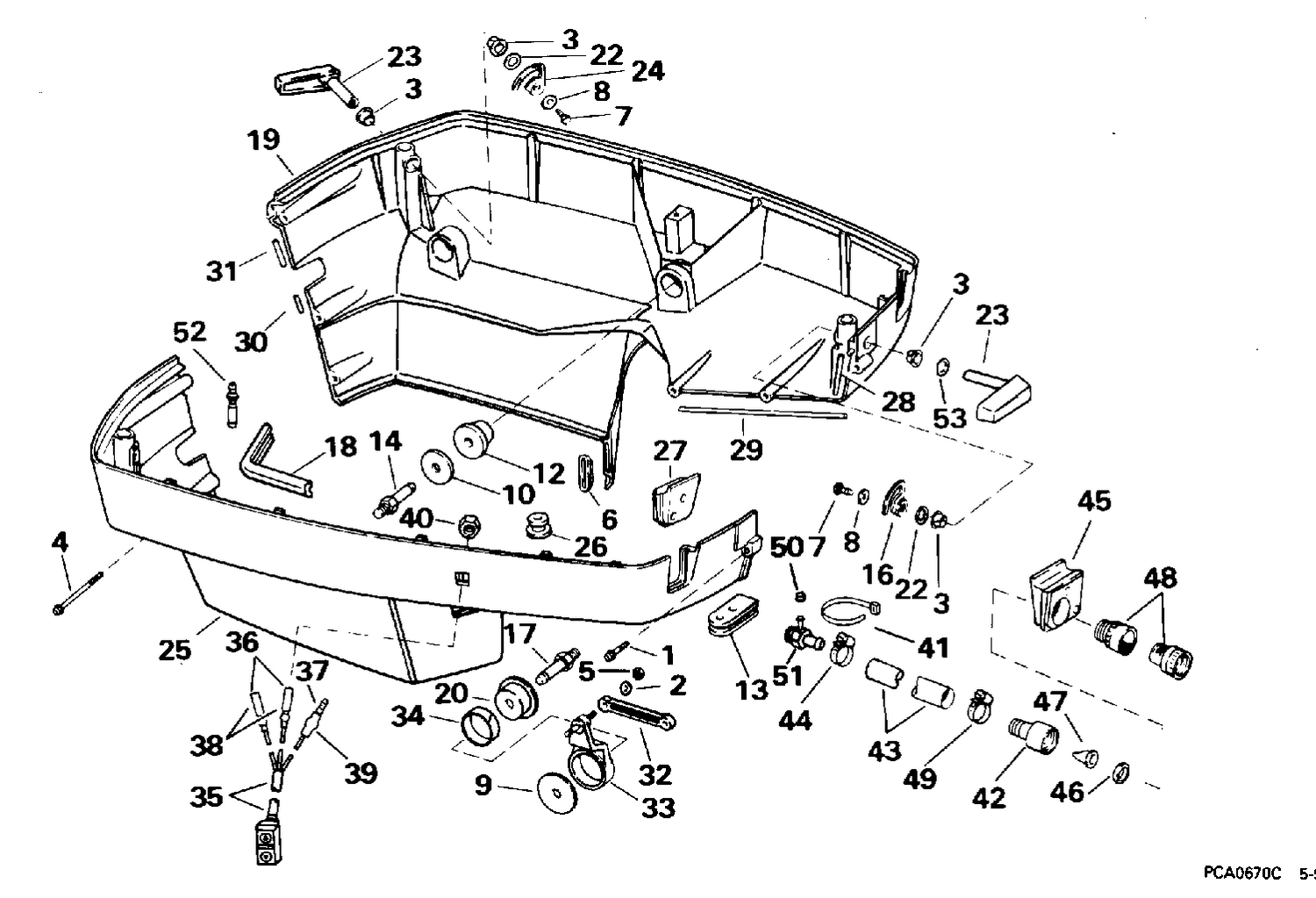

| Ref | Part Number | Description |
|---|
| 1 |
0328597 |
SCREW, Engine cover |
| 2 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 4 |
0329750 |
SCREW, Cover, rear |
| 9 |
0912138 |
WASHER, Transfer lever |
| 10 |
0349556 |
Washer This part replaces 0329749. |
| 12 |
0349557 |
MOUNT This part replaces 0328584. |
| 13 |
0331896 |
Grommet, Plug - Trim lead hole |
| 14 |
0329743 |
STUD, Cover mount |
| 16 |
0332577 |
HOOK, Front and stbd. rear |
| 17 |
0912140 |
PIN, Lower mount, stbd. front |
| 18 |
0339482 |
SEAL, Cover |
| 19 |
0432281 |
COVER ASSY., Port |
| 20 |
0912130 |
CUP, Mounting |
| 23 |
0434758 |
LATCH HANDLE |
| 24 |
0332578 |
HOOK, Rear port |
| 25 |
0435778 |
COVER, Stbd. |
| 26 |
0333011 |
PLUG |
| 27 |
0331939 |
GROMMET, Remote cables |
| 28 |
SEAL, |
Engine cover front, upper, 3.75 in. |
| 29 |
SEAL, |
Front, 9.45 in. |
| 30 |
SEAL, |
Rear lower, 2.30 in. |
| 31 |
SEAL, |
Top rear, 3.75 in. |
| 32 |
0912263 |
LINK, Transfer level |
| 33 |
0984166 |
TRANSFER LEVER AND PIN |
| 34 |
0912139 |
BUSHING, Transfer level |
| 35 |
0584842 |
SWITCH ASSY., Tilt |
| 42 |
0338704 |
NIPPLE, Flush |
| 43 |
0338582 |
HOSE |
| 45 |
0338588 |
GROMMET, Cables |
| 46 |
0338587 |
RETAINER, Check valve |
| 47 |
0338711 |
CHECK VALVE |
| 48 |
0435551 |
COUPLER, Quik-knec |
| 49 |
0324825 |
CLAMP, Cylinder head hose |
| 50 |
0322892 |
CAP, Adapter elbow |
| 51 |
0340020 |
FITTING, Adapter |
| 52 |
0436070 |
NIPPLE & VALVE ASSY. |
| 0435598 |
0435598 |
FLUSH KIT ASSY. |
