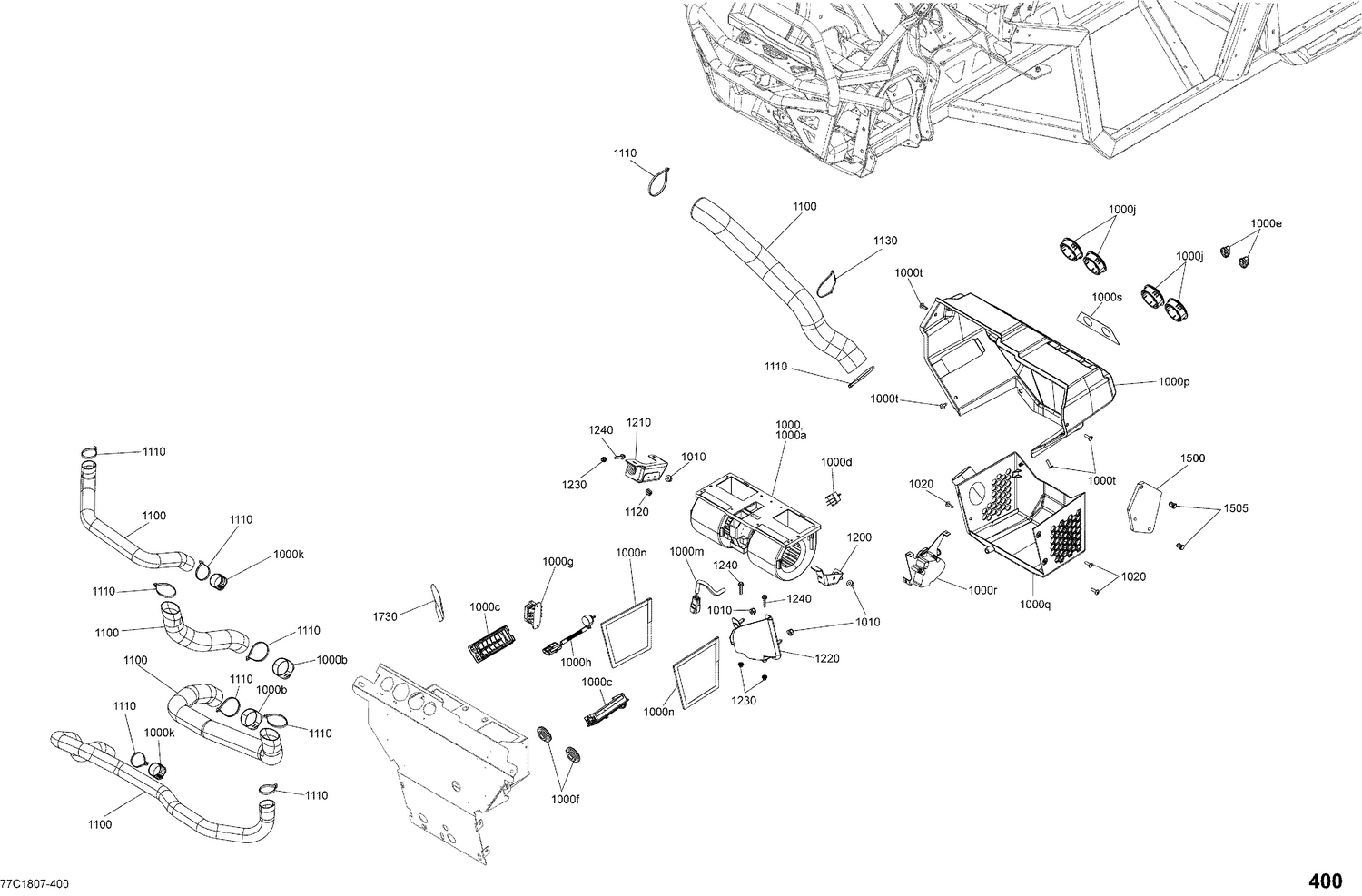

09- Cab Interior - Dashboard
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 520001536 | Fan |
| 1000b | 520001672 | Duct Adaptor |
| 1000c | 520001673 | Rectangular Grid |
| 1000d | 705800585 | Potentiometer Switch Knob Ass'y This part replaces 520001674. |
| 1000e | 705800585 | Potentiometer Switch Knob Ass'y This part replaces 520001675. |
| 1000f | 520001676 | Grommet 5/8'' |
| 1000g | 520001679 | FUSE BOX - Call your local BRP dealership |
| 1000h | 705800585 | Potentiometer Switch Knob Ass'y This part replaces 520001680. |
| 1000j | 520001681 | Round Grid |
| 1000k | 520001682 | Duct Adaptor |
| 1000m | 520001683 | WIRING HARNESS - Call your local BRP dealership |
| 1000n | 520001537 | Filter |
| 1000p | 520001546 | CONSOLE - Call your local BRP dealership |
| 1000q | 520001626 | Lower Cover |
| 1000r | 520001685 | Valve Ass'y 5/8'' |
| 1000s | 520001686 | HVAC OVERLAY - Call your local BRP dealership |
| 1000t | 250000722 | Torx Screw M6 X 20 |
| 1010 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1020 | 250000722 | Torx Screw M6 X 20 |
| 1100 | 520001643 | Air Duct Kit |
| 1110 | 293750008 | Tie Wrap 368 mm |
| 1120 | 293750062 | Tie Rap Clip |
| 1130 | 293750008 | Tie Wrap 368 mm |
| 1200 | 520001619 | LH Support |
| 1210 | 520001621 | RH Support |
| 1220 | 520001623 | Central Support |
| 1230 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1240 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 1505 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
