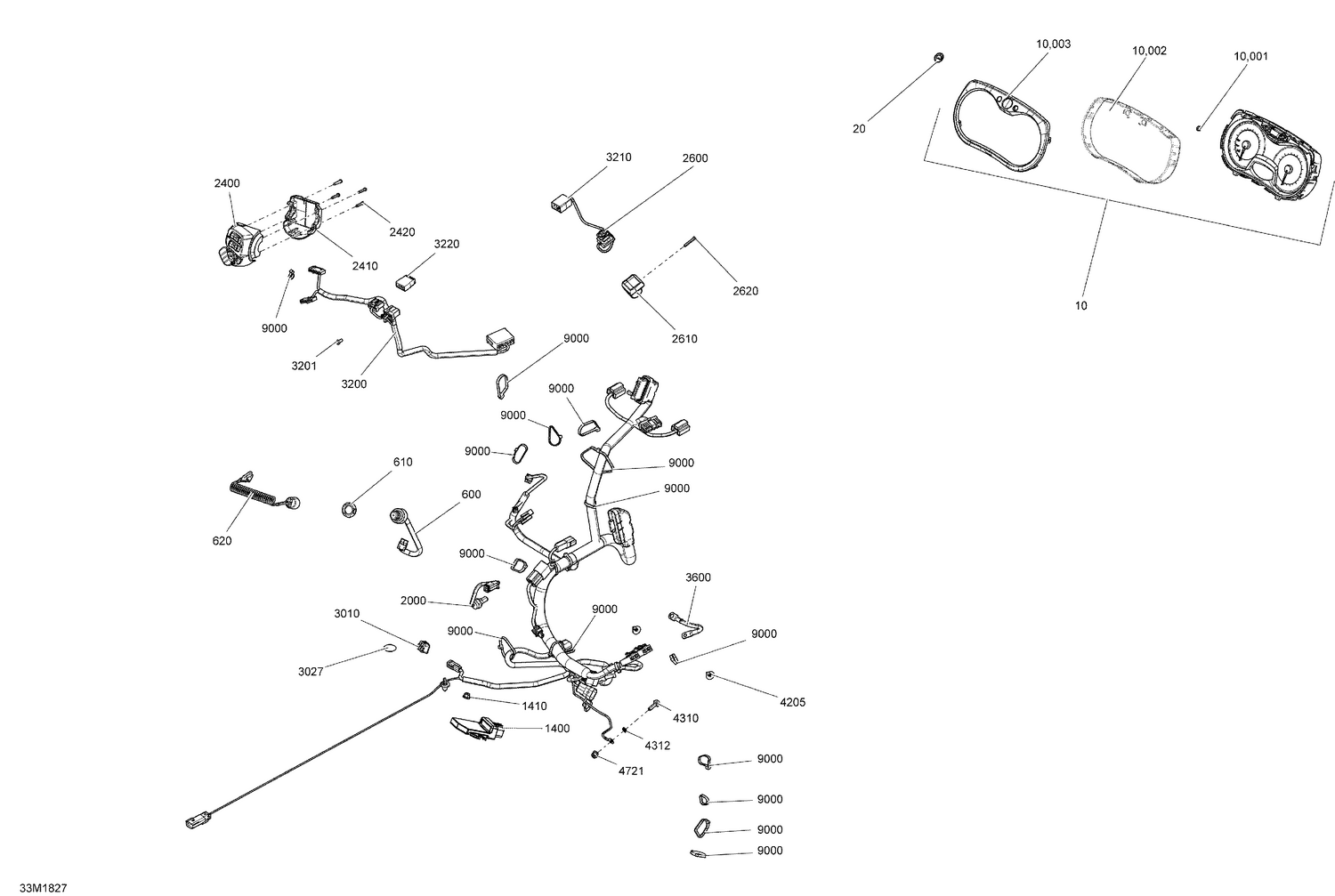

10- Electrical System MXZ, Renegade - 600 CARB
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 516006224 | BRP Logo 20MM x 2MM |
| 600 | 515177249 | DESS Switch |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178284 | DESS |
| 1400 | 515176364 | Voltage Regulator |
| 1410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2000 | 515177814 | Sensor Temperature |
| 2400 | 515177022 | LH Housing |
| 2410 | 515175926 | Switch Housing Plate |
| 2420 | 250000263 | Torx Screw #8-18 |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3010 | 515176681 | Lock |
| 3027 | 518325560 | Adhesive Patch |
| 3200 | 515177609 | Steering Wiring Harness |
| 3201 | 250000690 | Pan Screw Forming, 7500C |
| 3210 | 515175817 | Male Terminal Housing, 8 Circuits |
| 3220 | 515175662 | Male Terminal Housing, 6 Circuits |
| 3400 | 515177832 | Electrical Start Harnes |
| 3600 | 515177289 | Ground Wire |
| 4200 | 515177208 | Battery/Starter Wire |
| 4207 | 515177066 | Clip |
| 4210 | 232561414 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561414 | Elastic Stop Nut M6 |
| 4260 | 293450275 | Insert |
| 4300 | 515177264 | Battery Support |
| 4310 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4311 | 207661244 | Hex. Flange Screw M6 X 12 |
| 4312 | 234461608 | External Serrated Lock Washer 6 mm |
| 4313 | 250200082 | Flat Washer |
| 4340 | 515177266 | Battery Strip |
| 4350 | 278003012 | Starter Relay |
| 4360 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4361 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 4370 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4371 | 224061201 | Flat Washer |
| 4700 | 515176358 | Ground Wire |
| 4720 | 250200041 | Lock Washer Serrated M6 |
| 4721 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 4820 | 232561414 | Elastic Stop Nut M6 |
| 4830 | 710000495 | Protector Cap |
| 9000 | 293750001 | Tie Wrap 94 mm |
| 9000 | 293750002 | Tie Wrap 142 mm |
| 9000 | 293750008 | Tie Wrap 368 mm |
| 9000 | 414115200 | Tie-Rap 180 mm |
