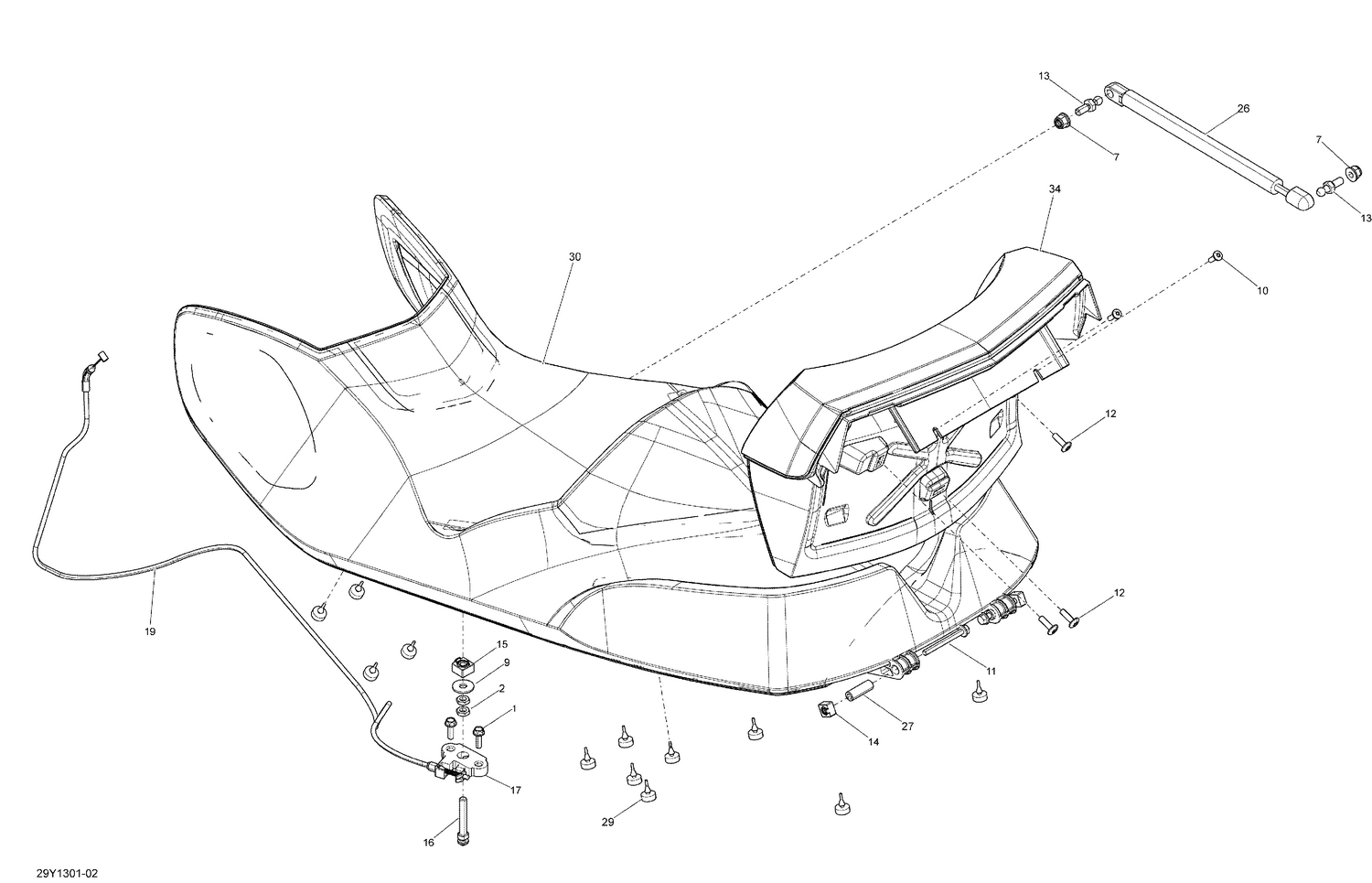

09- Seat
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 2 | 232180600 | Hex. Jam Nut M8 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 9 | 234082410 | Flat Washer 8 mm |
| 10 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 11 | 250000778 | Hex. Flange Screw M6 X 60 This part replaces 250000397. |
| 12 | 250000488 | Torx Truss Screw M6 X 20 |
| 13 | 250300039 | Ball Head Stud |
| 14 | 269500725 | M6 Nut Housing Ass'y |
| 15 | 269501943 | Elastic Nut Housing M8 This part replaces 269501387. |
| 16 | 705002223 | Lug |
| 17 | 705007379 | Latch This part replaces 705005904. |
| 19 | 708001743 | Seat Cable This part replaces 708000489. |
| 26 | 708000658 | Gaz Shock |
| 27 | 708000664 | Spacer |
| 29 | 708000759 | Rubber Stopper |
| 30 | 708001659 | Seat Ass'y This part replaces 708001218. |
