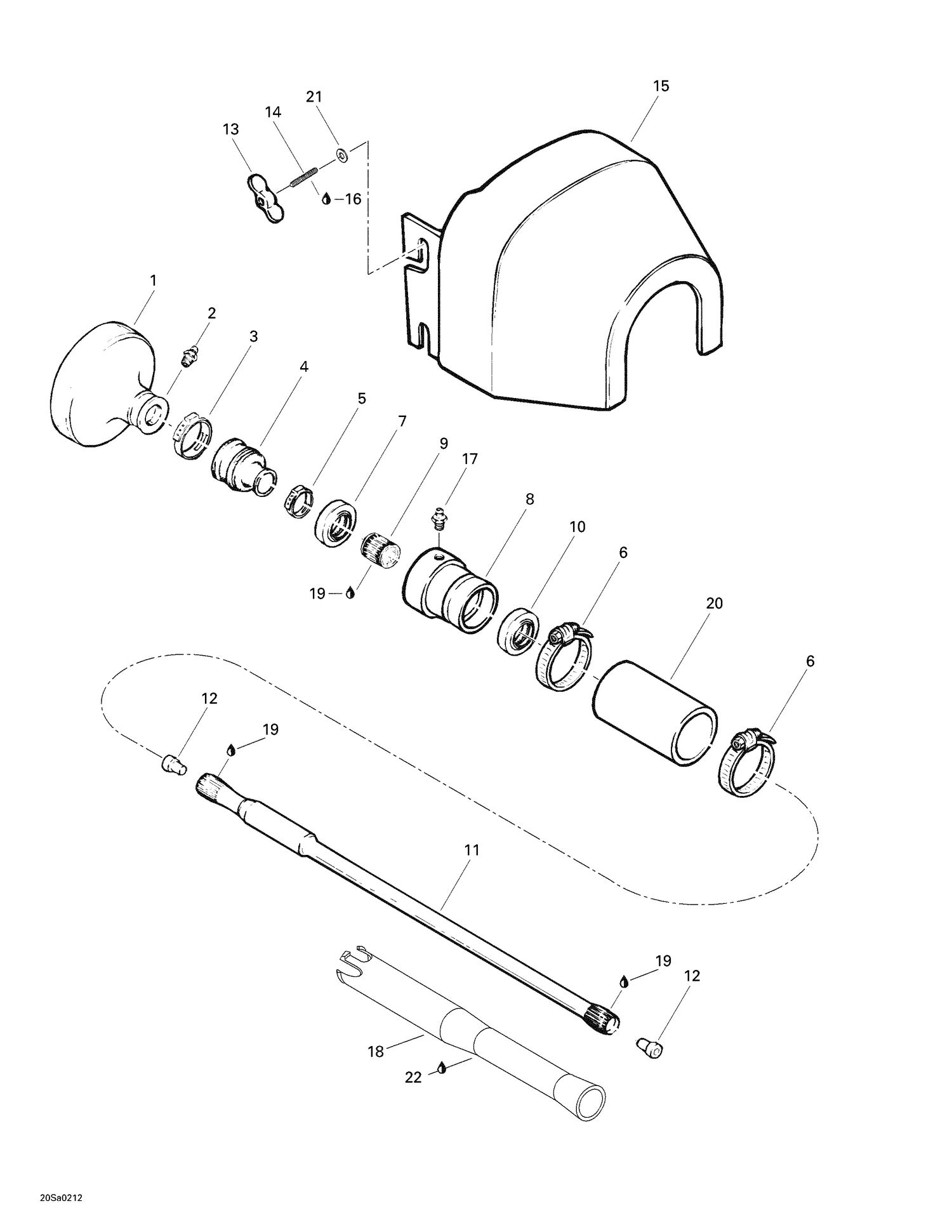

| Ref | Part Number | Description |
|---|
| 2 |
290499113 |
GREASE FITTING - Call your local BRP dealership |
| 3 |
293650021 |
OETIKER CLAMP - Call your local BRP dealership |
| 4 |
272000001 |
RUBBER BOOT - Call your local BRP dealership |
| 5 |
293650067 |
OETIKER CLAMP - Call your local BRP dealership |
| 6 |
293650035 |
Tridon Clamp |
| 7 |
267000094 |
Oil Seal This part replaces 293200065. |
| 8 |
272000024 |
SEAL CARRIER - Call your local BRP dealership |
| 9 |
293350007 |
NEEDLE BEARING SCE1416-L271/STD#E - Call your local BRP dealership |
| 10 |
293200012 |
DOUBLE LIP SEAL - Call your local BRP dealership |
| 11 |
272000044 |
Drive Shaft |
| 12 |
272000019 |
DRIVE SHAFT PLUG - Call your local BRP dealership |
| 13 |
232681100 |
Wing Nut M8 |
| 14 |
211300013 |
Stud M8 x 15 |
| 15 |
272000122 |
Flywheel Guard |
| 16 |
293800005 |
Loctite 271, 10 ml |
| 17 |
293550008 |
GREASE FITTING - Call your local BRP dealership |
| 18 |
204120131 |
Shaft Protector |
| 19 |
293550010 |
Synthetic Grease, 400 G |
| 20 |
271000311 |
PROTECTION HOSE - Call your local BRP dealership |
| 21 |
234082600 |
Flat Washer 8 mm, Stainless |
