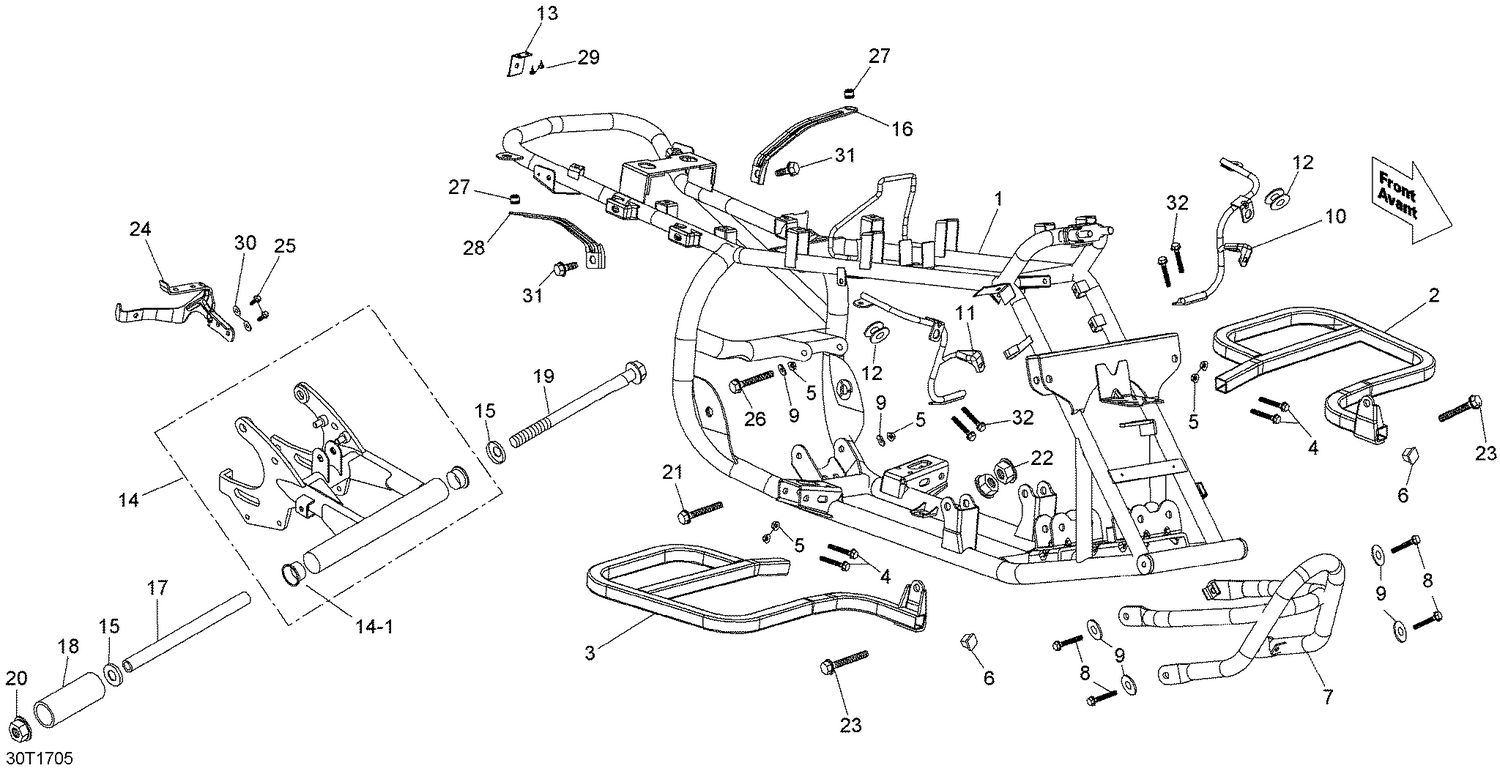

09- Frame
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V50100DGF360LL | FRAME COMP - Call your local BRP dealership |
| 2 | V50099DGF060BK | LH Footrest Support |
| 3 | V50107DGF050BK | RH Footrest Support |
| 4 | 207683544 | Hex. Flange Screw M8 X 35 |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | V64312DGF020LL | Plug |
| 7 | V50270DGF040BK | Front Bumper |
| 8 | V9600008014 | Hex. Flange Screw |
| 9 | 234181601 | Lock Washer 8 mm, Stainless |
| 10 | V50290DGF050BK | LH Head Lamp Support |
| 11 | V50280DGF050BK | RH Head Lamp Support |
| 12 | V15235DGF030 | Rubber Cushion |
| 13 | Not | Available As Spare Part - Non Applicable |
| 14 | V52370DGF110 | Swing Arm |
| 15 | V11400MAA000 | Swing Arm Seal Cover |
| 16 | V50260DGF050BK | LH Upper Fixed Plate |
| 17 | V44170MAA000 | Swing Arm Spacer |
| 18 | V53436MAA020LL | Rubber Sleeve |
| 19 | V9600014290010LL | Hex. Flange Bolt |
| 20 | 232571414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 21 | V9600008100 | Hex. Flange Screw |
| 22 | 232501416 | Elastic Flange Nut M10 |
| 23 | V958211006090L | Hex. Flange Bolt |
| 24 | V50268DGF040 | Chain Cover Braket |
| 25 | 207661244 | Hex. Flange Screw M6 X 12 |
| 26 | V9600108125 | Hex. Flange Screw |
| 27 | V85278DGF020LL | Rubber Cushion |
| 28 | V50261DGF050BK | RH Upper Fixed Plate |
| 29 | Not | Available As Spare Part - Non Applicable |
| 30 | 234161601 | Lock Washer Helical M6 |
| 31 | 207681244 | Hex. Flange Screw |
