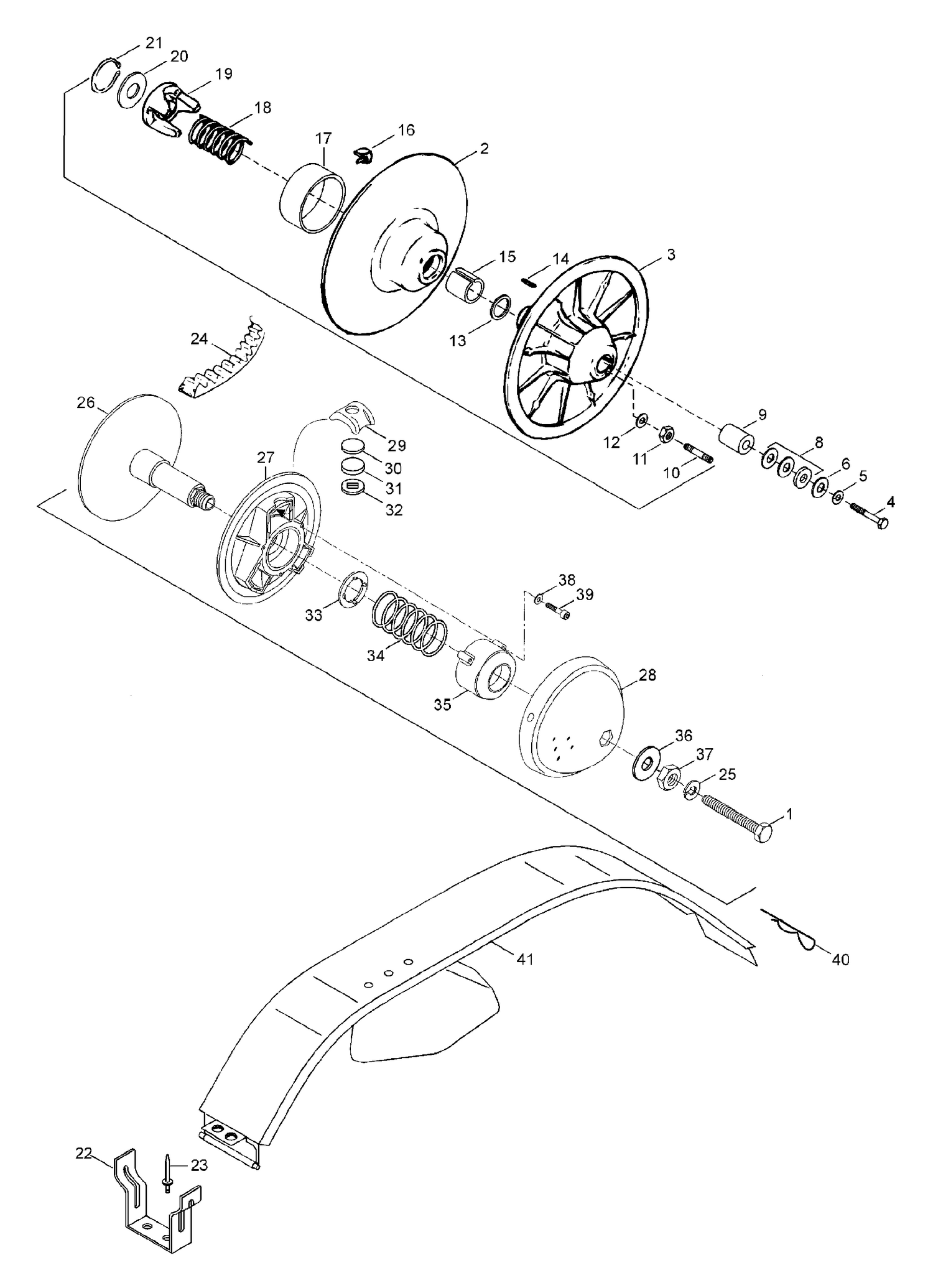

05- Clutch
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 40800 | Screw |
| 2 | 504143400 | Sliding pulley |
| 3 | 504141600 | Fixed pulley |
| 4 | 40088 | Screw M8x70 |
| 5 | 20014 | Lock washer |
| 6 | 546336 | Washer |
| 8 | 3125351 | Washer |
| 9 | 546335 | Sleeve |
| 10 | 206263044 | Allen skruv M6x30 |
| 11 | 33010 | Lock Nut M6 (1=10Pcs) |
| 12 | 20003 | Washer |
| 13 | 504141900 | Thrust washer |
| 14 | 414820800 | Key |
| 15 | 415011200 | BUSHING - Call your local BRP dealership |
| 16 | 414918000 | CAM SLIDER SHOE - Call your local BRP dealership |
| 17 | 414876600 | GARLOCK BUSHING - Call your local BRP dealership |
| 18 | 414558900 | RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 19 | 504096000 | Cam 36 |
| 20 | 514141800 | Plate |
| 21 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 22 | 518202100 | Fastening |
| 23 | 36083 | Rivet |
| 24 | 414633800 | Driven belt |
| 25 | 20024 | Lock washer |
| 26 | 417121200 | Fixed half pulley |
| 27 | 417121300 | Sliding half pulley |
| 28 | 417125100 | Domed cup |
| 29 | 417118100 | CENTRIFUGE BLOCK - Call your local BRP dealership |
| 30 | 417114400 | ADJUSTMENT WEIGH - Call your local BRP dealership |
| 31 | 417120400 | ADJUSTMENT WEIGH - Call your local BRP dealership |
| 32 | 417114500 | CAPSULE - Call your local BRP dealership |
| 33 | 417116200 | Spring seat |
| 34 | 1471415 | Spring, violet |
| 35 | 417121400 | Spring cover |
| 36 | 417122400 | Washer |
| 37 | 417118300 | NUT - Call your local BRP dealership |
| 38 | 420245310 | Lock washer |
| 39 | 222964066 | Screw M6x40 |
| 40 | 5442726 | Pin |
