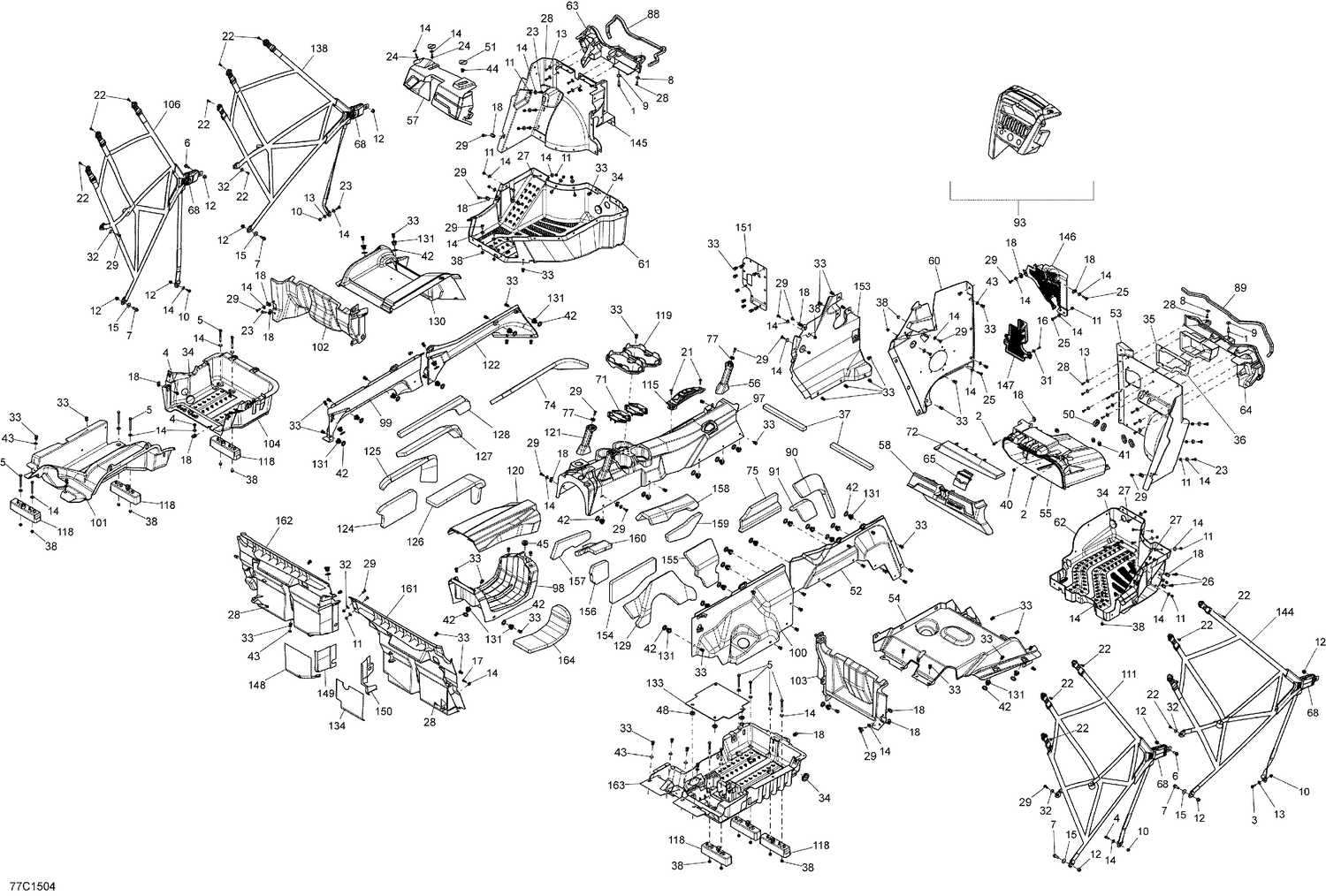

09- Cab Interior _77C1504
Parts (108)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207162544 | Hex. Screw M6 X 25 |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207662054 | Hex. Flange Screw M6 X 20 |
| 5 | 207667056 | Hex. Flange Screw M6 X 70 |
| 7 | 207682534 | Hex. Flange Screw M8 X 25 |
| 8 | 224060201 | Flat Washer |
| 9 | 224061201 | Flat Washer |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 233261494 | Hex. Flange Elastic Nut M6 |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 |
| 13 | 234062410 | Flat Washer 6 mm |
| 14 | 234062670 | Stainless Steel Flat Washer |
| 15 | 234082410 | Flat Washer 8 mm |
| 16 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 17 | 241152060 | Hex. Flange Screw K50 X 20 |
| 18 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 21 | 250000728 | Torx Screw M6 X 25 |
| 22 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 23 | 250000284 | Torx Screw M6 x 25 |
| 24 | 250000297 | Truss Head Torx Screw K50 X 20 |
| 25 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 26 | 250000807 | Torx Truss Screw M6 X 25 This part replaces 250000630. |
| 27 | 250000712 | Torx Screw M6 X 20 |
| 28 | 250000720 | Torx Screw K50 X 16 |
| 29 | 250000722 | Torx Screw M6 X 20 |
| 31 | 250200025 | Washer M5 |
| 32 | 250200040 | Flat Washer |
| 33 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 34 | 293250242 | Rubber Cover |
| 35 | 293250252 | Upper Seal |
| 36 | 293250253 | Bottom Seal |
| 37 | 293250318 | STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 38 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 40 | 293830005 | Rubber Bumper |
| 41 | 414859400 | CAP - Call your local BRP dealership |
| 42 | 503189273 | Washer |
| 43 | 506151252 | Washer |
| 44 | 517302785 | Edge Clip |
| 45 | 517303756 | Grommet |
| 48 | 705003264 | Grommet |
| 50 | 705003668 | Oblong Grommet |
| 51 | 705003841 | Support Plate |
| 52 | 707900002 | RH Side Console |
| 53 | 707900004 | RH Front Floor |
| 54 | 707900006 | RH Under Seat Plate |
| 56 | 707900011 | Passenger Handle |
| 57 | 715001250 | Dashboard Ass'y |
| 58 | 707900221 | LUGGAGE COVER KIT - Call your local BRP dealership |
| 61 | 707900022 | LH Lower Floor |
| 62 | 707900023 | RH Lower Floor |
| 63 | 707900029 | SUPPORT_PANEL LH - Call your local BRP dealership |
| 64 | 707900030 | SUPPORT_PANEL RH - Call your local BRP dealership |
| 65 | 707900031 | Latch |
| 68 | 707900035 | Buckle |
| 71 | 707900036 | Cup Retainer |
| 72 | 707900062 | Trim Glove Box |
| 74 | 707900621 | LH Lower Lateral Console Foam This part replaces 707900044. |
| 75 | 707900622 | RH Lateral Console Foam This part replaces 707900045. |
| 77 | 707900048 | Connector Tube |
| 88 | 219704365 | Was 293200017 Neoprene Seal |
| 89 | 219704365 | Was 293200017 Neoprene Seal |
| 90 | 707900623 | RH Lateral Console Foam This part replaces 707900055. |
| 91 | 707900624 | RH Lateral Console Foam This part replaces 707900056. |
| 97 | 715002914 | CENTRAL CONSOLE KIT - Call your local BRP dealership This part replaces 715002193. |
| 98 | 707900075 | Rear Central Console |
| 99 | 707900298 | LH REAR CONSOLE PANEL - Call your local BRP dealership |
| 100 | 707900080 | RH Rear Console Panel |
| 101 | 707900081 | LH REAR BOTTOM PAN - Call your local BRP dealership |
| 102 | 707900082 | LH Rear Upper Floor Cover |
| 103 | 707900083 | Seat Cover |
| 104 | 707900084 | LH MID FLOOR - Call your local BRP dealership |
| 115 | 707900088 | Shift Lever Indicator |
| 118 | 707900099 | Support Plate |
| 119 | 707900100 | Cup Holder |
| 120 | 707900229 | Rear Console Cover Kit |
| 121 | 707900103 | Handle |
| 122 | 707900001 | LH Side Console |
| 124 | 707900116 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 125 | 707900117 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 126 | 707900118 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 127 | 707900119 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 128 | 707900626 | LH Rear Lateral Foam This part replaces 707900120. |
| 129 | 707900121 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 130 | 707900130 | Under Seat Cover |
| 131 | 707900133 | Insert |
| 133 | 707900163 | Battery Cover |
| 134 | 707900167 | Heat Shield |
| 138 | 707900237 | Front LH Safety Net This part replaces 707900171. |
| 144 | 707900238 | Front RH Safety Net This part replaces 707900172. |
| 145 | 707900175 | LH Front Upper Floor |
| 146 | 707900178 | Grille |
| 147 | 707900180 | Grille |
| 148 | 707900182 | Heat Shield |
| 149 | 707900183 | Heat Shield |
| 150 | 707900184 | Heat Shield |
| 151 | 707900192 | Deflector |
| 153 | 707900193 | Front Side Dash Panel |
| 154 | 707900205 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 155 | 707900627 | RH Rear Lateral Foam This part replaces 707900206. |
| 156 | 707900209 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 157 | 707900628 | Front Central Foam This part replaces 707900210. |
| 158 | 707900629 | Front Central Foam This part replaces 707900211. |
| 159 | 707900630 | Front Central Foam This part replaces 707900212. |
| 160 | 707900213 | INSULATION_ACOUSTIC - Call your local BRP dealership |
| 161 | 707900219 | DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership |
| 162 | 707900220 | DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership |
| 163 | 707900670 | RH Lower Rear Floor This part replaces 707900231. |
